Eselter

[BUG] Wrong aspect ratio on home videos

Recommended Posts

Eselter
Posted (edited)

I have problem with wrong aspect ratio in emby tizen app (v1.0.82).
On web browser and any other player (VLC, potplayer, plex, windows media player) problem doesn't apear.
Thumbnail also is ok on tizen app.

General
Complete name                            : ...\VID_20190907_123845.mp4
Format                                   : MPEG-4
Format profile                           : Base Media / Version 2
Codec ID                                 : mp42 (isom/mp42)
File size                                : 23.9 MiB
Duration                                 : 15 s 353 ms
Overall bit rate                         : 13.1 Mb/s
Encoded date                             : UTC 2019-09-07 09:39:01
Tagged date                              : UTC 2019-09-07 09:39:01
com.android.version                      : 9

Video
ID                                       : 2
Format                                   : AVC
Format/Info                              : Advanced Video Codec
Format profile                           : High@L4
Format settings                          : CABAC / 1 Ref Frames
Format settings, CABAC                   : Yes
Format settings, Reference frames        : 1 frame
Format settings, GOP                     : M=1, N=25
Codec ID                                 : avc1
Codec ID/Info                            : Advanced Video Coding
Duration                                 : 15 s 353 ms
Bit rate                                 : 13.0 Mb/s
Width                                    : 1 080 pixels
Height                                   : 1 920 pixels
Display aspect ratio                     : 0.563
Rotation                                 : 270°
Frame rate mode                          : Variable
Frame rate                               : 30.091 FPS
Minimum frame rate                       : 7.242 FPS
Maximum frame rate                       : 2 812.500 FPS
Standard                                 : NTSC
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Progressive
Bits/(Pixel*Frame)                       : 0.208
Stream size                              : 23.8 MiB (99%)
Title                                    : VideoHandle
Language                                 : English
Encoded date                             : UTC 2019-09-07 09:39:01
Tagged date                              : UTC 2019-09-07 09:39:01
Color range                              : Limited
Color primaries                          : BT.601 PAL
Transfer characteristics                 : BT.601
Matrix coefficients                      : BT.601
Codec configuration box                  : avcC

Audio
ID                                       : 1
Format                                   : AAC LC
Format/Info                              : Advanced Audio Codec Low Complexity
Codec ID                                 : mp4a-40-2
Duration                                 : 15 s 350 ms
Bit rate mode                            : Constant
Bit rate                                 : 64.0 kb/s
Channel(s)                               : 1 channel
Channel layout                           : C
Sampling rate                            : 44.1 kHz
Frame rate                               : 43.066 FPS (1024 SPF)
Compression mode                         : Lossy
Stream size                              : 120 KiB (0%)
Title                                    : SoundHandle
Language                                 : English
Encoded date                             : UTC 2019-09-07 09:39:01
Tagged date                              : UTC 2019-09-07 09:39:01





Edited by Eselter
add emby tizen app ver and eng version of media info

Share this post


Link to post
Share on other sites
Eselter

Is seems like video is rotated but display resolution is not.

Share this post


Link to post
Share on other sites
Happy2Play

To me the web client looks like it is stretching the video.  Looking at those two images I would think the TV is correct 270degree image from like a phone.

Share this post


Link to post
Share on other sites
Eselter

Maybe this shot will be better ;)



Share this post


Link to post
Share on other sites
Happy2Play

Yes that one shows the opposite to me.  But will have to wait on one of the Samsung gurus to comment.

Share this post


Link to post
Share on other sites
SamES

I think I can see why it is displaying it wrong, but as @Happy2Play has commented, something seems backwards.


Since that looks like a short video, could you please share a copy of it with me via PM and I will see if I can work out what we need to do to make this display correctly.

Share this post


Link to post
Share on other sites
Eselter
Posted (edited)

Ok, I send you a massage with link to google drive.

Edited by Eselter

Share this post


Link to post
Share on other sites
SamES

The issue with this video is that it has a rotation set in the metadata, so players like vlc and modern browsers adjust the aspect ratio based on this rotation flag.

https://blog.addpipe.com/mp4-rotation-metadata-in-mobile-video-files/

22:40:51.129     Stream #0:1(eng): Video: h264 (High) (avc1 / 0x31637661), yuv420p(tv, smpte170m/bt470bg/smpte170m), 1080x1920, 12983 kb/s, SAR 1:1 DAR 9:16, Level 40, 30.09 fps, 90k tbr, 90k tbn, 180k tbc (default)
22:40:51.129     Metadata:
22:40:51.129       rotate          : 270
22:40:51.129       creation_time   : 2019-09-07T09:39:01.000000Z
22:40:51.129       handler_name    : VideoHandle
22:40:51.129     Side data:
22:40:51.129       displaymatrix: rotation of 90.00 degrees

In the Tizen app we don't see this rotation flag, so the rotation to the aspect ratio (9:16 -> 16:9) is not being applied.

To correct this, we would need the rotate metadata.  @Luke?  Does this sound correct?  I don't think there's any other way to handle this

  • Like 1

Share this post


Link to post
Share on other sites
Luke

Yes that sounds right.

Share this post


Link to post
Share on other sites
Eselter

Any news about this bug?

Problem still exist on 1.0.84.

Share this post


Link to post
Share on other sites
SamES
On 20/09/2020 at 09:49, Eselter said:

Any news about this bug?

Problem still exist on 1.0.84.

I'm working on something that will help in the short term.  Hopefully in the next usb release.

  • Like 2

Share this post


Link to post
Share on other sites
DJX

I have the same issue. Aspect ratio of files is fine using DLNA but videos are stretched to fill the whole t.v. screen when using emby app, so app specific. Will await the USB release!

Share this post


Link to post
Share on other sites
SamES
2 hours ago, DJX said:

I have the same issue. Aspect ratio of files is fine using DLNA but videos are stretched to fill the whole t.v. screen when using emby app, so app specific. Will await the USB release!

This sounds like a different issue.  Could you please post the mediainfo for a file?

Share this post


Link to post
Share on other sites
DJX
8 hours ago, SamES said:

This sounds like a different issue.  Could you please post the mediainfo for a file?

Please can you give me steps on how to obtain it? It seems to be all the videos I've taken with my phone (Samsung s7)

Share this post


Link to post
Share on other sites
Luke
34 minutes ago, DJX said:

Please can you give me steps on how to obtain it? It seems to be all the videos I've taken with my phone (Samsung s7)

Just copy and paste the media info section from the bottom of the web app detail screen.

Share this post


Link to post
Share on other sites
DJX
17 minutes ago, Luke said:

Just copy and paste the media info section from the bottom of the web app detail screen.

Okay - got it!

I notice when I play via the webapp, with the settings dial on the right, its on Auto aspect ratio, and it plays fine (black on either side of video)

On the TV, its like its in "fill" mode.

Video

Title SD H264
Codec H264
Codec Tag avc1
AVC Yes
Profile Baseline
Level 30
Resolution 640x352
Aspect Ratio 20:11
Interlaced No
Framerate 30.311
Bitrate 2,062 kbps
Colour Primaries bt470bg
Bit Depth 8 bit
Pixel Format yuv420p
Reference Frames 1
NAL 4

Audio

Title Und AAC stereo (Default)
Language und
Codec AAC
Codec Tag mp4a
Profile LC
Layout stereo
Channels 2 ch
Bitrate 153 kbps
Sample Rate 48,000 Hz
Default Yes
Container mp4
Path \\ServerName\Media\Misc\Dates\2019\June\VID-20190602-WA0020.mp4
Size 2MB

Share this post


Link to post
Share on other sites
SamES

So this should be display as portrait, (tall and narrow) instead of landscape.  Correct?

@Luke, is it possible to bring in the rotation parameter as part of the stream probe, or is that not likely to happen?  The issue is that these items have a rotation angle, and the html video player rotates the aspect ratio automatically based on this angle, but in the Tizen avplayer we will need to rotate this manually.   For the original case, adding the Fill option will resolve this as the video needs to go from portrait to landscape, but this example I suspect needs to go the other way, which is not so easy without the rotate angle

Share this post


Link to post
Share on other sites
DJX
1 hour ago, SamES said:

So this should be display as portrait, (tall and narrow) instead of landscape.  Correct?

@Luke, is it possible to bring in the rotation parameter as part of the stream probe, or is that not likely to happen?  The issue is that these items have a rotation angle, and the html video player rotates the aspect ratio automatically based on this angle, but in the Tizen avplayer we will need to rotate this manually.   For the original case, adding the Fill option will resolve this as the video needs to go from portrait to landscape, but this example I suspect needs to go the other way, which is not so easy without the rotate angle



 Yes, it should - you are correct!

Just to confirm, the video itself is oriented correctly, in terms of that I took it in a portrait manner, but when its being played via emby, the video is being stretched/filled to the whole screen.

Share this post


Link to post
Share on other sites
SamES

Thanks for confirming.  You are correct, the video is the right orientation, but the aspect ratio needs to rotate from 20:11 to 11:20.  Do do this, we need to know that it has a rotation factor.

Share this post


Link to post
Share on other sites
DJX

Alright, we'll leave it in yours and the teams capable hands!

On a positive note, its only my second day of using emby and I'm very pleased with it otherwise! :)

  • Like 2

Share this post


Link to post
Share on other sites
SamES
On 20/09/2020 at 09:49, Eselter said:

Any news about this bug?

Problem still exist on 1.0.84.

@Eselter Can you please try the latest USB release?  It isn't resolved, but from the playback settings menu you can now change the Aspect ratio to Fill which will expand the video to full screen.  If you have the basic remote (not the smart remote) you can also press the Pic.Size button to toggle this.

It's not a complete solution, but should help for now.

Share this post


Link to post
Share on other sites
Eselter

Fill whole screen working fine but this only works fine with horizontal video with the same aspect ratio like TV.

The biggest problem now is vertical video witch is displaying horizontal on TV (instant of 9:16 is 16:9) and this solution don't help in this case.

Share this post


Link to post
Share on other sites
SamES
1 hour ago, Eselter said:

Fill whole screen working fine but this only works fine with horizontal video with the same aspect ratio like TV.

The biggest problem now is vertical video witch is displaying horizontal on TV (instant of 9:16 is 16:9) and this solution don't help in this case.

Can you please attach a photo showing showing this?  Does it just need resizing, or does it need to be rotated as well?

Share this post


Link to post
Share on other sites
Eselter
Posted (edited)

Only resizing. The same case like in 1st post but now in vertical video.

TV (I know it looks fine but it isn't):

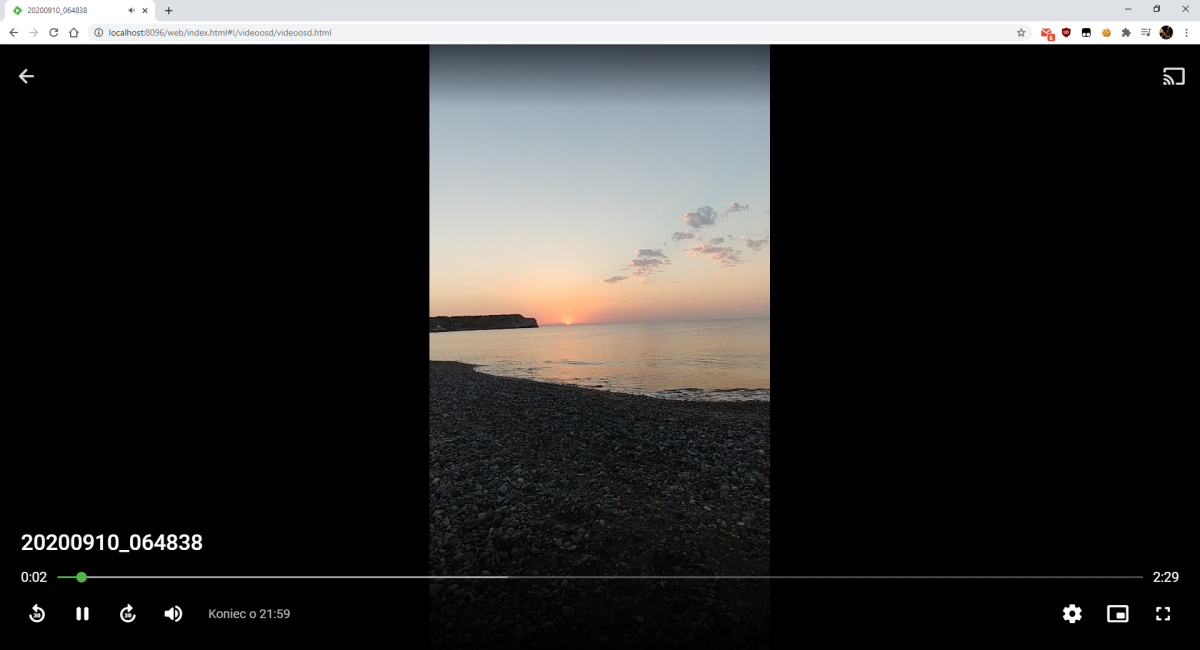

Browser (this is correct):

Media info:



Width                                    : 1 920 pixels
Height                                   : 1 080 pixels
Display aspect ratio                     : 16:9
Rotation                                 : 90°
General
Complete name                            : J:\Zdjęcia\Rodos 2020-09-07\1 tydzień\20200910_064838.mp4
Format                                   : MPEG-4
Format profile                           : Base Media / Version 2
Codec ID                                 : mp42 (isom/mp42)
File size                                : 312 MiB
Duration                                 : 2 min 32 s
Overall bit rate                         : 17.2 Mb/s
Performer                                : LG-H930
Encoded date                             : UTC 2020-09-10 03:51:13
Tagged date                              : UTC 2020-09-10 03:51:13
xyz                                      : +36.2463+028.1640/
com.android.version                      : 9

Video
ID                                       : 1
Format                                   : AVC
Format/Info                              : Advanced Video Codec
Format profile                           : High@L4
Format settings                          : CABAC / 1 Ref Frames
Format settings, CABAC                   : Yes
Format settings, Reference frames        : 1 frame
Format settings, GOP                     : M=1, N=30
Codec ID                                 : avc1
Codec ID/Info                            : Advanced Video Coding
Duration                                 : 2 min 32 s
Source duration                          : 2 min 32 s
Bit rate                                 : 17.0 Mb/s
Width                                    : 1 920 pixels
Height                                   : 1 080 pixels
Display aspect ratio                     : 16:9
Rotation                                 : 90°
Frame rate mode                          : Variable
Frame rate                               : 30.000 FPS
Minimum frame rate                       : 24.064 FPS
Maximum frame rate                       : 30.447 FPS
Standard                                 : NTSC
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Progressive
Bits/(Pixel*Frame)                       : 0.273
Stream size                              : 309 MiB (99%)
Source stream size                       : 309 MiB (99%)
Title                                    : VideoHandle
Language                                 : English
Encoded date                             : UTC 2020-09-10 03:51:13
Tagged date                              : UTC 2020-09-10 03:51:13
Color range                              : Limited
colour_range_Original                    : Full
Color primaries                          : BT.709
colour_primaries_Original                : BT.601 NTSC
Transfer characteristics                 : BT.709
transfer_characteristics_Original        : BT.601
Matrix coefficients                      : BT.709
matrix_coefficients_Original             : BT.601
mdhd_Duration                            : 152414
Codec configuration box                  : avcC

Audio
ID                                       : 2
Format                                   : AAC LC
Format/Info                              : Advanced Audio Codec Low Complexity
Codec ID                                 : mp4a-40-2
Duration                                 : 2 min 32 s
Bit rate mode                            : Constant
Bit rate                                 : 156 kb/s
Channel(s)                               : 2 channels
Channel layout                           : L R
Sampling rate                            : 48.0 kHz
Frame rate                               : 46.875 FPS (1024 SPF)
Compression mode                         : Lossy
Stream size                              : 2.84 MiB (1%)
Title                                    : SoundHandle
Language                                 : English
Encoded date                             : UTC 2020-09-10 03:51:13
Tagged date                              : UTC 2020-09-10 03:51:13



Edited by Eselter

Share this post


Link to post
Share on other sites
Eselter
Posted (edited)

Also, all is fine when I play video from usb on TV in default tizen video player and also is fine when using emby dlna server.

Only app which has problem is emby client for tizen.

Edited by Eselter
  • Like 1

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

×
×
  • Create New...
