[amck24 5]

Nah, I just have the one router.

The shield is on Wi-Fi.

MAC - 3C:6D:66:A4:CC:59

Edited Sunday at 03:39 PM by amck24

[sa2000 720]

9 minutes ago, amck24 said:

MAC - 3C:6D:66:A4:CC:59

ok - that is already in your dhcp reservation set as showing in your screenshot. I presume if you click edit, it will show 192.168.0.6

so the port forward is already in place for 8096 to 192.168.0.6

Launch Emby server on the shield and then in a browser on a PC go to https://canyouseeme.org and enter 8096 in the port to check - if successful then you can test on a phone with just cellular in a browser and go to url of http://your-external-ip-address:8096





[amck24 5]

[sa2000 720]

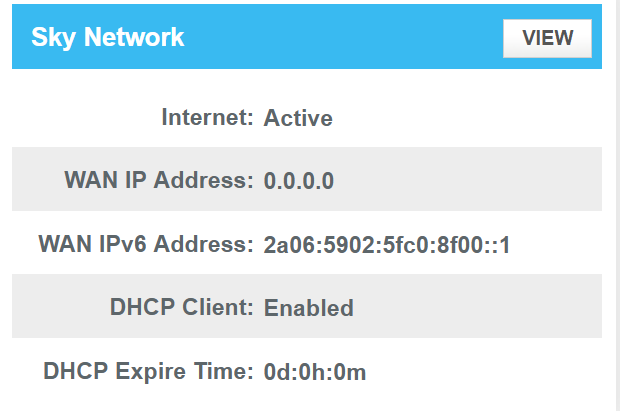

Login to your 192.168.0.1 router and see on the status page what it shows as the WAN / Public IP Address - is it the same as what canyouseeme.org is showing?

[amck24 5]

[sa2000 720]

maybe the issue is because it is ipv6 and not ipv4 - can you get Sky to switch you to ipv4 from ipv6

[amck24 5]

I will call them just now and get back to you

[amck24 5]

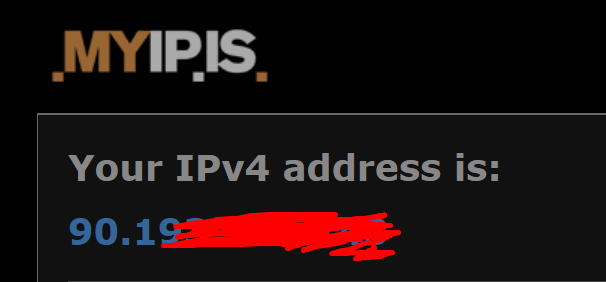

`Okay thats me on ipv4 now mate.

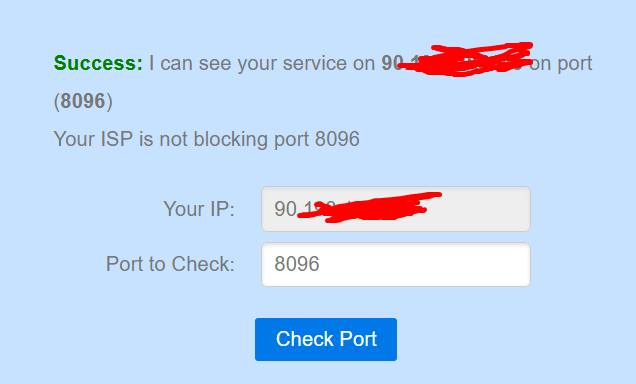

Success: I can see your service on 90.xxx.xxx.xxx on port (8096)



http://your-external-ip-address:8096 loads up too

Edited Sunday at 05:27 PM by sa2000
removed WAN IP Address

[speechles 2063]

50 minutes ago, sa2000 said:

Launch Emby server on the shield and then in a browser on a PC go to https://canyouseeme.org and enter 8096 in the port to check

The default https port for Emby is 8920.

[sa2000 720]

and - is emby server running on the shield and accessible on the local network through http://192.168.0.6:8096 from a PC ?

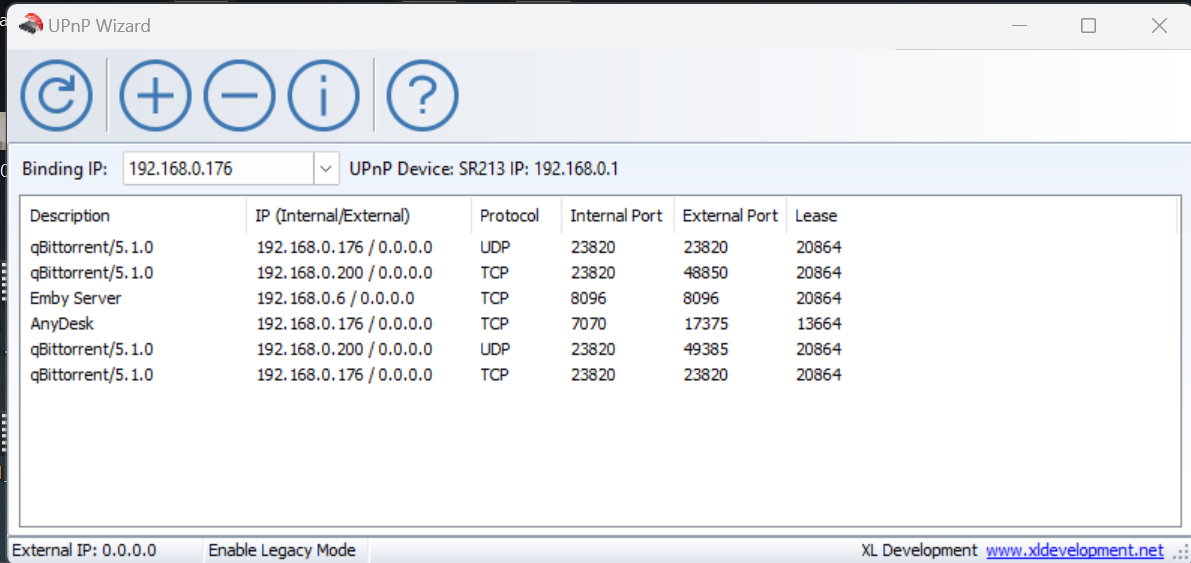

and is uPnP Wizaed relaunch now showing an external IP address and port forward of 8096 to 8096 for 192.168.0.6 ?

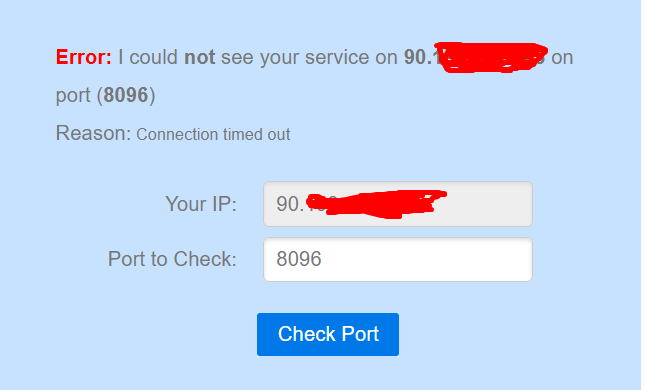

amd does the https://canyouseeme.org show the same public IP as that showing on the Sky Router and in uPnP wizard ? and is it still failing when checking 8096 ?



[sa2000 720]

Just now, speechles said:

The default https port for Emby is 8920.

yes but i did not expect @amck24to be using ssl certificates and https

@amck24is https secure connected enabled in emby server network settings?

[speechles 2063]

1 minute ago, sa2000 said:

yes but i did not expect @amck24to be using ssl certificates and https

@amck24is https secure connected enabled in emby server network settings?

But the port Emby would use when https is used would default to 8920. The can you see me URL is https. I would assume everything on the internet is using https. Everything except for exploitable hosts.

-> Sky uses a stateless alternative called MAP-T to share IPv4 addresses over IPv6, which behaves similarly to CGNAT

[sa2000 720]

1 minute ago, speechles said:

Sky uses a stateless alternative called MAP-T to share IPv4 addresses over IPv6, which behaves similarly to CGNAT

That should show up when check external ip address on the router against what canyouseeme is showing

If that is the case then would need to pay sky for a static ipv4 address



[amck24 5]

19 minutes ago, speechles said:

The default https port for Emby is 8920.

Error: I could not see your service on 90.xx.xx.xx on port (8920)

Emby server is loaded on the shield.

and - is emby server running on the shield and accessible on the local network through http://192.168.0.6:8096 from a PC ?

Yes

and is uPnP Wizaed relaunch now showing an external IP address and port forward of 8096 to 8096 for 192.168.0.6 ?

is https secure connected enabled in emby server network settings?

I can't find this on the network section?

There is no external IP on wizard.

Edited Sunday at 05:00 PM by sa2000
removed public ip

[sa2000 720]

2 minutes ago, speechles said:

The can you see me URL is https.



I don;t use https and this is checking the http port

[sa2000 720]

Just now, amck24 said:

I could not see your service on 90.xx.xx.xx on port (8920)

it is 8096 not 8920

5 minutes ago, amck24 said:

is https secure connected enabled in emby server network settings?

I can't find this on the network section?

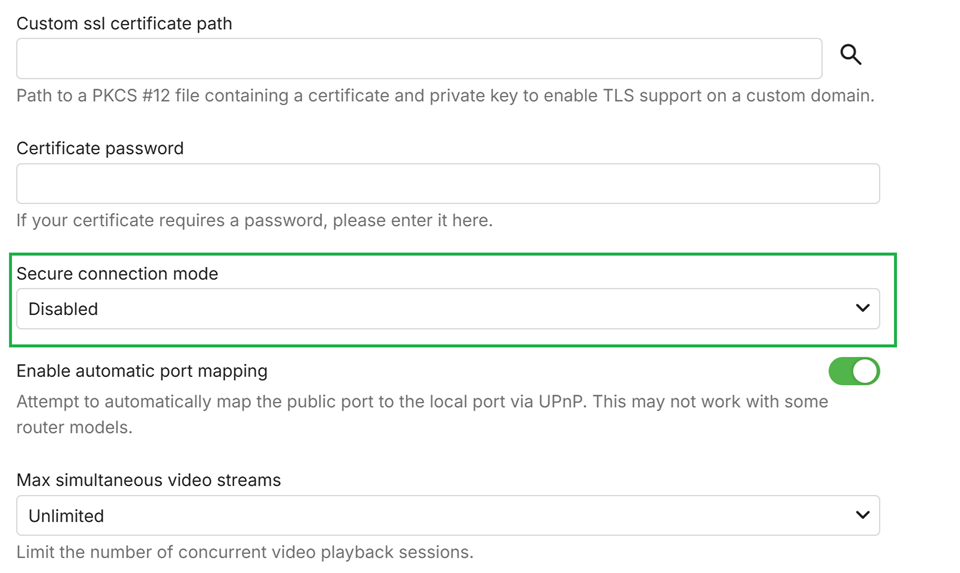

See Settings / Network





and is the WAN IP Address showing on the sky router the same as what canyouseeme.org shows?



[amck24 5]

Roger.

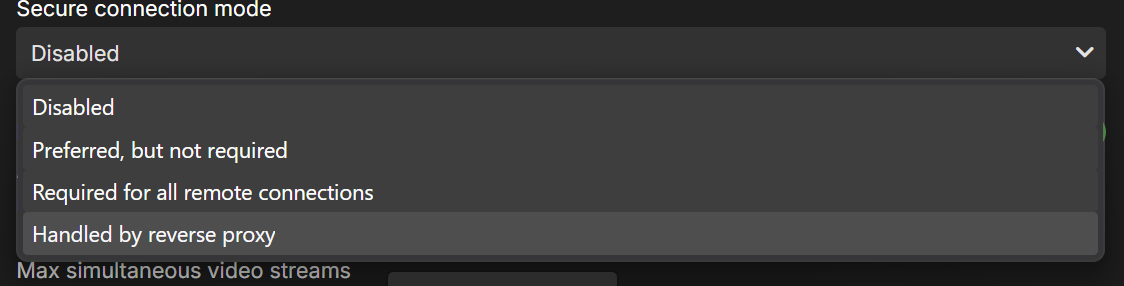

What do you want me to change it to?



[sa2000 720]

Just now, amck24 said:

what do you want me to change it to?

Do not change it - leave it as disabled because you would need to have an SSL Certificate if you enable it

[sa2000 720]

5 minutes ago, sa2000 said:

and is the WAN IP Address showing on the sky router the same as what canyouseeme.org shows?

?

[amck24 5]

Yes that's correct

[sa2000 720]

So the 90.xx.xx.xx IP address that can youseme,org showed is the same as what shows on the sky router ? could you send me by PM (Private Message) screenshots of both canyouseme.org test on 8096 and the sky router status page and also output from the following

on the windows PC, open cmd and type

tracetrt emby.tv

wait for it to complete then copy all the response lines and include in your PM



Edited Sunday at 05:20 PM by sa2000

[amck24 5]

I can't seem to log into the router now, it is saying server not found. Will probably need to reset the router

'tracetrt' is not recognized as an internal or external command,
operable program or batch file.



Edited Sunday at 05:25 PM by amck24

[sa2000 720]

51 minutes ago, amck24 said:

Okay thats me on ipv4 now mate.



Success: I can see your service on 90.xxxxxx on port (8096)



http://your-external-ip-address:8096 loads up too

I missed this post - so it worked ok then - and what followed was unnecessary !



[sa2000 720]

53 minutes ago, amck24 said:

`Okay thats me on ipv4 now mate.



Success: I can see your service on 90.xxx.xxx.xxx on port (8096)



http://your-external-ip-address:8096 loads up too

I see you edited the post after I read it to add the success

OK - let us rewind now to this time and go forward ignoring what followed



Next is - how are you trying to access the server remotely ? By "Add Server Manually" giving the public ip and 8096 or by Emby Connect ?

If by emby connect then go to server settings, open users and edit the user removing the emby connect email address, saving the change, then edit again and add it and save teh change. Then on the remote app, exit the app and relaunch and try again through emby connect

[amck24 5]

5 minutes ago, sa2000 said:

I missed this post - so it worked ok then - and what followed was unnecessary !



Ah no worries. So everything is sweet then?
