no picture / black screen while playing AV1 files on samsung tv's

[Gambitason 5]

Hi,



I am new to Emby and really like it.

There is a strange problem with the Samsung player though. When direct playing AV1 I get a black screen with audio while playing video.

When I direct play the same video it plays with picture but no sound.

When I lower the quality below the original file bitrate to start transcoding the media plays with sound and picture.

Any help would be appreciated



Samsung model number:

network QE75QE1CAUXXN but also remote QE50QE1CAUXXN

Samsung firmware version:

QE75QE1CAUXXN  = 2505.4

QE50QE1CAUXXN = unknown

Samsung Emby client version:

QE75QE1CAUXXN  = 1.8.0

QE50QE1CAUXXN = 1.8.0

Emby server version:

4.8.10.0



For any playback related issues also include the following:



Attach the server and any transcode logs during the time of playback:

logs.zip

Post a screenshot of the media info from the bottom of the web client:

logs.zip

[SamES 1004]

Does this occur with all av1 files, or just this example?

[Gambitason 5]

All AV1 files unfortunately.

[SamES 1004]

Can you please confirm the Tizen version, which you should be able to get from the TV About/Support option in the Settings menu

[Gambitason 5]

as you can see it is 2505. But I have reports that this behavior is on other Samsung tv's as well.

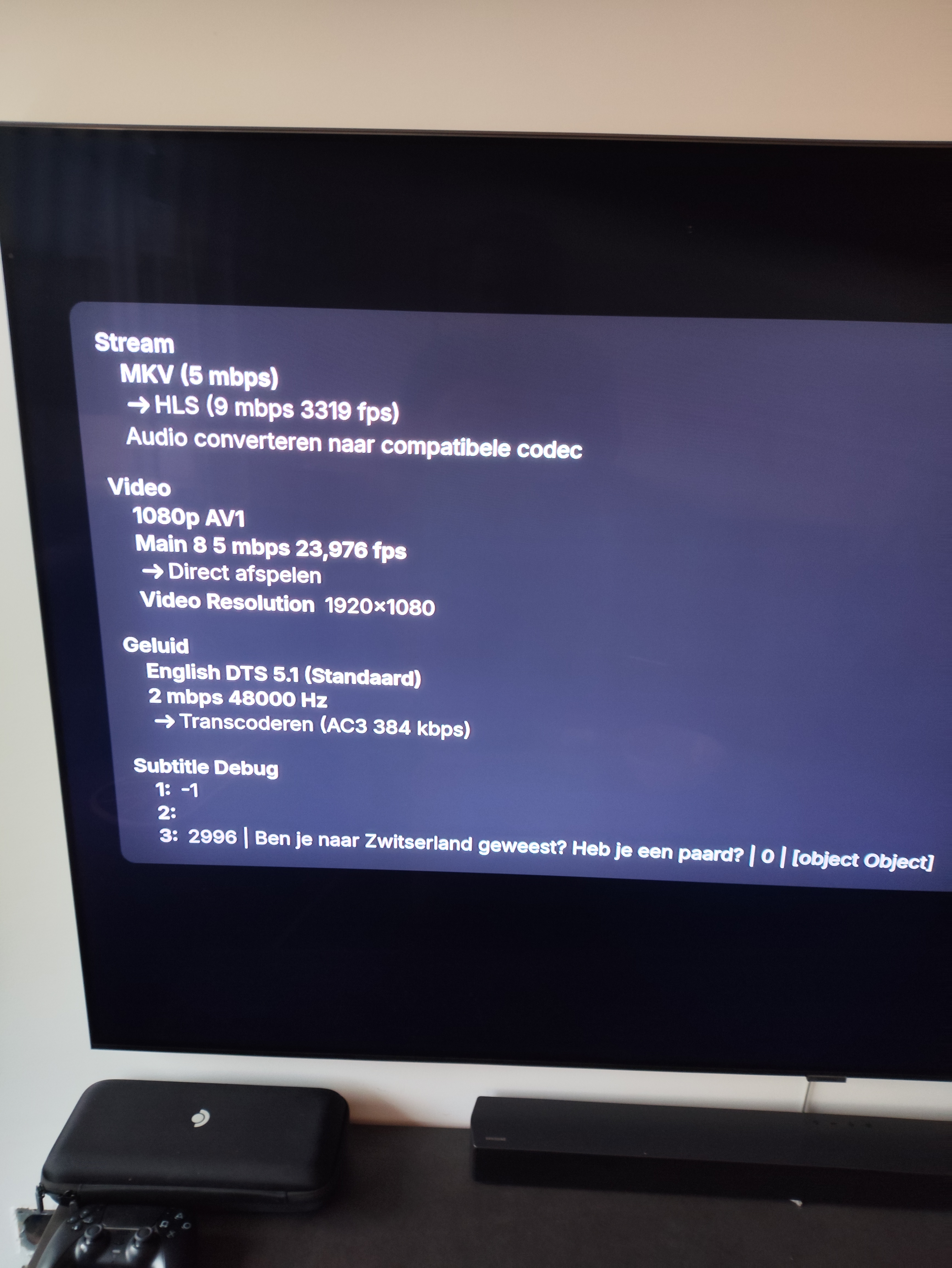

I added the stats for nerds as well so that you can see the exact behavior while playing.



[SamES 1004]

That’s the firmware version. On one of those options it should also give you the Tizen version

[Gambitason 5]

ah sorry about that. I hope this is what you asked for.

[alok1 13]

On 10/26/2024 at 7:58 PM, Gambitason said:

Samsung Emby client version:

QE75QE1CAUXXN  = 1.8.0

QE50QE1CAUXXN = 1.8.0

Is this the latest version from Samsung TV app store ?

[Gambitason 5]

Yes it is. Good question but all tv's where I have seen this problem have the latest version.

[SamES 1004]

I suspect the issue here is that DTS audio is causing the audio to be converted, but I'm not sure that av1 is working in the HLS stream with .ts segments that are currently being used.

 @Lukeis this likely the case?  A possible reference here: https://www.reddit.com/r/ffmpeg/comments/13ocph8/hls_segmentation_av1/





[Luke 40144]

16 hours ago, SamES said:

I suspect the issue here is that DTS audio is causing the audio to be converted, but I'm not sure that av1 is working in the HLS stream with .ts segments that are currently being used.

 @Lukeis this likely the case?  A possible reference here: https://www.reddit.com/r/ffmpeg/comments/13ocph8/hls_segmentation_av1/





You may want to remove AV1 from hls video codecs.

[Gambitason 5]

@SamESThat sounds great thanks for your input!

I could use some help here. After searching I figured out what HLS is.

My question here @Lukehow do I go about removing AV1 from the HLS used by Emby? Is that done in the DLNA profile settings?

[SamES 1004]

10 hours ago, Gambitason said:

@SamESThat sounds great thanks for your input!

I could use some help here. After searching I figured out what HLS is.

My question here @Lukehow do I go about removing AV1 from the HLS used by Emby? Is that done in the DLNA profile settings?

I'll make a change to the client which will ensure av1 gets automatically transcoded.  It's not something that you can change.

[Gambitason 5]

On 11/4/2024 at 10:16 PM, SamES said:

I'll make a change to the client which will ensure av1 gets automatically transcoded.  It's not something that you can change.

Thats great!

I am thankfull you are going to solve this in the next version. is there an indication on when the next release will be?

The DLNA profiles look interesting. If there was an option to make device profiles for all forms of playback we could manage this on the server side or did I misunderstand how DLNA profiles work?

Thanks for your help so far!

[Luke 40144]

8 minutes ago, Gambitason said:

Thats great!

I am thankfull you are going to solve this in the next version. is there an indication on when the next release will be?

The DLNA profiles look interesting. If there was an option to make device profiles for all forms of playback we could manage this on the server side or did I misunderstand how DLNA profiles work?

Thanks for your help so far!

The dlna profiles are only for the dlna features. They don’t affect how Emby apps play.

[SamES 1004]

6 hours ago, Gambitason said:

I am thankfull you are going to solve this in the next version. is there an indication on when the next release will be?

Yes, it should be in the next release.

Are you using the USB or store version of the app installation?

[Gambitason 5]

52 minutes ago, SamES said:

Yes, it should be in the next release.

Are you using the USB or store version of the app installation?

I am using the store version. I can test with the USB version of course but Not everyone in my family will be able to do that.

[SamES 1004]

14 hours ago, Gambitason said:

I am using the store version. I can test with the USB version of course but Not everyone in my family will be able to do that.

No problem.  The store version will take a little longer to get updated

[Gambitason 5]

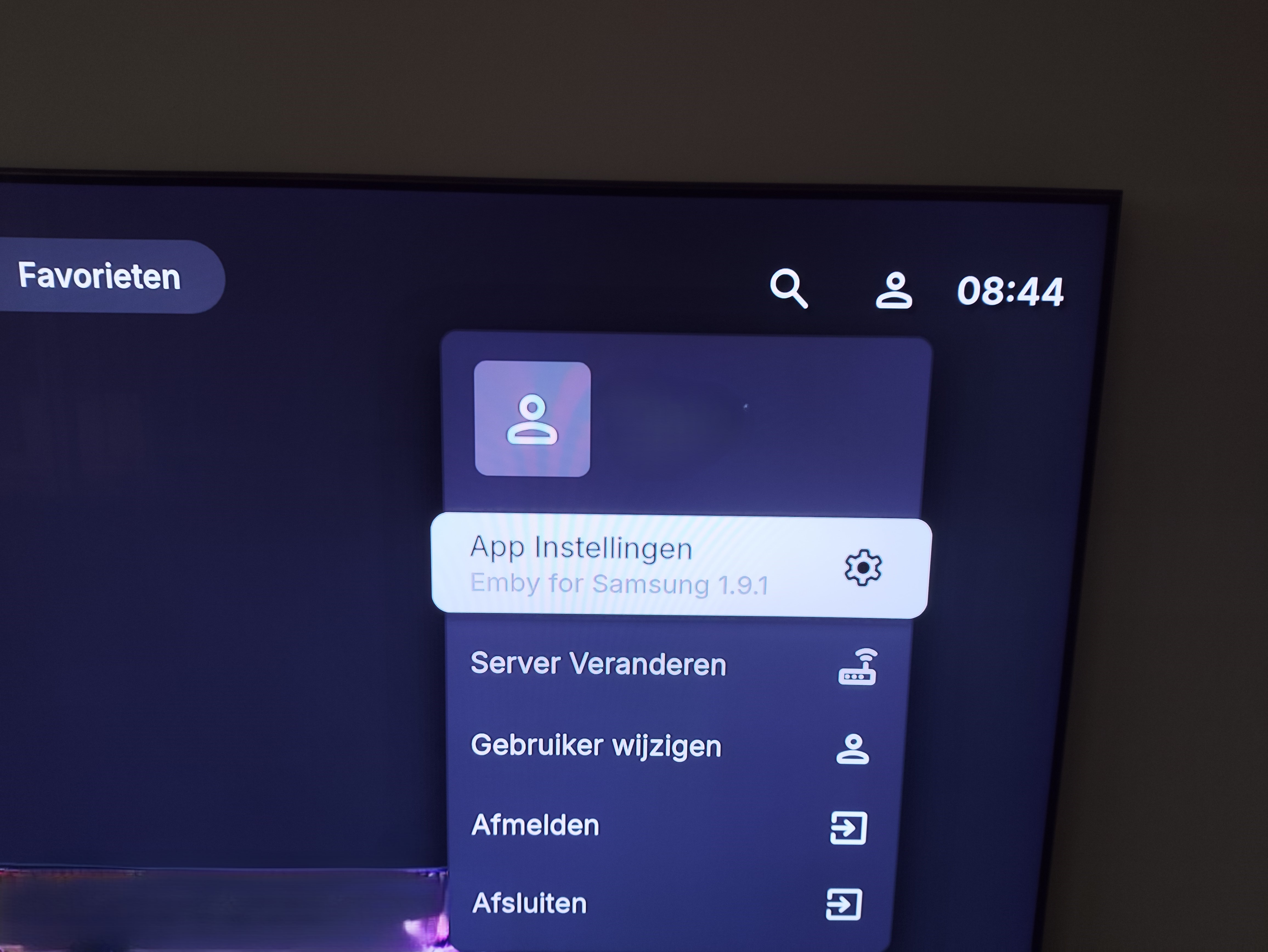

@SamESI have installed 1.9.1 this weekend but I have some bad news.

The issue is still persisting. see below pictures

[SamES 1004]

Sorry, it didn't make it into 1.9.1, it came out sooner than I expected.

[Gambitason 5]

Thats a shame. I will try the next version

[Luke 40144]

On 11/14/2024 at 7:52 AM, Gambitason said:

Thats a shame. I will try the next version

HI, yes, sorry my mistake. It will be in 1.9.2. Thanks.

[Gambitason 5]

Sorry for the late feedback but I finaly got the chance to do another manual install and test the latest version.

I installed version 1.9.5 and it playback is smooth without any black screens or problems.

just one quick question if you don't mind.

Any idea when the latest version will be on the samsung store?

Thank you for the fast fix and dedication.

[alok1 13]

3 hours ago, Gambitason said:

Sorry for the late feedback but I finaly got the chance to do another manual install and test the latest version.

I installed version 1.9.5 and it playback is smooth without any black screens or problems.

Hi @Gambitason, could you please tell me what version of Emby is showing in your Samsung TV App store? It's not related to your problem; I just want to ask because my TV is old and may not be receiving updates. The latest version on my TV is 1.8.0.

Thanks.

Edited December 30, 2024 by kakashi55

[Luke 40144]

3 hours ago, Gambitason said:

Sorry for the late feedback but I finaly got the chance to do another manual install and test the latest version.

I installed version 1.9.5 and it playback is smooth without any black screens or problems.

just one quick question if you don't mind.

Any idea when the latest version will be on the samsung store?

Thank you for the fast fix and dedication.

HI, it will take time to get through Samsung review, so it's just hard to say. 1.9.5 will probably not even be the version that gets submitted but rather something higher than that.
