Setting up Port forwarding

[hjortur17 0]

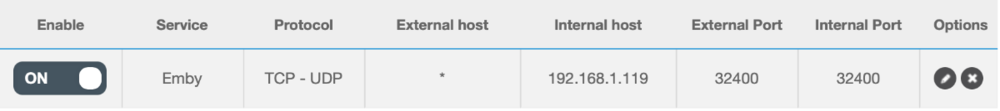

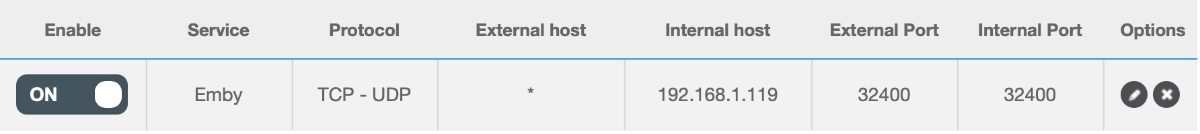

I am trying to set up port forwarding on my new router. It has been working on the old router but not any more. The new router is Sagemcom f@st 5366. What else do I need to do to get this to work?

Note: It's working In-Home but not if try to access the remote IP address (85.*.*.*)

Edited July 13, 2021 by hjortur17

[Abobader 3464]

Hello hjortur17,

** This is an auto reply **

Please wait for someone from staff support or our members to reply to you.

It's recommended to provide more info, as it explain in this thread:

Thank you.

Emby Team

[Happy2Play 9780]

5 minutes ago, hjortur17 said:

I am trying to set up port forwarding on my new router. It has been working on the old router but not any more. The new router is Sagemcom f@st 5366. What else do I need to do to get this to work?

Note: It's working In-Home but not if try to access the remote IP address (85.*.*.*)

Are those the ports you have configured in Emby also?

Ideally you use default ports 8096 for http and 8920 for https.

[Happy2Play 9780]

What issues are you having with WANIP:32400?

Port is open and can see manual login page.

Edited July 13, 2021 by Happy2Play

[hjortur17 0]

What do you mean? If I have been having issues with WANIP:32400?

Port 32400 worked for me last time but not 8096. I have 32400 configured in Emby

[Happy2Play 9780]

11 minutes ago, hjortur17 said:

What do you mean? If I have been having issues with WANIP:32400?

What do you get on WANIP:32400?



18 minutes ago, Happy2Play said:

Port is open and can see manual login page.

[Carlo 4561]

Are you sure you're not confusing Plex and Emby ports as 32400 is normally used by Plex while 8096 & 8920 are used by Emby.

https://support.emby.media/support/solutions/articles/44002137137-remote-setup

[Happy2Play 9780]

13 minutes ago, cayars said:

Are you sure you're not confusing Plex and Emby ports as 32400 is normally used by Plex while 8096 & 8920 are used by Emby.

https://support.emby.media/support/solutions/articles/44002137137-remote-setup

OP has configured Emby as the login page is accessible via forum post ip and that port.

[Carlo 4561]

OK I didn't see a WAN IP so I guess it was removed.

What problem is left then or has it been solved?

[hjortur17 0]

When I try loading WAN:32400 I get server doesn't response on Safari, basically website doesn't load. Do you recommend to use port 8096?

[Carlo 4561]

I would suggest using 8096 or 80 for non secured and 8920 or 443 for secured connections.

If you like I could remote in and give you a quick hand with this.  Might take us 5 minutes or so is all.

[justinrh 260]

Are you behind the router when you do your test?  You need to be on another network when you do your test.

[hjortur17 0]

I tried changing my server to 8096 but now Im not able to open the Dashboard for my Emby server.



I have been trying to see if it’s work by loading the emby app

[hjortur17 0]

Now for an example my port on http is 8088 but I changed it to 8096

[hjortur17 0]

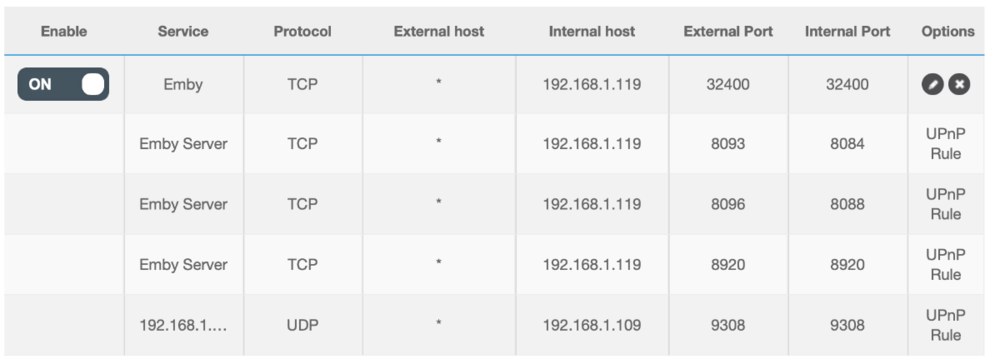

And this has now been added to my router from the Emby server, I have not done anything.

[hjortur17 0]

I got it working by creating new TCP rule. I'm thinking that my router was blocking port 32400 or something.

[Luke 42078]

Thanks for the feedback.
