DS920+ Software Transcoding

[DJX 18]

Can I get some help please?

I paid for Premiere but still the Hardware transcoding does not work. If only does software.

I have a Synology DS920+ with DSM 6.2.4-25556

INTEL Celeron J4125

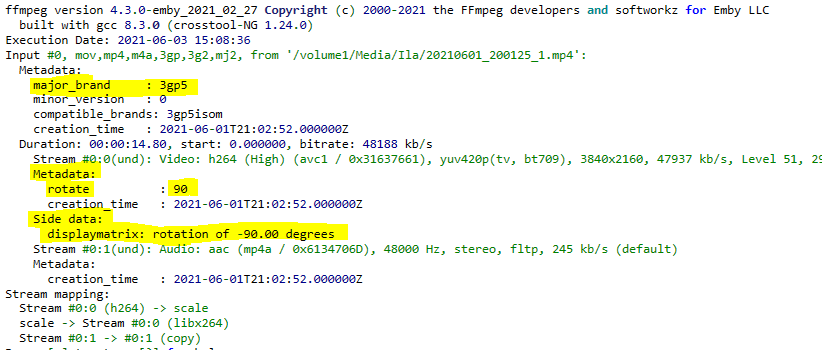

Logs attached from an attempt to watch a video. My emby dash showed it was doing software transcoding.



Edited July 8, 2022 by DJX

[Luke 42078]

@DJX I've split your posting into a new topic.

[Carlo 4561]

Just saw this.  @DJX are you still having a problem?

I have a DS920+ as well and can help you if needed.

[DJX 18]

2 hours ago, cayars said:

Just saw this.  @DJX are you still having a problem?

I have a DS920+ as well and can help you if needed.

Hi

Yes please can you let me know your setup to get it working?

Thanks

[Happy2Play 9780]

May need @softworkz for this.

15:08:36.019 Stream mapping:
15:08:36.019   Stream #0:0 (h264) -> scale_vaapi
15:08:36.019   scale_vaapi -> Stream #0:0 (h264_vaapi)
15:08:36.019   Stream #0:1 -> #0:1 (copy)
15:08:36.019 Press [q] to stop, [?] for help
15:08:36.065 Impossible to convert between the formats supported by the filter 'transpose' and the filter 'auto_scaler_0'
15:08:36.065 Error reinitializing filters!
15:08:36.065 Failed to inject frame into filter network: Function not implemented
15:08:36.065 Error while processing the decoded data for stream #0:0
15:08:36.098 Conversion failed!



[softworkz 5066]

@DJX - What kind of video is this, where did you get it from? From a smartphone?

The point is this:



It seems that ffmpeg has some automatism to insert a transpose filter to apply the display matrix (90° rotation). The transpose filter is a software filter, that's why its insertion fails in the initial transcoding pipeline (because it's a pure hw pipeline).

In case of the subsequent (sw-fallback-)attempt, its insertion works as it's all sw processing.

To be honest: this is the first time that I'm seeing this, and I don't have a plan yet for dealing with it.
My very first thought is more like: nice that it's getting handled by sw fallback at least..

[DJX 18]

3 hours ago, softworkz said:

@DJX - What kind of video is this, where did you get it from? From a smartphone?

The point is this:



It seems that ffmpeg has some automatism to insert a transpose filter to apply the display matrix (90° rotation). The transpose filter is a software filter, that's why its insertion fails in the initial transcoding pipeline (because it's a pure hw pipeline).

In case of the subsequent (sw-fallback-)attempt, its insertion works as it's all sw processing.

To be honest: this is the first time that I'm seeing this, and I don't have a plan yet for dealing with it.
My very first thought is more like: nice that it's getting handled by sw fallback at least..

Yes, my videos are 4K taken from a Samsung s21+.

I've just tried the encoding/decoding again and ticked VAAPI for h264/265 for both. This time the dashboard shows it working correctly with VAAPI>VAAPI.

So I think its working fine for me now!

Thanks!

[Luke 42078]

11 hours ago, DJX said:

Yes, my videos are 4K taken from a Samsung s21+.

I've just tried the encoding/decoding again and ticked VAAPI for h264/265 for both. This time the dashboard shows it working correctly with VAAPI>VAAPI.

So I think its working fine for me now!

Thanks!

Including the orientation?

[DJX 18]

52 minutes ago, Luke said:

Including the orientation?

When I'm on 4g the quality goes to 1080p because of the auto setting and the video is stretched landscape on my phone. If I change the quality to 4k or direct playing when on my network then I have to physically turn my phone in my hand and the video is displayed smaller

[DJX 18]

Just now, DJX said:

When I'm on 4g the quality goes to 1080p because of the auto setting and the video is stretched landscape on my phone. If I change the quality to 4k or direct playing when on my network then I have to physically turn my phone in my hand and the video is displayed smaller. Ideally it would play it portrait and full screen like the original on my phone I guess?



[Luke 42078]

OK so that means when direct playing, the android video player isn't auto-rotating. So that's something that needs to be looked at. Thanks.
