Subtitles not showing up

[maxiu 4]

Hello, I have a problem with subtitles on some files, not sure why, no language works on Edge or Chrome, works fine on Android, is a little weird on Opera (I have to start the show with no subs, the select them while it is already playing, but stopping the playback makes subtitles disappear again). The subtitles are in .srt format and there doesn't seem to be anything wrong with them (like overlapping time codes etc.)

Here is a pertinent part of the log I hope (is a little long):

2021-02-06 21:40:57.435
Operating System: Linux version 5.4.0-59-generic (buildd@lcy01-amd64-028) (gcc version 9.3.0 (Ubuntu 9.3.0-17ubuntu1~20.04)) #65-Ubuntu SMP Thu Dec 10 12:01:51 UTC 2020
OS/Process: x64/x64
Emby Server version: 4.5.4.0
Operating system: Unix 5.4.0.59
Command Line: /system/EmbyServer.dll -programdata /config -ffdetect /bin/ffdetect -ffmpeg /bin/ffmpeg -ffprobe /bin/ffprobe -restartexitcode 3

App: Emby Web 4.5.4.0
Chrome

http://x.x/videos/42767/hls1/main/0.ts?DeviceId=1e4db01a-08cf-432e-8589-027780901f9c&MediaSourceId=21345ebbbb53ff2d094fa06da1ab66b4&PlaySessionId=ec8610e7e06e42cd84a942b959ae39b2&api_key=19567d197a1f497e8e26b0c1ca3dd84b&VideoCodec=h264&AudioCodec=mp3,aac&VideoBitrate=6190000&AudioBitrate=320000&AudioStreamIndex=1&SubtitleStreamIndex=2&SubtitleMethod=Encode&TranscodingMaxAudioChannels=2&SegmentContainer=ts&MinSegments=1&BreakOnNonKeyFrames=True&ManifestSubtitles=vtt&h264-profile=high,main,baseline,constrainedbaseline,high10&h264-level=52&TranscodeReasons=SubtitleCodecNotSupported

{"Protocol":"File","Id":"21345ebbbb53ff2d094fa06da1ab66b4","Path":"/media/tv_shows/Dexter/Season 1/Dexter.S01E01.Dexter.Bluray-720p.Sonarr.x264.AAC.mkv","Type":"Default","Container":"mkv","Size":498746530,"Name":"Dexter.S01E01.Dexter.Bluray-720p.Sonarr.x264.AAC","IsRemote":false,"RunTimeTicks":31832410000,"SupportsTranscoding":true,"SupportsDirectStream":true,"SupportsDirectPlay":true,"IsInfiniteStream":false,"RequiresOpening":false,"RequiresClosing":false,"RequiresLooping":false,"SupportsProbing":false,"MediaStreams":[{"Codec":"h264","TimeBase":"1/1000","CodecTimeBase":"1001/48000","Title":"mkvCinemas","VideoRange":"SDR","DisplayTitle":"720p H264","NalLengthSize":"4","IsInterlaced":false,"IsAVC":true,"BitRate":1253430,"BitDepth":8,"RefFrames":1,"IsDefault":true,"IsForced":false,"Height":720,"Width":1280,"AverageFrameRate":23.976025,"RealFrameRate":23.976025,"Profile":"High","Type":"Video","AspectRatio":"16:9","Index":0,"IsExternal":false,"IsTextSubtitleStream":false,"SupportsExternalStream":false,"Protocol":"File","PixelFormat":"yuv420p","Level":41,"IsAnamorphic":false},{"Codec":"aac","Language":"eng","TimeBase":"1/1000","CodecTimeBase":"1/48000","Title":"mkvCinemas","DisplayTitle":"English AAC 5.1 (Default)","DisplayLanguage":"English","IsInterlaced":false,"ChannelLayout":"5.1","BitRate":320000,"Channels":6,"SampleRate":48000,"IsDefault":true,"IsForced":false,"Profile":"LC","Type":"Audio","Index":1,"IsExternal":false,"IsTextSubtitleStream":false,"SupportsExternalStream":false,"Protocol":"File"},{"Codec":"PGSSUB","Language":"eng","TimeBase":"1/1000","CodecTimeBase":"0/1","Title":"mkvCinemas","DisplayTitle":"English (Default PGSSUB)","DisplayLanguage":"English","IsInterlaced":false,"IsDefault":true,"IsForced":false,"Type":"Subtitle","Index":2,"IsExternal":false,"IsTextSubtitleStream":false,"SupportsExternalStream":false,"Protocol":"File"},{"Codec":"srt","Language":"pol","DisplayTitle":"Polish (SRT)","DisplayLanguage":"Polish","IsInterlaced":false,"IsDefault":false,"IsForced":false,"Type":"Subtitle","Index":3,"IsExternal":true,"IsTextSubtitleStream":true,"SupportsExternalStream":true,"Path":"/media/tv_shows/Dexter/Season 1/Dexter.S01E01.Dexter.Bluray-720p.Sonarr.x264.AAC.pl.srt","Protocol":"File"}],"Formats":[],"Bitrate":1253430,"RequiredHttpHeaders":{},"ReadAtNativeFramerate":false}

>>>>>>  User policy for max
        EnablePlaybackRemuxing: True
        EnableVideoPlaybackTranscoding: False
        EnableAudioPlaybackTranscoding: True


>>>>>>  Processing Plan
Info    Name                                        CanDoInHardware      WillDoInHardware     Reason
Info    Copy video stream                        >> False                False                Software Codec
Info    VideoInput                               >> False                False                Not a hardware decoder
Info    VideoOutput                              >> False                False                Not a hardware encoder
Info    Copy video stream                        >> False                False                Software Codec

>>>>>>  Projected Processing Formats
Info    Previous                HW-Context   Format       SW-Format       Next
Info    h264                 >> -            yuv420p      yuv420p      >>

/bin/ffmpeg -loglevel +timing -y -print_graphs_file "/config/logs/ffmpeg-directstream-414b4a3e-517b-4c5f-91a6-e1cc8d5426d6_1graph.txt" -copyts -start_at_zero -f matroska,webm -noaccurate_seek -c:v:0 h264 -i "/media/tv_shows/Dexter/Season 1/Dexter.S01E01.Dexter.Bluray-720p.Sonarr.x264.AAC.mkv" -map 0:0 -map 0:1 -sn -c:v:0 copy -bsf:v:0 h264_mp4toannexb -c:a:0 copy -metadata:s:a:0 language=eng -disposition:a:0 default -copypriorss:a:0 0 -max_delay 5000000 -avoid_negative_ts disabled -f segment -map_metadata -1 -map_chapters -1 -segment_format mpegts -segment_list "/config/transcoding-temp/5DF709.m3u8" -segment_list_type m3u8 -segment_time 6 -segment_start_number 0 -break_non_keyframes 1 -individual_header_trailer 0 -write_header_trailer 0 -segment_write_temp 1 "/config/transcoding-temp/5DF709_%d.ts"

21:40:57.455 ffmpeg version 4.3.0-emby_2020_05_23 Copyright (c) 2000-2019 the FFmpeg developers and softworkz for Emby LLC
21:40:57.455   built with gcc 8.3.0 (crosstool-NG 1.24.0)
21:40:57.455 Execution Date: 2021-02-06 21:40:57
21:40:57.472 [matroska,webm @ 0x162bc00] Could not find codec parameters for stream 2 (Subtitle: hdmv_pgs_subtitle (pgssub)): unspecified size
Consider increasing the value for the 'analyzeduration' and 'probesize' options
21:40:57.473 Input #0, matroska,webm, from '/media/tv_shows/Dexter/Season 1/Dexter.S01E01.Dexter.Bluray-720p.Sonarr.x264.AAC.mkv':
21:40:57.473   Metadata:
21:40:57.473     title           : Dexter S01 E01 BluRay - mkvCinemas
21:40:57.473     encoder         : libebml v1.4.0 + libmatroska v1.6.2
21:40:57.473     creation_time   : 2021-01-21T09:48:04.000000Z
21:40:57.473     TITLE-eng       : Encoded By: mkvCinemas
21:40:57.473     Website         : mkvCinemas
21:40:57.473   Duration: 00:53:03.24, start: 0.000000, bitrate: 1253 kb/s
21:40:57.473     Stream #0:0: Video: h264 (High), yuv420p(progressive), 1280x720 [SAR 1:1 DAR 16:9], Level 41, 23.98 fps, 23.98 tbr, 1k tbn, 47.95 tbc (default)
21:40:57.473     Metadata:
21:40:57.473       title           : mkvCinemas
21:40:57.473       BPS-eng         : 1048179
21:40:57.473       DURATION-eng    : 00:53:03.180000000
21:40:57.473       NUMBER_OF_FRAMES-eng: 76320
21:40:57.473       NUMBER_OF_BYTES-eng: 417067932
21:40:57.473     Stream #0:1(eng): Audio: aac (LC), 48000 Hz, 5.1, fltp, Start-Time 0.009s (default)
21:40:57.473     Metadata:
21:40:57.473       title           : mkvCinemas
21:40:57.473       BPS-eng         : 191578
21:40:57.473       DURATION-eng    : 00:53:03.232000000
21:40:57.473       NUMBER_OF_FRAMES-eng: 149214
21:40:57.473       NUMBER_OF_BYTES-eng: 76229703
21:40:57.473     Stream #0:2(eng): Subtitle: hdmv_pgs_subtitle (default)
21:40:57.473     Metadata:
21:40:57.473       title           : mkvCinemas
21:40:57.473       BPS-eng         : 43248
21:40:57.473       DURATION-eng    : 00:50:45.751000000
21:40:57.473       NUMBER_OF_FRAMES-eng: 1290
21:40:57.473       NUMBER_OF_BYTES-eng: 16465429
21:40:57.473 Output #0, segment, to '/config/transcoding-temp/5DF709_%d.ts':
21:40:57.473   Metadata:
21:40:57.473     encoder         : Lavf58.35.100
21:40:57.473     Stream #0:0: Video: h264 (High), yuv420p(progressive), 1280x720 [SAR 1:1 DAR 16:9], q=2-31, Level 41, 23.98 fps, 23.98 tbr, 90k tbn, 23.98 tbc (default)
21:40:57.473     Stream #0:1(eng): Audio: aac (LC), 48000 Hz, 5.1, fltp (default)
21:40:57.473 Stream mapping:
21:40:57.473   Stream #0:0 -> #0:0 (copy)
21:40:57.473   Stream #0:1 -> #0:1 (copy)
21:40:57.473 Press [q] to stop, [?] for help

Thanks for any advice.

Edited February 6, 2021 by maxiu

[Luke 42078]

Hi there, please attach the complete emby server and ffmpeg log files. thanks.

[maxiu 4]

Here

embyserver.txt ffmpeg-directstream-414b4a3e-517b-4c5f-91a6-e1cc8d5426d6_1.txt

[Luke 42078]

You enabled PGS format subtitles, which the browser does not support.



[maxiu 4]

Hello,

Thanks, that was it, when I downloaded another subtitles in the original language and loaded the video file with those it worked. It seems starting playback with the embedded subs caused a glitch and I was unable to select different ones. Is it possible to make emby ignore those? I found such setting in bazarr but not in emby.

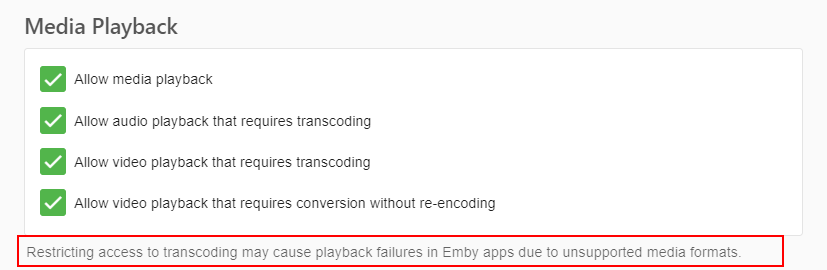

I keep transcoding disabled for performance reasons, sometimes emby will try to transcode even though the connection can easily handle downloading and sending the original file and it keeps my server's CPU at 100% for hours.

Edited February 8, 2021 by maxiu

[Luke 42078]

There's currently no option to ignore specific subtitle formats.
