Local clients treated as remote

[andresmorago 1]

Hello

Im trying to setup my new Emby on a synology nas. So far so good.

im sorry if this has been treated before.





im noticing than all local clients are being treated as remote clients. i can tell this since i have this configuration on my users and none of them are being shows on the login screen when locally accessing



emby is running on 10.0.0.2



Local http port number: 8095

Local https port number: 8096

Public http port number: 8095

Public https port number: 8096

automatic port mapping is disabled



i also have an external domain already configured with a letsencrypt certificate borrowed from synology nas.

nas01.xxxxxx.com



at my router, i have this line on the dnsmasq.conf file so all local clients are forced to the emby ip address when typing the domain name

address=/nas01.xxxxxx.com/10.0.0.2



also, the option Secure connection mode is set to "required for all remote connections" and when i locally try to access http instead of https, im being forced to https.



thanks so much for your help

Edited December 21, 2019 by andresmorago

[Luke 42085]

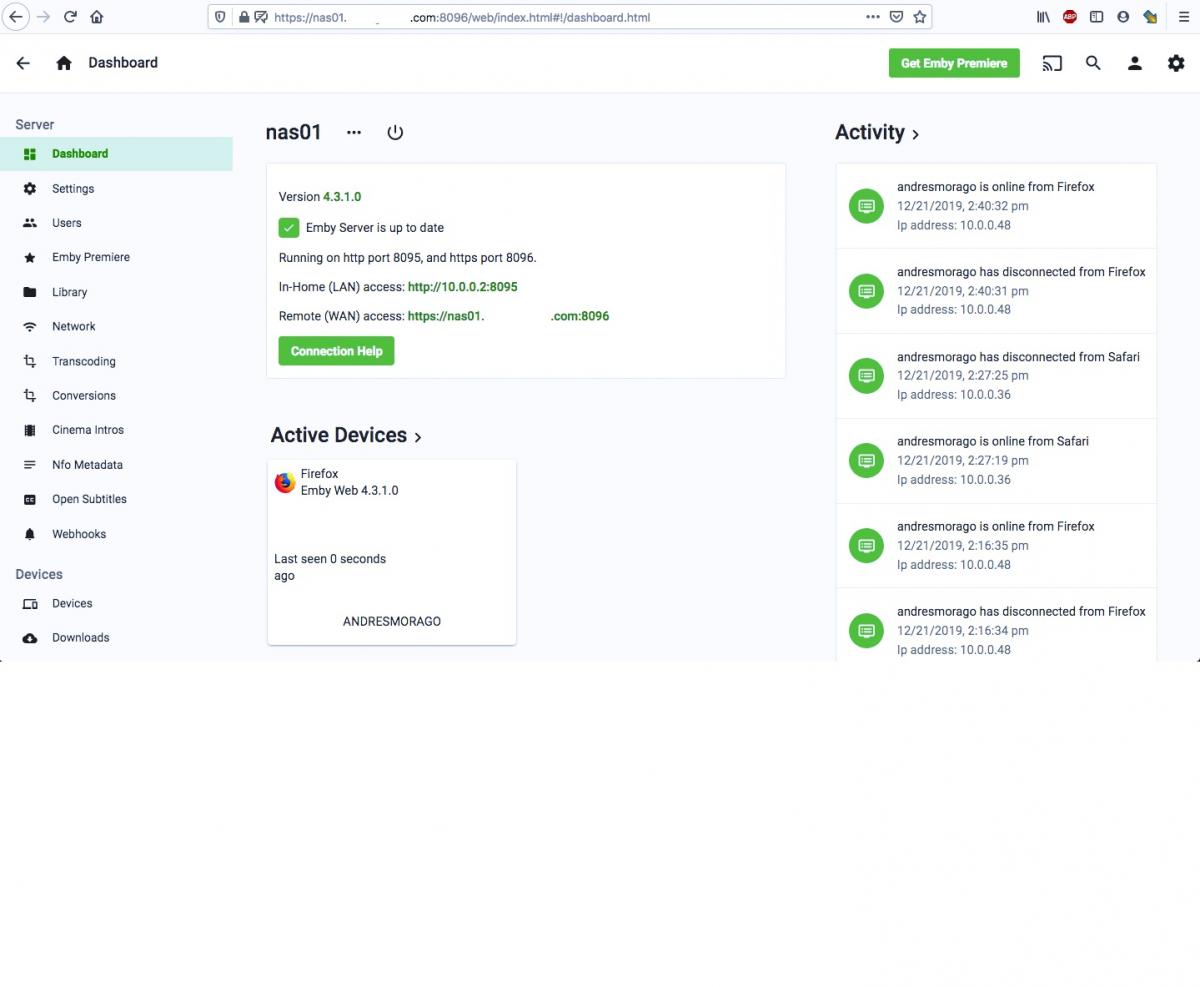

Hi there, I would check the server activity log on the front page of the server dashboard. This will display the remote IP addresses of the clients.



If these remote IP's are not correct, then your network setup probably requires adjustment so that Emby Server can see the correct address. Are the remote IPs correct?

[andresmorago 1]

hi

thanks for your feedback.



latest log entry shows

andresmorago is online from Firefox

12/21/2019, 2:40:32 pm

Ip address: 10.0.0.48





that ip address belongs to my local network



in the case of user andresmorago, when i have this setup, im unable to see this user on the login page when accesing https://10.0.0.2:8096/

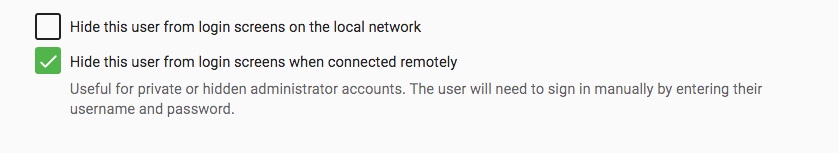

OFF   Hide this user from login screens on the local network

ON     Hide this user from login screens when connected remotely



when i change it, user shows back again

OFF   Hide this user from login screens on the local network

OFF     Hide this user from login screens when connected remotely



Edited December 21, 2019 by andresmorago

[Luke 42085]

So then it sounds like you want to go into the server Network settings and explore the option called "Lan Networks".

[andresmorago 1]

already set up since the beginning. sorry that i didnt mention that before



LAN networks:

10.0.0.0



Bind to local network address:

10.0.0.2

[Luke 42085]

That doesn't look right. That means only 10.0.0.0 will be considered in-network.

[andresmorago 1]

so if all my clients are within the network 10.0.0.0/24, what should i use here?

[Luke 42085]

I would suggest

10.0.0.0/24

[andresmorago 1]

great!!! now its working

i had no idea i could use the cidr format on that field.

[Luke 42085]

It's in the help text right underneath the field. Thanks for the feedback.

[andresmorago 1]

yes. totally my bad! thanks so much
