Unable to connect to Server over HTTPS

[dragonkeyper 1]

Using my domain name I am able to  I'm able to connect via a standard HTTP connection and  but I can make a secure connection to the server using my ip address but I am unable to connect via HTTPS  using my domain name. Server logs attached and screen caps of current settings.

embyserver.txt

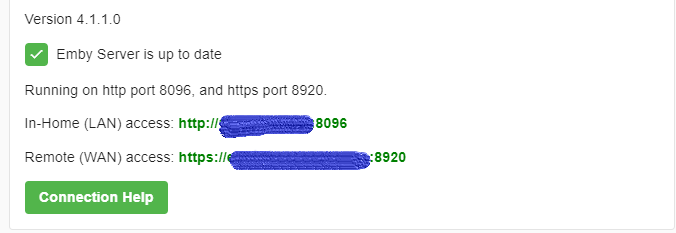

Here is a view of my current sever urls:

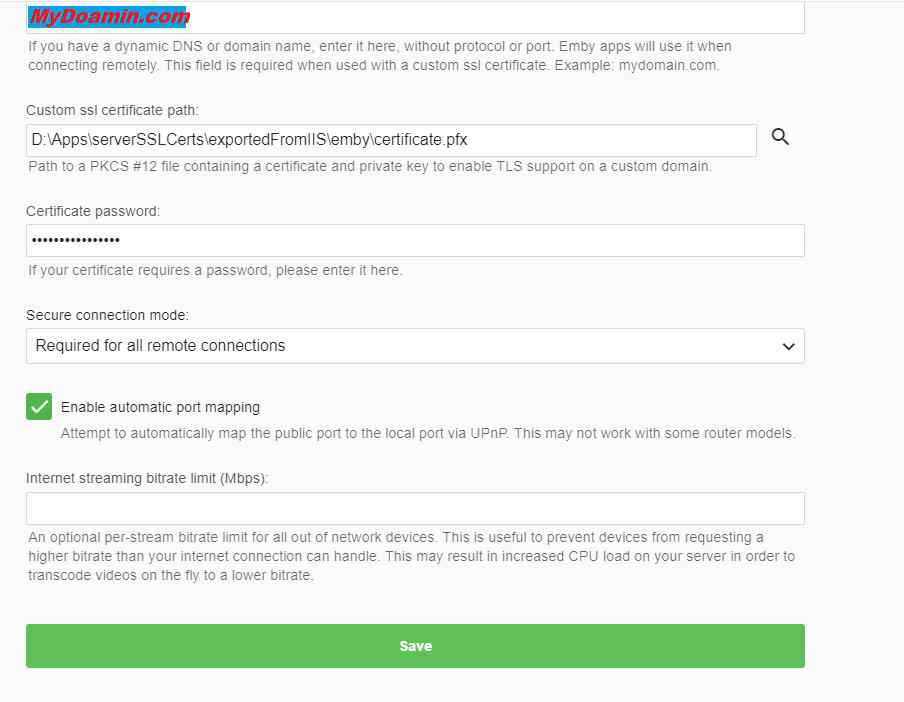

My Emby Server settings:

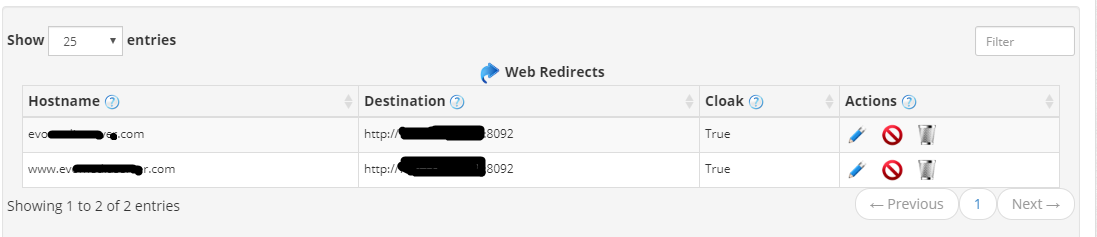

My Dynu redirect settings:

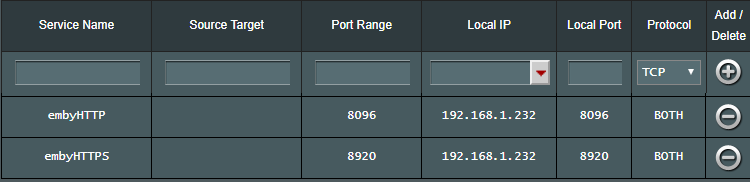

My Router settings:



Any insight into what I've mis-configured would be greatly appreciated.

Thans

[Luke 42080]

Hi, what kind of certificate is this?

[dragonkeyper 1]

Its a pfx certificate from Lets Encrypt it was exported from IIS.

[Luke 42080]

How exactly are you trying to connect? Because it doesn't even look like any https requests even made it to the emby server.

[dragonkeyper 1]

Yeah that's what it looks like. But I've tried clicking the remote LAN address displayed on Emby dashboard, and I've connected using the IP address and port number. Chrome complains when i connect using the IP address since the IP  address is not listed as an alternative on the certificate.

[chacawaca 109]

your port number in your dynu redirect maybe ?
