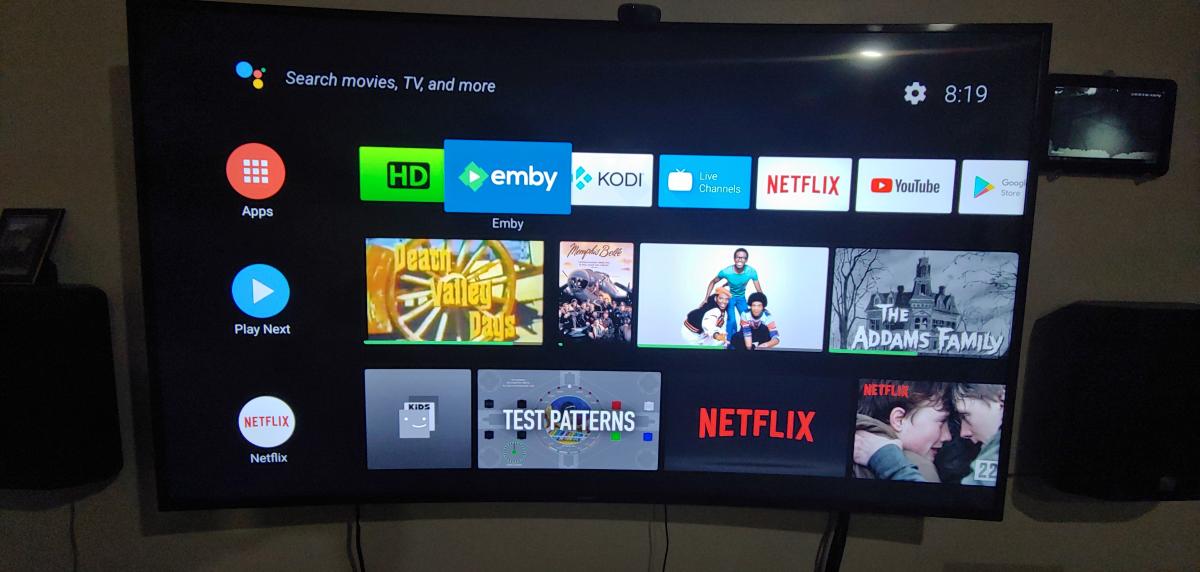

clarkss12 304 Posted December 4, 2018 Posted December 4, 2018 Bout ready to toss that crappy Nvidia Shield, can't get the settings correct. Can't get the bright colors, thumbnails only dull colors. Tried several different settings but nothing helps. Closed captions on my recordings, fall off the TV screen, and can't figure out what adjustments will get them correct. Using my Jetstream (Official Google Android TV OS box), I don't have any of those issues, it just works out of the box.......... Boxes connected to Yamaha AVR and from the AVR to my Samsung UN65KU6500 4k TV. See attached photos. << Jetstream << Shield PS. I HATE settings.... It should JUST work!!
Guest asrequested Posted December 4, 2018 Posted December 4, 2018 lol....it looks like it may be set to the wrong resolution. Click on the gear at the top right and go to display. What is it set to?
clarkss12 304 Posted December 4, 2018 Author Posted December 4, 2018 lol....it looks like it may be set to the wrong resolution. Click on the gear at the top right and go to display. What is it set to? After looking at the Jetstream setting, very few, which for me is a blessing, it appears that I need to use the 8 bit......... Whatever that means. Here are pics. Only one pic of the Jetstream, since that is all the video settings there are.......... Shield, toooo many settings, and it should have read the **EID** from my TV and made the correct default settings. << Jetstream ++++++++++++++++++++++++++++++++++++++++++++++++++++ SHEILD
Guest asrequested Posted December 4, 2018 Posted December 4, 2018 So it's working ok, now? If your receiver can pass HDR then 10 bit is correct. Usually shield gets that correct.
Guest asrequested Posted December 4, 2018 Posted December 4, 2018 Also, check your TV settings for zoom, scale...stuff like that.

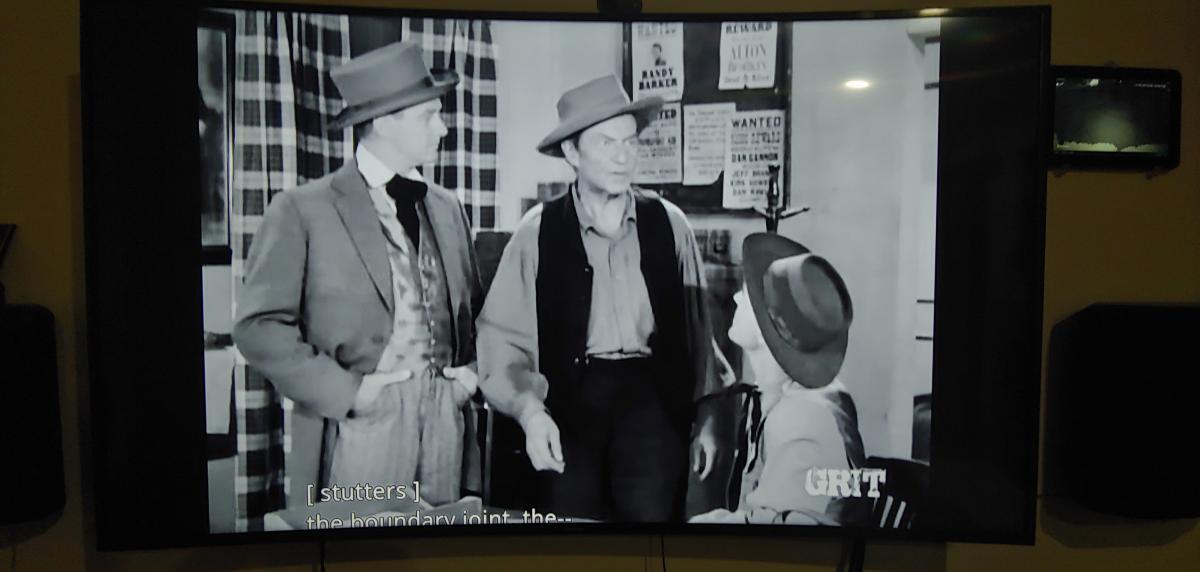

clarkss12 304 Posted December 4, 2018 Author Posted December 4, 2018 Changed the resolution?? to 8 bit now, colors are correct, but closed captions still fall off the bottom of the screen. I am NOT going to tinker with my TV settings.. Is it possible that my TV does not support 10 bit??
clarkss12 304 Posted December 4, 2018 Author Posted December 4, 2018 So it's working ok, now? If your receiver can pass HDR then 10 bit is correct. Usually shield gets that correct. Here is my Yamaha receiver model. Yamaha RX-A880 AVENTAGE 7.1 ch Dolby Atmos HT rcvr w.MCast
Guest asrequested Posted December 4, 2018 Posted December 4, 2018 Changed the resolution?? to 8 bit now, colors are correct, but closed captions still fall off the bottom of the screen. I am NOT going to tinker with my TV settings.. Is it possible that my TV does not support 10 bit?? 1203182134.jpg The color gamut (8 bit, 10 bit) won't have anything to do with scale. For a test, try plugging the shield directly into the TV, and see what happens.
clarkss12 304 Posted December 4, 2018 Author Posted December 4, 2018 (edited) The color gamut (8 bit, 10 bit) won't have anything to do with scale. For a test, try plugging the shield directly into the TV, and see what happens. Ok, connected directly to TV, now colors are correct, but now it uses 8bit, and there is NO 10 bit selection................ Closed captions are correct also. Will attach photos of the settings with Shield connected directly to TV. Edited December 4, 2018 by clarkss12
clarkss12 304 Posted December 4, 2018 Author Posted December 4, 2018 (edited) So, what do I do now?? Goldangit!!! connected it back to my AVR and the settings were retained, but the closed captions are off the bottom of the screen......... The colors are perfect. My Jetstream goes through my AVR, the same as my Shield, and the closed captions are perfect. Edited December 4, 2018 by clarkss12
Guest asrequested Posted December 4, 2018 Posted December 4, 2018 I don't remember if the app has options for subs positions. Check that.
clarkss12 304 Posted December 4, 2018 Author Posted December 4, 2018 I think you may have found the answer on the closed captions. I will do more testing tomorrow. Thank you for your help, we have the color issue resolved now.
ebr 16169 Posted December 4, 2018 Posted December 4, 2018 You probably need to adjust the display size as it sounds like maybe it is overscanning your screen.
clarkss12 304 Posted December 4, 2018 Author Posted December 4, 2018 You probably need to adjust the display size as it sounds like maybe it is overscanning your screen. Do you mean the display size on my TV settings??? I have 7 different devices going through my AVR to my TV, and ONLY the Shield has this issue?? Tested Mecool KM8, Jetstream and Mecool M8S Pro L. The M8S Pro L is still running version 1.6.45 so it does not support CC under live TV or TV recordings. I keep several of my different boxes with different versions so I can compare when I have issues with a particular version (or box). So, I will make the ** assumption ** that it is a setting in the Shield, and not my TV or AVR.
ebr 16169 Posted December 4, 2018 Posted December 4, 2018 I know the Fire TV has its own setting as does the Mi. I haven't checked the Shield as I've never had an overscan problem with it but it would be labeled something like display size or position.
clarkss12 304 Posted December 4, 2018 Author Posted December 4, 2018 (edited) I know the Fire TV has its own setting as does the Mi. I haven't checked the Shield as I've never had an overscan problem with it but it would be labeled something like display size or position. Problem solved, adjusted the overscan and now the CC's do NOT drop off the screen. Much thanks to you and Doofus............. Edit: Of course having to manually adjust the overscan is soooo 1980ish.......... Edited December 4, 2018 by clarkss12
ebr 16169 Posted December 4, 2018 Posted December 4, 2018 Edit: Of course having to manually adjust the overscan is soooo 1980ish.......... Should be right in your wheelhouse...
clarkss12 304 Posted December 4, 2018 Author Posted December 4, 2018 Should be right in your wheelhouse...
