Audio Problems Android Tv - Qnap Server

July 30, 2018

Hi I have a Philips Android TV. I output audio via optical to Integra 70.4. The Integra show Dolby when viewing TV. If I switch to Emby App all I get is pcm. I have checked TV is set to multi-channel and Emby app is set to Auto for Audio. Emby server on Qnap is 3.5.1 All transcoding settings on Qnap are as factory installed except for Hardware Acceleration which is set to Video Acceleration API. Stats for nerds state 5.1 audio channels. Does anyone have any suggestion please ? Are there settings I'm not seeing ? Thanks Gary

July 30, 2018

Hi there, can we please look at an example? Please attach the information requested in how to report a media playback issue. thanks !

July 30, 2018

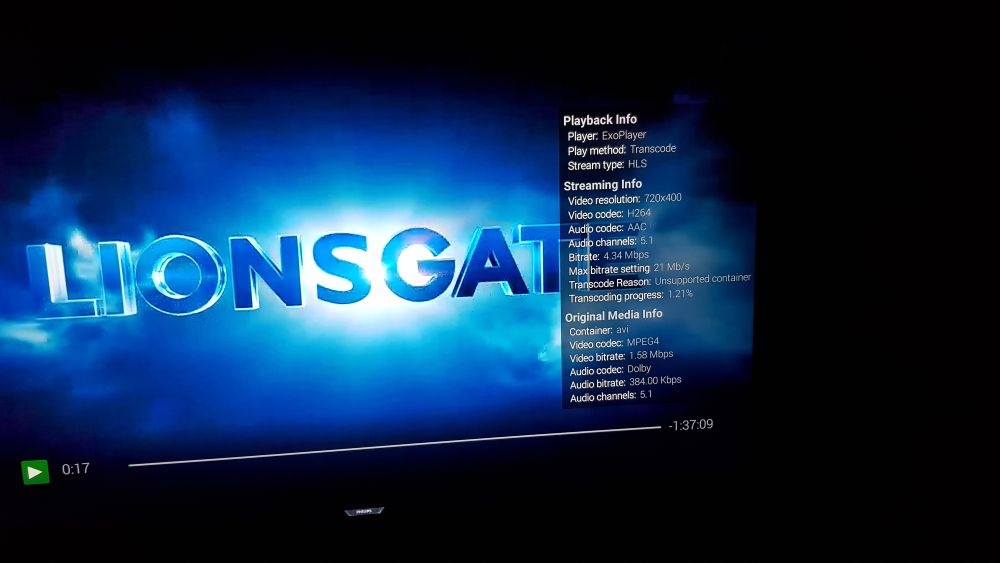

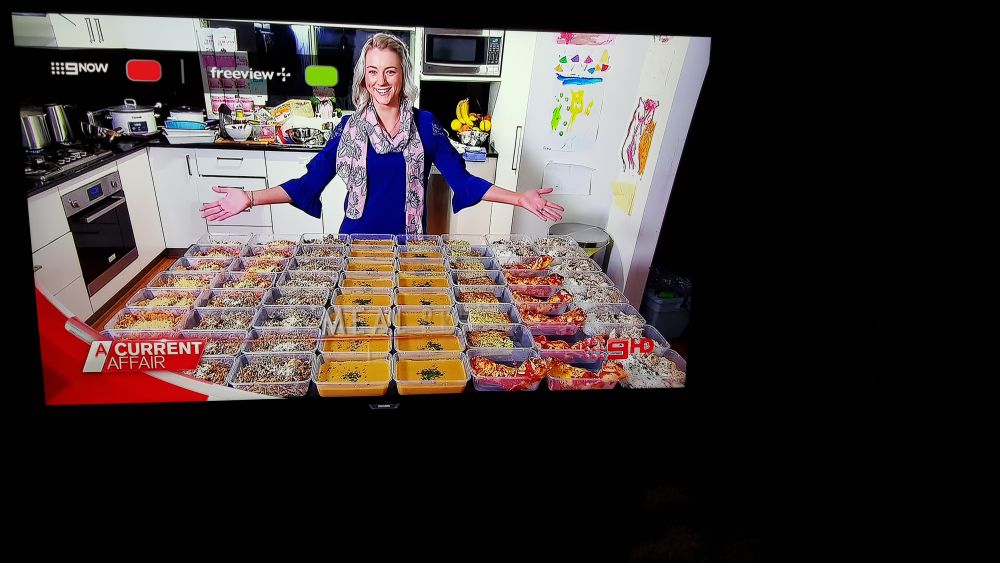

Hi Luke Thanks for answering. I have uploaded the logs via Android TV. I have included screenshots of TV & Emby playing and their respective outputs to Integra

Emby Output. Thanks Luke

.

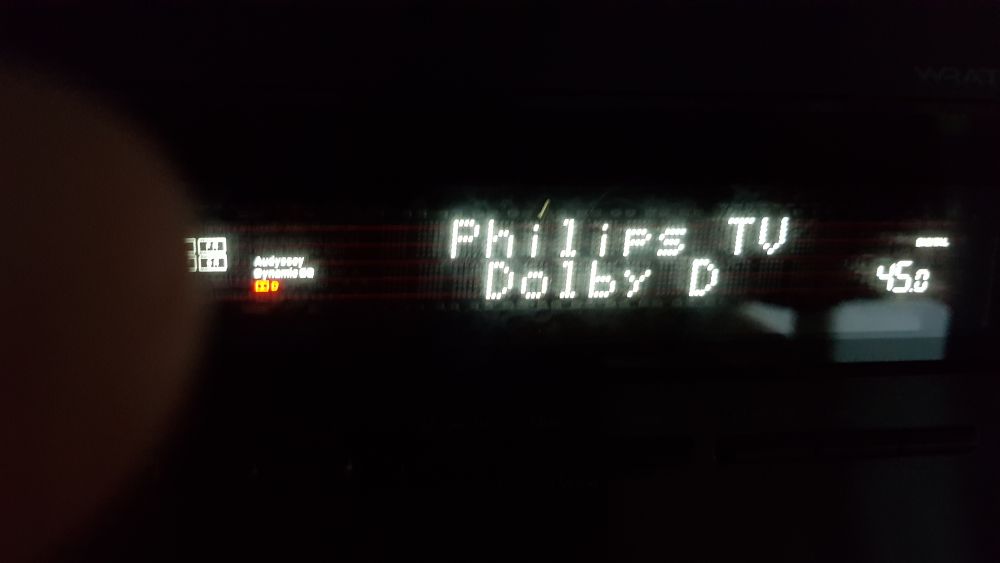

TV Output

July 30, 2018

Ok, @@ebr will take a look at that and let you know what he thinks. Thanks.

July 30, 2018

Hi. Can I please see the ffmpeg log that is generated on the server when you play that first item?

Thanks.

BTW - the app is sending 5.1 PCM but the TV is converting it to stereo because an optical connection cannot carry more than two channels of PCM.

July 30, 2018

Hi ebr

Here is the ffmpeg txt file. Is there a way for the app to send DD rather than pcm ?

2018-07-31 09:03:35.065

Application version: 3.5.0.0

http://192.168.0.10:8096/emby/videos/7fa4942d2ca8f09a6c0a80b4c4d4315c/hls1/main/0.ts?DeviceId=69de36d4f5235295&MediaSourceId=7fa4942d2ca8f09a6c0a80b4c4d4315c&VideoCodec=h264,mpeg2video,hevc,h265&AudioCodec=aac,mp3&AudioStreamIndex=1&VideoBitrate=20616000&AudioBitrate=384000&PlaySessionId=3c52345ea6f24e96a3487a18bd467ce1&api_key=6f89636db8f24158a8bac2e8912be0b5&CopyTimestamps=true&RequireAvc=false&Tag=0fae93f91a0623c78658651b40d1855a&SegmentContainer=ts&MinSegments=2&BreakOnNonKeyFrames=True&h264-profile=high,main,baseline,constrainedbaseline&h264-level=51&mpeg2video-deinterlace=true&hevc-profile=Main,Main10&aac-audiochannels=8&mp3-audiochannels=8&TranscodeReasons=ContainerNotSupported,VideoCodecNotSupported,AudioCodecNotSupported

{"Protocol":"File","Id":"7fa4942d2ca8f09a6c0a80b4c4d4315c","Path":"/share/CACHEDEV1_DATA/Movies July 2018/Affairs of State (2018)/Affairs of State (2018).avi","Type":"Default","Container":"avi","Name":"Affairs of State (2018)","IsRemote":false,"ETag":"0fae93f91a0623c78658651b40d1855a","RunTimeTicks":58468780000,"ReadAtNativeFramerate":false,"IgnoreDts":false,"IgnoreIndex":false,"GenPtsInput":false,"SupportsTranscoding":true,"SupportsDirectStream":true,"SupportsDirectPlay":true,"IsInfiniteStream":false,"RequiresOpening":false,"RequiresClosing":false,"RequiresLooping":false,"SupportsProbing":true,"VideoType":"VideoFile","MediaStreams":[{"Codec":"mpeg4","CodecTag":"XVID","TimeBase":"417083/10000000","CodecTimeBase":"417083/10000000","VideoRange":"SDR","DisplayTitle":"480P MPEG4","IsInterlaced":false,"BitRate":1583239,"RefFrames":1,"IsDefault":false,"IsForced":false,"Height":400,"Width":720,"AverageFrameRate":23.9760437,"RealFrameRate":23.9760437,"Profile":"Advanced Simple Profile","Type":"Video","AspectRatio":"16:9","Index":0,"IsExternal":false,"IsTextSubtitleStream":false,"SupportsExternalStream":false,"PixelFormat":"yuv420p","Level":5},{"Codec":"ac3","TimeBase":"4/125","CodecTimeBase":"1/48000","DisplayTitle":"Dolby Digital 5.1","IsInterlaced":false,"ChannelLayout":"5.1","BitRate":384000,"Channels":6,"SampleRate":48000,"IsDefault":false,"IsForced":false,"Type":"Audio","Index":1,"IsExternal":false,"IsTextSubtitleStream":false,"SupportsExternalStream":false,"Level":0}],"Formats":[],"Bitrate":1976573,"RequiredHttpHeaders":{}}

User policy for Gary & Regina: EnablePlaybackRemuxing: True EnableVideoPlaybackTranscoding: True EnableAudioPlaybackTranscoding: True

/share/CACHEDEV1_DATA/.qpkg/EmbyServer/bin/ffmpeg -i file:"/share/CACHEDEV1_DATA/Movies July 2018/Affairs of State (2018)/Affairs of State (2018).avi" -threads 0 -map 0:0 -map 0:1 -map -0:s -codec:v:0 libx264 -vf "scale=trunc(min(max(iw\,ih*dar)\,1280)/2)*2:trunc(ow/dar/2)*2" -pix_fmt yuv420p -preset veryfast -crf 23 -maxrate 3958098 -bufsize 7916196 -profile:v high -level 4.1 -x264opts:0 subme=0:me_range=4:rc_lookahead=10:me=dia:no_chroma_me:8x8dct=0:partitions=none -force_key_frames "expr:if(isnan(prev_forced_t),eq(t,t),gte(t,prev_forced_t+3))" -copyts -vsync -1 -codec:a:0 aac -strict experimental -ac 6 -ab 384000 -f segment -max_delay 5000000 -avoid_negative_ts disabled -map_metadata -1 -map_chapters -1 -start_at_zero -segment_time 3 -individual_header_trailer 0 -segment_format mpegts -segment_list_type m3u8 -segment_start_number 0 -segment_list "/share/CACHEDEV1_DATA/.qpkg/EmbyServer/programdata/transcoding-temp/e11e0ea4f6f72628a52074132c35efec.m3u8" -y "/share/CACHEDEV1_DATA/.qpkg/EmbyServer/programdata/transcoding-temp/e11e0ea4f6f72628a52074132c35efec%d.ts"

built with gcc 6.3.0 (crosstool-NG crosstool-ng-1.23.0)

configuration: --enable-cross-compile --cross-prefix=x86_64-pc-linux-gnu- --cc=x86_64-pc-linux-gnu-gcc --cxx=x86_64-pc-linux-gnu-g++ --arch=x86_64 --prefix=/home/embybuilder/Buildbot-master/x64/ffmpeg-x64/staging --pkg-config=pkg-config --disable-doc --disable-ffplay --disable-xlib --enable-fontconfig --enable-gnutls --enable-gpl --enable-iconv --enable-libass --enable-libfreetype --enable-libfribidi --enable-libmp3lame --enable-libopus --enable-libtheora --enable-libvorbis --enable-libwebp --enable-libx264 --enable-libzvbi --enable-version3 --extra-libs='-ldl -lexpat -lfreetype -lfribidi -lfontconfig -liconv -lpng -luuid -lz -lvorbis -logg -lnettle -lhogweed -lgmp -laddns-samba4 -lasn1util-samba4 -lauthkrb5-samba4 -lCHARSET3-samba4 -lcliauth-samba4 -lcli-cldap-samba4 -lcli-ldap-common-samba4 -lcli-nbt-samba4 -lcli-smb-common-samba4 -lcom_err -lcommon-auth-samba4 -ldbwrap-samba4 -ldcerpc-binding -ldcerpc-samba-samba4 -lflag-mapping-samba4 -lgenrand-samba4 -lgensec-samba4 -lgse-samba4 -lgssapi_krb5 -llibcli-lsa3-samba4 -llibsmb-samba4 -linterfaces-samba4 -liov-buf-samba4 -lk5crypto -lkrb5 -lkrb5samba-samba4 -lkrb5support -lldb -lldbsamba-samba4 -lmessages-dgm-samba4 -lmessages-util-samba4 -lmsghdr-samba4 -lmsrpc3-samba4 -lndr -lndr-krb5pac -lndr-nbt -lndr-samba-samba4 -lndr-standard -lreplace-samba4 -lsamba-cluster-support-samba4 -lsamba-credentials -lsamba-debug-samba4 -lsamba-errors -lsamba-hostconfig -lsamba-modules-samba4 -lsamba-security-samba4 -lsamba-sockets-samba4 -lsamba-util -lsamba3-util-samba4 -lsamdb -lsamdb-common-samba4 -lsecrets3-samba4 -lserver-id-db-samba4 -lserver-role-samba4 -lsmbconf -lsmbd-shim-samba4 -lsmb-transport-samba4 -lsocket-blocking-samba4 -lsys-rw-samba4 -ltalloc -ltalloc-report-samba4 -ltdb -ltdb-wrap-samba4 -ltevent -ltevent-util -ltime-basic-samba4 -lutil-cmdline-samba4 -lutil-reg-samba4 -lutil-setid-samba4 -lutil-tdb-samba4 -lwbclient -lwinbind-client-samba4 -ldrm' --target-os=linux --enable-shared --disable-static --enable-libsmbclient --enable-cuda --enable-cuvid --enable-nvenc --enable-vaapi

libavutil 56. 14.100 / 56. 14.100

libavcodec 58. 18.100 / 58. 18.100

libavformat 58. 12.100 / 58. 12.100

libavdevice 58. 3.100 / 58. 3.100

libavfilter 7. 16.100 / 7. 16.100

libswscale 5. 1.100 / 5. 1.100

libswresample 3. 1.100 / 3. 1.100

libpostproc 55. 1.100 / 55. 1.100

Input #0, avi, from 'file:/share/CACHEDEV1_DATA/Movies July 2018/Affairs of State (2018)/Affairs of State (2018).avi':

Duration: 01:37:26.88, start: 0.000000, bitrate: 1976 kb/s

Stream #0:0: Video: mpeg4 (Advanced Simple Profile) (XVID / 0x44495658), yuv420p, 720x400 [sAR 1:1 DAR 9:5], 1583 kb/s, 23.98 fps, 23.98 tbr, 23.98 tbn, 23.98 tbc

Stream #0:1: Audio: ac3 ([0] [0][0] / 0x2000), 48000 Hz, 5.1(side), fltp, 384 kb/s

Stream mapping:

Stream #0:0 -> #0:0 (mpeg4 (native) -> h264 (libx264))

Stream #0:1 -> #0:1 (ac3 (native) -> aac (native))

Press [q] to stop, [?] for help

[mpeg4 @ 0x1cc5740] Video uses a non-standard and wasteful way to store B-frames ('packed B-frames'). Consider using the mpeg4_unpack_bframes bitstream filter without encoding but stream copy to fix it.

[libx264 @ 0x1cae000] using SAR=1/1

[libx264 @ 0x1cae000] using cpu capabilities: MMX2 SSE2Fast SSSE3 SSE4.2

[libx264 @ 0x1cae000] profile Main, level 4.1

[libx264 @ 0x1cae000] 264 - core 152 r2854 e9a5903 - H.264/MPEG-4 AVC codec - Copyleft 2003-2017 - http://www.videolan.org/x264.html - options: cabac=1 ref=1 deblock=1:0:0 analyse=0x1:0 me=dia subme=0 psy=1 psy_rd=1.00:0.00 mixed_ref=0 me_range=4 chroma_me=0 trellis=0 8x8dct=0 cqm=0 deadzone=21,11 fast_pskip=1 chroma_qp_offset=0 threads=6 lookahead_threads=1 sliced_threads=0 nr=0 decimate=1 interlaced=0 bluray_compat=0 constrained_intra=0 bframes=3 b_pyramid=2 b_adapt=1 b_bias=0 direct=1 weightb=1 open_gop=0 weightp=1 keyint=250 keyint_min=23 scenecut=40 intra_refresh=0 rc_lookahead=10 rc=crf mbtree=1 crf=23.0 qcomp=0.60 qpmin=0 qpmax=69 qpstep=4 vbv_maxrate=3958 vbv_bufsize=7916 crf_max=0.0 nal_hrd=none filler=0 ip_ratio=1.40 aq=1:1.00

[segment @ 0x1cc6b40] Opening '/share/CACHEDEV1_DATA/.qpkg/EmbyServer/programdata/transcoding-temp/e11e0ea4f6f72628a52074132c35efec0.ts' for writing

Output #0, segment, to '/share/CACHEDEV1_DATA/.qpkg/EmbyServer/programdata/transcoding-temp/e11e0ea4f6f72628a52074132c35efec%d.ts':

Metadata:

encoder : Lavf58.12.100

Stream #0:0: Video: h264 (libx264), yuv420p, 720x400 [sAR 1:1 DAR 9:5], q=-1--1, 23.98 fps, 90k tbn, 23.98 tbc

Metadata:

encoder : Lavc58.18.100 libx264

Side data:

cpb: bitrate max/min/avg: 3958000/0/0 buffer size: 7916000 vbv_delay: -1

Stream #0:1: Audio: aac (LC), 48000 Hz, 5.1, fltp, 384 kb/s

Metadata:

encoder : Lavc58.18.100 aac

frame= 49 fps=0.0 q=28.0 size=N/A time=00:00:02.70 bitrate=N/A speed=5.41x
