darbos 0 Posted July 2, 2018 Posted July 2, 2018 Hi, I just moved over to Emby coming from Plex for the past 3 years or so. I never even knew Emby existed until a couple weeks ago, I love the interface, much nicer. I really want to stay with using Emby, I have a few remote users as well, about 8. Is it possible for someone to review my configuration and suggest some things to help with performance? I am having some people having buffereing and and video stops after a few seconds. They were all using plex without these problems, Im sure its just some tweaking i need to do. From reading though it sounds like transcoding is a lot more intense on emby then plex. I currently run emby on an ubuntu 16 vm thats on a dell r720. I have 6 vcpus and 32g ram dedicated to emby as well as a 2 port vswitch. Im seriously considering taking a dell r710 with dual xeons (2.5g i think) and 64g ram and just installing ubuntu and emby on that, dedicated server. any thought? Ok so I also run emby behind nginx. Im not sure what all you would like to see Ill try my best to provide what I can, i really apprciate it if this can happen!!! I dont feel like nginx is my problem, i think it is more emby settings. nginx config. i took most from these forums: worker_processes 2; events { worker_connections 8192; } http { include mime.types; default_type application/octet-stream; server_tokens off; gzip on; gzip_disable "msie6"; gzip_comp_level 6; gzip_min_length 1100; gzip_buffers 16 8k; gzip_proxied any; gzip_types text/plain text/css text/js text/xml text/javascript application/javascript application/x-javascript application/json application/xml application/rss+xml image/svg+xml; tcp_nodelay on; sendfile off; ## Default Listening ## server { listen 80 default_server; listen [::]:80 default_server; server_name _; return 301 https://$host$request_uri; } ##EMBY Server## server { listen [::]:443 ssl http2; listen 443 ssl http2; server_name xx.xx.xx; server_tokens off; etag on; ssl_certificate /etc/letsencrypt/live/xx.xx.xx/fullchain.pem; ssl_certificate_key /etc/letsencrypt/live/xx.xx.xx/privkey.pem; ssl_trusted_certificate /etc/letsencrypt/live/xx.xx.xx/fullchain.pem; ssl_protocols TLSv1 TLSv1.1 TLSv1.2; ssl_ciphers 'ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES256-GCM-SHA384:TLS13-CHACHA20-POLY1305-SHA256:TLS13-AES-256-GCM-SHA384'; ssl_prefer_server_ciphers on; #ssl_dhparam /etc/ssl/certs/dhparam.pem; ssl_stapling on; ssl_stapling_verify on; ssl_session_timeout 1d; ssl_session_cache shared:SSL:50m; ssl_session_tickets on; resolver 8.8.8.8 8.8.4.4 valid=200s; resolver_timeout 5s; add_header Strict-Transport-Security 'max-age=31536000; includeSubDomains; preload'; add_header X-XSS-Protection "1; mode=block"; add_header X-Frame-Options SAMEORIGIN; add_header X-Content-Type-Options nosniff; http2_max_field_size 16k; http2_max_header_size 32k; ssl_ecdh_curve secp384r1; proxy_set_header Host $host; fastcgi_pass_request_headers on; root /var/www/domain; index index.php index.html; access_log /var/log/nginx/apps.access.log; error_log /var/log/nginx/apps.error.log; location / { # Send traffic to the backend proxy_pass http://10.1.x.x:8096; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-for $proxy_add_x_forwarded_for; proxy_set_header Host $host; proxy_set_header X-Forwarded-Proto $remote_addr; proxy_set_header X-Forwarded-Protocol $scheme; proxy_redirect off; # Send websocket data to the backend aswell proxy_http_version 1.1; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection "upgrade"; } } server { //this is for ombi listen 80; server_name xx.xx.xx; return 301 https://$server_name$request_uri; client_max_body_size 25M; } server { listen 443 ssl; server_name xx.xx.xx; ssl on; ssl_certificate /etc/letsencrypt/live/xx.xx.xx/fullchain.pem; ssl_certificate_key /etc/letsencrypt/live/xx.xx.xx/privkey.pem; #ssl_session_cache shared:SSL:10m; ssl_protocols TLSv1.1 TLSv1.2; ssl_ciphers 'EECDH+AESGCM:EDH+AESGCM:AES256+EECDH:AES256+EDH'; ssl_prefer_server_ciphers on; #ssl_dhparam /etc/letsencrypt/dhparam.pem; add_header Strict-Transport-Security "max-age=31536000; includeSubDomains" always; proxy_buffering off; location / { proxy_pass http://10.1.x.x:5000; } } } i have limit remote streaming to 10m per stream /transcode is a dir i made - its on the same disk, the os and the r710 is all ssd. nfs exports from unraid to mount my movies/shows/music... I did buy premier I have gig down 45m up internet public and private ports are set to 80-443 the cert path is empty since nginx nadles that. external domain is mine xx.xx.xx. handkled by reverse proxy setting. what other stuff can i show and be helpful? I would love someone to review my logs as well if possible...im just not sure how that should be done, i dont think sharing that here is the best idea? thank you!

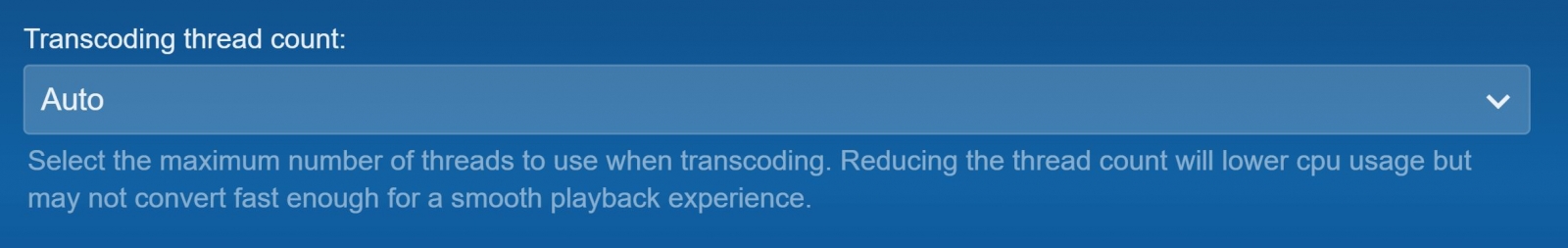

Guest asrequested Posted July 2, 2018 Posted July 2, 2018 It looks like you're only providing 6 logical processors and telling the server to use 8 logical processors per transcode.

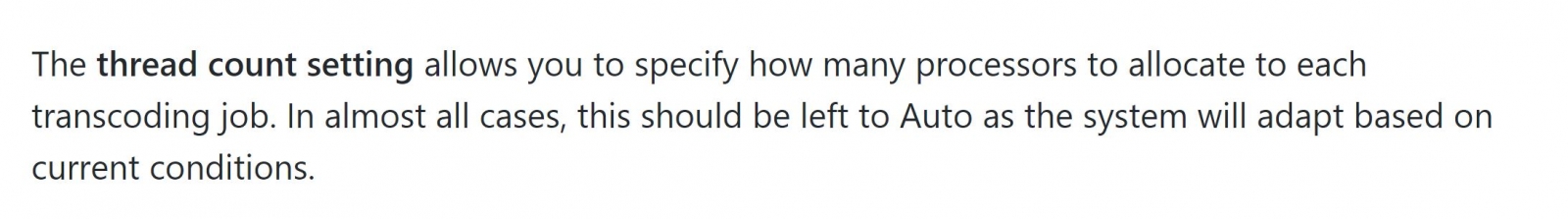

Guest asrequested Posted July 2, 2018 Posted July 2, 2018 Did you read the wiki? https://github.com/MediaBrowser/Wiki/wiki/Transcoding
Guest asrequested Posted July 2, 2018 Posted July 2, 2018 (edited) I do think the wording in the server needs to be amended. It doesn't specify 'each transcoding job' Edited July 2, 2018 by Doofus
Guest asrequested Posted July 2, 2018 Posted July 2, 2018 I have a 24 thread CPU, and I just leave it on auto.
darbos 0 Posted July 2, 2018 Author Posted July 2, 2018 thanks I was looking into that earlier today and ran across a few threads that said to avoid auto. I was reading the wiki but missed that thank you, ill go through that again. So, it sounds like you run emby on a server? no virtualization? I hae that extra dr710 24cpu with 64g ram, would it be worth it to install ubuntu on it and just use it for emby? thanks again for taking the time to review
Guest asrequested Posted July 2, 2018 Posted July 2, 2018 thanks I was looking into that earlier today and ran across a few threads that said to avoid auto. I was reading the wiki but missed that thank you, ill go through that again. So, it sounds like you run emby on a server? no virtualization? I hae that extra dr710 24cpu with 64g ram, would it be worth it to install ubuntu on it and just use it for emby? thanks again for taking the time to review Yes, I have a machine that only runs the Emby server. Not Linux, though. For transcoding, you may want to do a simple diversity calculation. I imagine not all of your users are online at once, and not all of those will require transcoding. Some of these guys have taken advantage of using multiversioning, to limit the amount of transcoding, needed. https://github.com/MediaBrowser/Wiki/wiki/Movie%20naming#multi-version-movies
darbos 0 Posted July 2, 2018 Author Posted July 2, 2018 sold. putting emby on the r710. i assume your running windows server 16? may I ask why? Just personal prenference or any techical reason that I should consider? you are correct they are never all watching at the same time, its frequent on 1 weekend day to have 5-6 watching though. That multi-versioning is intresting...wouldnt that just give your users a choice on what one they want to watch? they wouldnt know which one would be more friendly
darbos 0 Posted July 2, 2018 Author Posted July 2, 2018 Any tips / gotchas / heads up for moving? I i took a backup using the config backup plugin, i havent tested restores, is there anything else I should grab?
Guest asrequested Posted July 2, 2018 Posted July 2, 2018 (edited) sold. putting emby on the r710. i assume your running windows server 16? may I ask why? Just personal prenference or any techical reason that I should consider? you are correct they are never all watching at the same time, its frequent on 1 weekend day to have 5-6 watching though. That multi-versioning is intresting...wouldnt that just give your users a choice on what one they want to watch? they wouldnt know which one would be more friendly Actually, just Windows 10. I just don't need more than that. With multi-versioning, if the user is on a device that doesn't have the bandwidth or capability of playing the files, the version that is more able to be played, will be streamed. I just let my sever do all the work. that's why I chose a CPU with the strength that it has. More space for more movies So you're moving to windows or staying with Linux? Either way, you'll need to recreate the libraries. The backup plugin saves user info and watched lists etc. Edited July 2, 2018 by Doofus
darbos 0 Posted July 2, 2018 Author Posted July 2, 2018 gotcha. yea Im gonna stay on ubuntu, thats kinda what I figured that i would have to download all the metadata again. its really the user settings and playback, all that. hey you seem to be knowledable with emby....ive looked everywhere for a tautulli alternative for emby but nothing. you happen to know of any good solutions for live monitoring and history? thanks
Guest asrequested Posted July 2, 2018 Posted July 2, 2018 (edited) There is a stats plugin. There was a recent discussion on this, in one of these threads. https://emby.media/community/index.php?/topic/56640-developing-a-standalone-embystat-server/ https://emby.media/community/index.php?/topic/57079-tautulli-or-other-advanced-statistics/?hl=tautulli Edited July 2, 2018 by Doofus
darbos 0 Posted July 2, 2018 Author Posted July 2, 2018 how can i restore with that plugin? i got my server up and installed emby, instllaed the backup restore plugin, but when i goto settings it only give me the option to backup?
darbos 0 Posted July 2, 2018 Author Posted July 2, 2018 spoke to soon. i just created a backup on the same network share and then the restore option came up and had my older one.
Luke 42077 Posted July 8, 2018 Posted July 8, 2018 From reading though it sounds like transcoding is a lot more intense on emby then plex. I wouldn't say this is true. We both use ffmpeg for transcoding. However ,it's possible that Emby might not enable certain things out of the box that would otherwise help though. One example might be hardware transcoding support.
Luke 42077 Posted July 8, 2018 Posted July 8, 2018 thanks I was looking into that earlier today and ran across a few threads that said to avoid auto. I would suggest leaving it on auto as ffmpeg tends to do a nice job of deciding how many threads it wants to use.
