Serving pumping out live TV at 20Mbps despite streaming setting of 4Mbps

[gene0915 42]

I recently changed my internet plan. I now have 500 down and 50 up (more like 30 up but who's counting).



Despite having my brothers profile set to 4Mbps and the streaming quality set at 4Mbps, it seems that live TV is being blasted out at 20Mbps:





I'm also including a log file from around the time he was having problems. What's happening on his side, even though he has Emby on his Roku to 4Mbps, he gets a LOT of buffering/pauses. His internet speeds are I think, 20-25Mbps down and 5Mbps up.



I found a few other posts about something really similar, Emby ignoring the streaming quality options when live TV is being streamed, but those were regarding the Android client.



Known bug? (Using the latest server and latest Roku version of the app)

football pausing.txt

[Luke 42077]

Can you look in the transcode temp folder while this is happening. Try opening some of the segment files in something like VLC. See what it reports as the bitrate of those files. Thanks.

[Happy2Play 9780]

The log show "bitrate max/min/avg: 3616000" and your screenshot shows Emby total under 4Mbs.  If you expand Network Activity does it show Emby is using that bandwidth?

[Luke 42077]

Thanks @@Happy2Play for the observation.

[JeremyFr79 228]

The log show "bitrate max/min/avg: 3616000" and your screenshot shows Emby total under 4Mbs.  If you expand Network Activity does it show Emby is using that bandwidth?

Actually look again, it's showing 4MBps which is roughly 32Mbps notice the big B instead of little b for B/sec

[Happy2Play 9780]

That is what I was just going to suggest a bits verses bytes comparison.



So which is correct?  Windows or FFMPEG since Windows shows 3,930,743 Bytes/sec and ffmpeg shows a bitrate of 3616000.

Edited October 8, 2017 by Happy2Play

[gene0915 42]

The log show "bitrate max/min/avg: 3616000" and your screenshot shows Emby total under 4Mbs.  If you expand Network Activity does it show Emby is using that bandwidth?



New screenshot per your request:



Edited October 8, 2017 by gene0915

[gene0915 42]

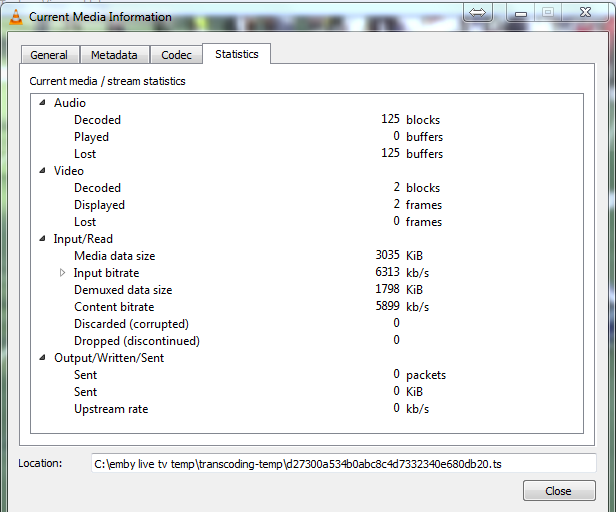

Can you look in the transcode temp folder while this is happening. Try opening some of the segment files in something like VLC. See what it reports as the bitrate of those files. Thanks.



Here ya go:



[Happy2Play 9780]

@@gene0915 Are there multiple streams then?  It reports 2 different addresses.

[Happy2Play 9780]

Here ya go:





Doesn't show video or overall bit rate though.

[gene0915 42]

@@gene0915 Are there multiple streams then?  It reports 2 different addresses.



Afraid I don't understand.



Here is a screen grab from another tab, does this help?



[Happy2Play 9780]

@@gene0915 Are there multiple streams then?  It reports 2 different addresses.



We posted at the same time, I was referring to post #7.

[gene0915 42]

Actually look again, it's showing 4MBps which is roughly 32Mbps notice the big B instead of little b for B/sec



Correct. In Windows resource monitor, B(ytes)/second.... not bits per second.

[gene0915 42]

We posted at the same time, I was referring to post #7.



Ok, I understand and see what you mean now. Of those two streams, the 2nd one is going to my brother (that 73.blah is his IP address). The first stream is going to metrics.plex.tv?!?!?! Why is Emby sending my TV stream to Plex, am I reading that right?



EDIT: My brothers stream is around 500,000 B/s which translates into 4Mbps. Mystery solved on that one. But MediaBrowser sending to Plex????

Edited October 8, 2017 by gene0915

[Happy2Play 9780]

You are presenting multiple streams



addresses:  metrics.plex.tv and c-73-154-153---



@@Luke

Edited October 8, 2017 by Happy2Play

[gene0915 42]

You are presenting multiple streams



addresses:  metrics.plex.tv and c-73-154-153---



@@Luke



How? Why? I have Plex set up so it can see the HDHR but nobody is streaming TV from it. The only person streaming TV from my HDHR is my brother, via Emby. It looks like MediaBrowser is streaming TV up to that metrics.plex.tv address. Why is it doing that?



EDIT: I deleted HDHR DVR from Plex but MediaBrowser is still sending a non-stop stream of data to metrics.plex.tv.

Edited October 8, 2017 by gene0915

[Luke 42077]

Well it's not Emby Server sending data anywhere, it is a remote app downloading from Emby Server.



So the question should be rephrased to why is metrics.plex.tv downloading from your Emby Server? I honestly can't say, sorry. It sounds like perhaps some Emby Server content was added into a plex server. That's about all i can think of based on this little bit of information.

[gene0915 42]

Well it's not Emby Server sending data anywhere, it is a remote app downloading from Emby Server.



So the question should be rephrased to why is metrics.plex.tv downloading from your Emby Server? I honestly can't say, sorry. It sounds like perhaps some Emby Server content was added into a plex server. That's about all i can think of based on this little bit of information.



Do I need to raise hell with the folks over at Plex? I honestly have no idea how/why Plex could have tapped into Emby and why it's requesting a stream. Sounds really strange.



I have Emby and Plex setup on the same PC, maybe that has something to do with it?

[Luke 42077]

No, I don't think you have to do that. I think it has something to do with how you have the servers set up.

[gene0915 42]

No, I don't think you have to do that. I think it has something to do with how you have the servers set up.



If you could help me unravel the mystery, I would greatly appreciate it! I have no idea where to even start. When I set up Emby, I don't recall it asking/caring that Plex was on there as it was installed 2nd. Guess I'll comb through the config pages for both programs but why would Plex request that stream?

[Happy2Play 9780]

Does shutting down Plex server kill the Emby request?

[gene0915 42]

Does shutting down Plex server kill the Emby request?



Nope.

[Happy2Play 9780]

What client is your Brother using to connect to your Emby Server?

[gene0915 42]

What client is your Brother using to connect to your Emby Server?



Roku. I did some more digging and maybe I don't understand technology enough but what is gong on here with metrics.plex.tv?



[naeonline 27]

Do you connect to your server using teamviewer by chance?

What is in your hosts file?
