Question about H264 vs libx264

[PenkethBoy 2068]

I have some videos which are encoded as H264



When played on my Phone (via Wifi) they get transcoded

  Duration: 00:29:47.65, start: 0.000000, bitrate: 8386 kb/s
    Stream #0:0(eng): Video: h264 (High) (avc1 / 0x31637661), yuv420p, 1920x1080, 8062 kb/s, 25 fps, 25 tbr, 12800 tbn, 50 tbc (default)
    Metadata:
      handler_name    : VideoHandler
    Stream #0:1(eng): Audio: aac (LC) (mp4a / 0x6134706D), 48000 Hz, stereo, fltp, 317 kb/s (default)
    Metadata:
      handler_name    : SoundHandler
Stream mapping:
  Stream #0:0 -> #0:0 (h264 (native) -> h264 (libx264))
  Stream #0:1 -> #0:1 (copy)

to libx264.



Bit rate is not that high - so wondering why they would be transcoded?



Phone is a Sony Xperia X on android 7



Is H264 different from libx264??



Looking for ideas why and if i can change things to stop the transcoding if possible

[Luke 42078]

Hi there. In order for us to best help answer this, please follow the steps listed in:



Why is My Media Transcoding?



Thanks !

[PenkethBoy 2068]

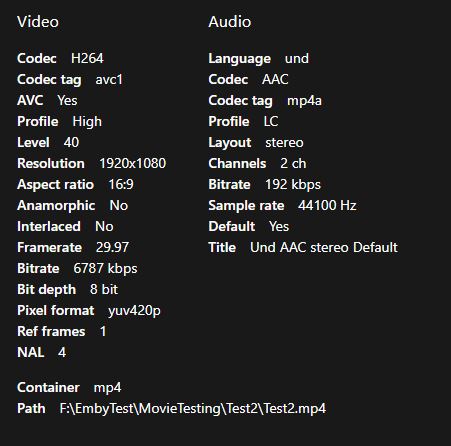

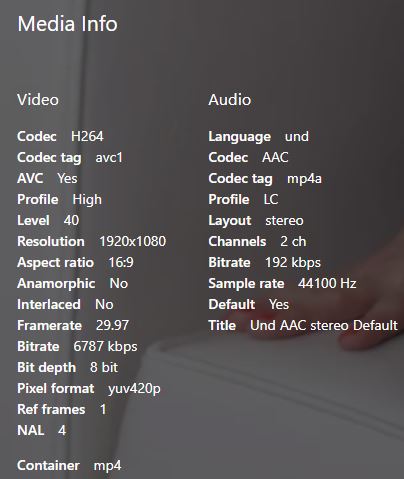

First, compare the media format of your file to the format supported by the Emby app. You can find the media info in the Emby Web Client, at the bottom of the detail page:

Where is the list of supported format by Emby APP?? - Found it



No subtitles - video quality is on Auto in App and on the server





noticed the bit rate is different in the details page and what ffmpeg is returning - not sure if thats significant?

Edited October 3, 2017 by PenkethBoy

[Happy2Play 9780]

You would have to post the full logs, server and transcode.

[PenkethBoy 2068]

Ok it matches supported formats



i.e. - MP4, AAC

[PenkethBoy 2068]

Ah ok found this in the log



&TranscodeReasons=ContainerBitrateExceedsLimit&



as its on Auto is it better to set a limit if the server is making the wrong guess on whats supported by bitrate

[PenkethBoy 2068]

Ok put max - bit rate to 1080p - 60MPs

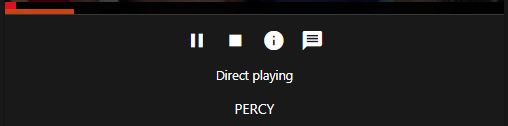

Played file and it says in Dashboard its direct playing



but its actually transcoding - can see ffmpeg process and transcode log created



tried a couple of other files and they do the same



I thought it was an easy answer - will raise a separate thread in android mobile sub forum

[Guest asrequested]

Post the transcode logs. I'd like to poke around, when I get home. And what is your phones Wi-Fi bandwidth?

Edited October 3, 2017 by Doofus

[Luke 42078]

The browser video player may have reported an error and therefore the web app automatically switched to a full transcode. when this happens i haven't yet tested the effect on the various reporting mechanisms, e.g. server dashboard, stats for nerds, etc.

[PenkethBoy 2068]

only error i see is after the video has been stopped

2017-10-03 22:48:35.408 Error HttpServer: Error in HttpListenerResponseWrapper: An established connection was aborted by the software in your host machine
	*** Error Report ***
	Version: 3.2.33.1
	Command line: C:\Users\TimPercy\AppData\Roaming\Emby-Server\System\MediaBrowser.ServerApplication.exe C:\Users\TimPercy\AppData\Roaming\Emby-Server\System\MediaBrowser.ServerApplication.exe C:\Users\TimPercy\AppData\Roaming\Emby-Server\System\MediaBrowser.ServerApplication.exe
	Operating system: Microsoft Windows NT 6.2.9200.0
	64-Bit OS: True
	64-Bit Process: True
	User Interactive: True
	Processor count: 8
	Program data path: C:\Users\TimPercy\AppData\Roaming\Emby-Server
	Application directory: C:\Users\TimPercy\AppData\Roaming\Emby-Server\System
	System.Net.Sockets.SocketException (0x80004005): An established connection was aborted by the software in your host machine
	   at System.Net.Sockets.Socket.Send(Byte[] buffer, Int32 offset, Int32 size, SocketFlags socketFlags)
	   at SocketHttpListener.SocketStream.Write(Byte[] buffer, Int32 offset, Int32 count)
	   at SocketHttpListener.Net.HttpResponseStream.InternalWrite(Byte[] buffer, Int32 offset, Int32 count)
	   at SocketHttpListener.Net.HttpResponseStream.DisposeCore()
	   at SocketHttpListener.Net.HttpResponseStream.Dispose(Boolean disposing)
	   at System.IO.Stream.Close()
	   at Emby.Server.Implementations.HttpServer.SocketSharp.WebSocketSharpResponse.CloseOutputStream(HttpListenerResponse response)
	System.Net.Sockets.SocketException
	   at System.Net.Sockets.Socket.Send(Byte[] buffer, Int32 offset, Int32 size, SocketFlags socketFlags)
	   at SocketHttpListener.SocketStream.Write(Byte[] buffer, Int32 offset, Int32 count)
	   at SocketHttpListener.Net.HttpResponseStream.InternalWrite(Byte[] buffer, Int32 offset, Int32 count)
	   at SocketHttpListener.Net.HttpResponseStream.DisposeCore()
	   at SocketHttpListener.Net.HttpResponseStream.Dispose(Boolean disposing)
	   at System.IO.Stream.Close()
	   at Emby.Server.Implementations.HttpServer.SocketSharp.WebSocketSharpResponse.CloseOutputStream(HttpListenerResponse response)

I will post logs in a few just trying out a couple of things on a different machine to see if any difference

Edited October 3, 2017 by PenkethBoy

[Luke 42078]

That looks like the html video player disconnecting after encountering an error, so then the app switched over to transcoding.

[PenkethBoy 2068]

Tested on two different Beta Servers (not netcore) 3.2.33.1



Mobile App on phone is 2.9.61



Bit rate on App set to 4k-120MPs - ie max



But transcodes when on Auto as well or any setting it appears



Phone is on WIFI - just tested at 24MBps



what ever i set the in App bandwidth to it transcodes - even though the dashboard shows as Direct playing?

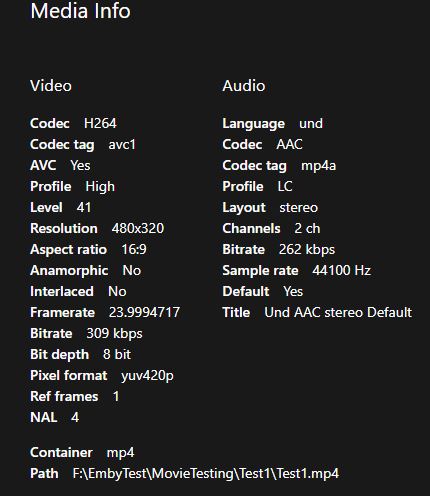

Have tried a low bit rate file





and a higher bitrate file





Logs [removed] for testing both of above files with trans log files



Over to the experts

Edited October 4, 2017 by PenkethBoy

[Luke 42078]

Yup see post #9.

[PenkethBoy 2068]

ok so is it an error with the phone App or the phone?

[Guest asrequested]

You have the same router that I was using. I found that my Wi-Fi connectivity was not very good. There isn't anything wrong with it, it's how its designed. After changing to the unifi AP, the difference is amazing. You may be experiencing something like I was.

[Happy2Play 9780]

Do you see the same issues while not on wifi?

[PenkethBoy 2068]

dont have external access setup to use 4g on the phone.

[Guest asrequested]

You have to forward your port in your router

[PenkethBoy 2068]

You have the same router that I was using. I found that my Wi-Fi connectivity was not very good. There isn't anything wrong with it, it's how its designed. After changing to the unifi AP, the difference is amazing. You may be experiencing something like I was.

Dont see any wifi connectivity issues - always works and the AP is in the next room with Max bars in android so dont think it's that

[PenkethBoy 2068]

You have to forward your port in your router

Yeah no Sh*t - no not doing that

[Luke 42078]

Ok so this is the android app. it appears that the video player in the app had a problem direct playing the file, so we automatically switched to transcoding.



as for possible reasons why, if you encoded these files using handbrake's web optimized mp4 feature, libvlc fails to play those for whatever reason.



does this answer your question?

[PenkethBoy 2068]

Those files were downloaded from the web - i have not re encoded them with handbrake



i will test further to see if a Handbrake encoded file (dont use the web optimised option) does or does not transcode



Is there any way to tell a file has been "web optimised" ???

[camerons 12]

Would maybe remuxing the mp4 to an mkv using MKVToolNix be a good idea to get rid of the web optimized flag? I know the MKV container does not support it.

[PenkethBoy 2068]

Thanks but for thousands of mp4 that may or may not be web optimised that would be a huge task to undertake - which i would like to avoid

[PenkethBoy 2068]

@@Luke



I tested a file encoded by Handbrake with "web optimised" tag selected and yes the Android app fails to play the file at all - does not fall back to transcoding either - but thats a separate issue.



So i am sure that the issue i have is not related to the web optimised flag being set - as all the files i have tested are playing ok but transcoding.



I have tried several files of various types - and all fail to direct play but transcode and play fine.



Is there a way to obtain some more info from the Android App as to what it does not like about these files so i can figure out what needs changing etc?
