Question about https

[darkassassin07 652]

Any and all attempts to connect to my emby server using the https port (8920) result in the connection timing out.

This happens with localhost:8920 on the server machine as well as any device using the local address in LAN, and devices using the WAN ip/domain. (all of these work fine with http)



The browser loads for ages and eventually times out unable to find the server.



Attached is my latest server log.





------Edit------



When you go yo make a connection to your server...

Dont forget to prefix if with https://



Sigh....

server-63636624000.txt

Edited July 28, 2017 by darkassassin07

[mastrmind11 722]

Do you have a cert?

[darkassassin07 652]

Im using the default self-signed cert (im aware of that issue), however im not even getting that far, the browsers cant find the server all together let alone receive the cert and decided if its valid.

[Luke 42077]

The browsers are going to reject the self signed cert. For best results you'll want a trusted cert, like letsencrypt for example.

[darkassassin07 652]

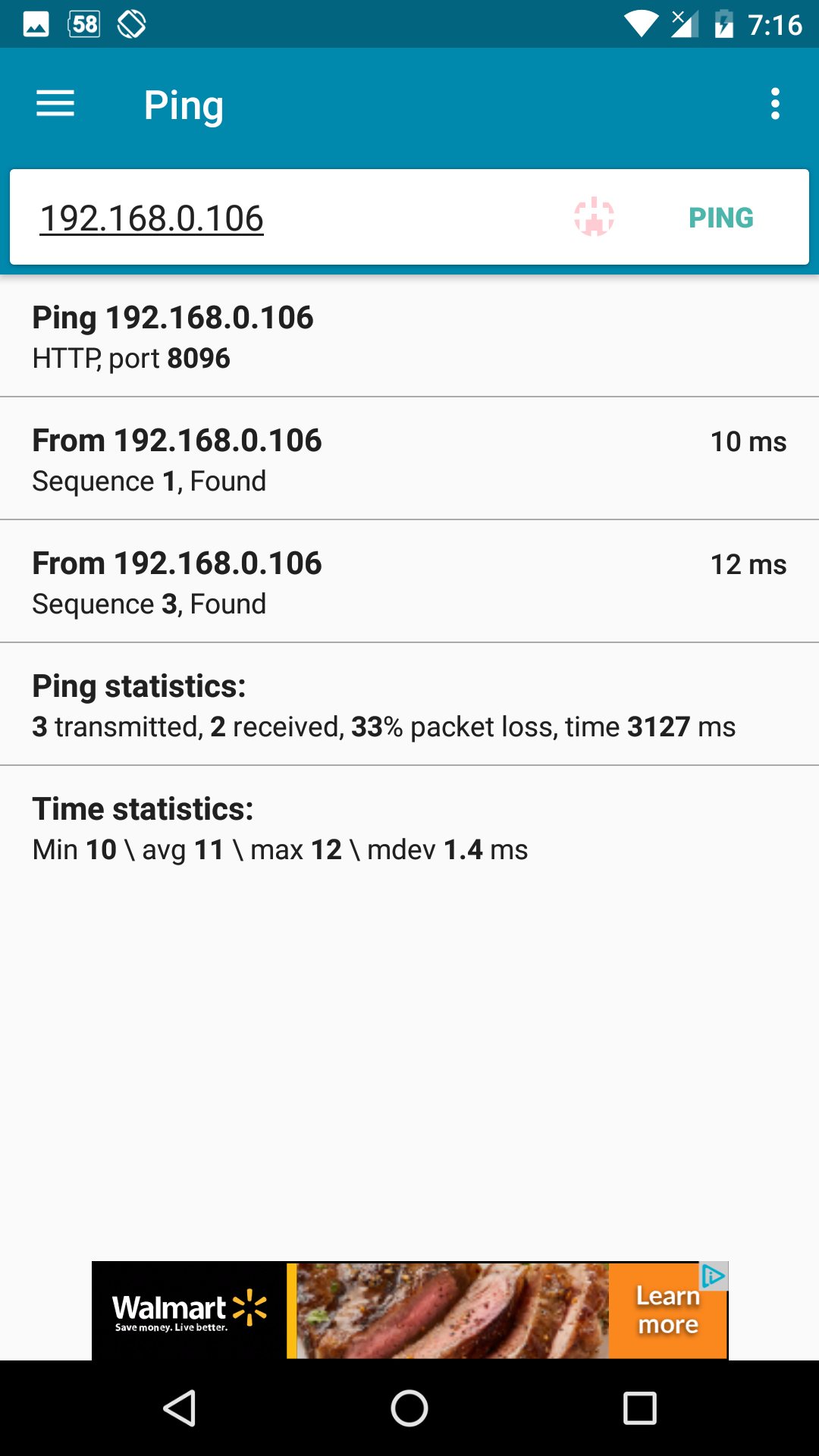

Using "ping tools network utilities" from google play android if I probe port 8096 I get a response, however probing port 8920 yields no response

[darkassassin07 652]

As i said, its not a certificate issue, the https server is not available at all, it is not serving up a certificate at all as it is not accepting ANY connections o the https port

[darkassassin07 652]

[darkassassin07 652]

[Luke 42077]

Can you provide a server log from initial server startup? Thanks.

[darkassassin07 652]

Here:

server-63636651374.txt

[Luke 42077]

Ok, no startup errors, which means the server was able to bind to the port.



It looks to me like something in your environment is just blocking access on that port. It could be related to security software you may have installed and or windows firewall.

[darkassassin07 652]

Ill take a look through avast and windows firewall and see if i can find anything off

[darkassassin07 652]

Well, avasts firewall is not active, and MediaBrowser.serverapplication.exe in the emby-server folder is allowed through windows firewall.



Though I don't think that's the problem as this problem happens on the server machine using localhost:8920 as well

Edited July 26, 2017 by darkassassin07

[darkassassin07 652]

I just tried swapping the port numbers in advanced settings, making http 8920 and https 8096. The problem persists, http works on 8920, but https is still unreachable

[Tur0k 148]

Have you checked your advanced inbound firewall rules in your windows control panel. You will need an explicit allow rule for TCP traffic on port 8920 on whatever policy group you assign you local LAN on the server (private, public, domain). Also, if you plan on making this available on the public Internet there is an addition inbound setting something like "allow edge traversal" you will need to enable.





Sent from my iPhone using Tapatalk

Edited July 26, 2017 by Tur0k

[darkassassin07 652]

Windows firewall has an inbound rule for emby to allow all ports both udp and tcp. I also manually added a rule for inbound 8920tcp as well as allow emby outbound. That should not be the problem though. 8096 http works fine, but swapping https to 8096 still doesn't work.



Emby referring to the .exe i mentioned a few posts up.



No change :/

Edited July 26, 2017 by darkassassin07

[chef 3810]

This might be a stupid question but are you on a 3G or 4G network on your phone and typing in your public IP address with your HTTPS port?

Are you trying to use Https on your subnet? or logging in from your public IP?



"https://{PUBLIC_IP}:8920"



making sure that your modem/router has TCP/UDP ports forwarded?



Perhaps trying to change your port to: 443 for your HTTPS in the emby advanced configuration, port forward it on your router and try to connect again.



I'm not sure if this is helping.

[Jdiesel 1431]

I don't see any mention of the self signed certificate in your log files. Can you check the SSL directory in the Emby userdata folder for any pfx files?



Edit: After a further look I do not see any mention of a pfx certificate being loading in my logs either anf https is working for me. At one point in time that information was displayed as I recall using it to troubleshoot a certificate issue I was having.

Edited July 26, 2017 by Jdiesel

[darkassassin07 652]

All the local devices are on the same subnet (192.168.0.x) and i am using the local ip of the server to attempt connections in network.



Though localhost doesn't leave the system, disregarding the network and that fails to find the server as well.



The ssl directory contains 2 .pfx files

[Luke 42077]

Neither of the logs you provided report any incoming https requests which would suggest the traffic is not reaching Emby Server.

[Tur0k 148]

Ok, now that you confirmed that the port is open on your software firewall confirm the following:



1. Confirm that you are adjusting

The field "local HTTPS port number" (settings - server dashboard - advanced) this is the field that adjusted the port that Emby listens on for encrypted connections. The public HTTPS port number" is used to support port translation from your firewall to your Emby server.

2. Is UAC enabled?

3. Is Emby running with admin permissions on the server?

4. Confirm that the port isn't being used by another service.

From an elevated command prompt run:



netstat -abn.



Look for services with a local address of 0.0.0.0:8920. Try to tie it to a service. If you find one you may need to either move its listening port or emby's listening port.



Sent from my iPhone using Tapatalk

Edited July 26, 2017 by Tur0k

[Witmarquzot 0]

I got it to work by following the following direction to create my own ssl certificate



https://blog.didierstevens.com/2015/03/30/howto-make-your-own-cert-with-openssl-on-windows/

You may need to ctrl+shift+C to exit open ssl and redo

set OPENSSL_CONF=C:\OpenSSL-Win32\bin\openssl.

between

req -new -x509 -days 1826 -key ca.key -out ca.crt

and

genrsa -out ia.key 4096

then followed

https://stackoverflow.com/a/38363589/6410573



Then when i went to https://127.0.0.1:8920 and it worked

[Witmarquzot 0]

All the local devices are on the same subnet (192.168.0.x) and i am using the local ip of the server to attempt connections in network.



Though localhost doesn't leave the system, disregarding the network and that fails to find the server as well.



The ssl directory contains 2 .pfx files

 Are choisng a .pfx or a directory?

you have to choose  a .pfx

else it won;t load

[darkassassin07 652]

If i manually point emby at the self-signed cert it created in the ssl folder i get the error:



System.Security.Cryptography.CryptographicException: The specified network password is not correct.   (in attached log)



what is the password for the default cert?









Edit: at first I wasn't specifying a cert, I was letting emby create/chose its own. now i'm manually pointing it at the .pfx its created and getting an error.

server-63636701584.txt

Edited July 27, 2017 by darkassassin07

[Luke 42077]

You can't manually point it to the self signed cert. To set one up manually, you need your own cert. You might as well just do that anyway because as we've been saying, you say you want to play with https and the browsers are going to reject the self signed cert anyway.
