Beelink GT1 HEVC/X265 Decode

[Kiroha 1]

Hello Emby Community



I'm new to this soft and recently buy a Beelink GT1 device



http://www.bee-link.com/Beelink-MiniPC-TV-BOX-54-1.html



I'm use it with a Synology DS 713+ as Emby server



Yesterday I tested a X265 Video and found that the Beelink doesn't decode the flux but the synology transcode it. I've got Kodi on the Beelink and the decode work great o it.



Does I've miss something in parameters ?



Thx a lot for answers

[ebr 16169]

Hi, we haven't tested that particular box but we query the device to see if it reports support for hevc and hevc 10bit.  If you are transcoding due to that then the device must be reporting that it cannot handle it.

[Kiroha 1]

The ARM S912 support 4K 10Bit @60Hz



Any solution for you to connect directly to my server for inspect log ?



Thx

[ebr 16169]

You can send a log from the app.  See instructions in the Android TV section here: How to Report a Problem

[Kiroha 1]

Thx it's done

• Exactly what you were doing and what happened.  Include the name of whatever you played if it is a playback problem : Play Captain America Civil War

• Video

  ID : 1

  Format : HEVC

  Format/Info : High Efficiency Video Coding

  Format profile : Main@L4@Main

  Codec ID : V_MPEGH/ISO/HEVC

  Duration : 2h 27mn

  Bit rate : 4 003 Kbps

  Width : 1 920 pixels

  Height : 804 pixels

  Display aspect ratio : 2.40:1

  Frame rate mode : Constant

  Frame rate : 23.976 (24000/1001) fps

  Color space : YUV

  Chroma subsampling : 4:2:0

  Bit depth : 8 bits

  Bits/(Pixel*Frame) : 0.108

  Stream size : 4.13 GiB (66%)

  Default : Yes

  Forced : No

  Color range : Limited

  Color primaries : BT.709

  Transfer characteristics : BT.709

  Matrix coefficients : BT.709



  Audio

  ID : 2

  Format : DTS

  Format/Info : Digital Theater Systems

  Format profile : HRA / Core

  Mode : 16

  Format settings, Endianness : Big

  Codec ID : A_DTS

  Duration : 2h 27mn

  Bit rate mode : Constant

  Bit rate : 2 046 Kbps / 1 509 Kbps

  Channel(s) : 6 channels

  Channel positions : Front: L C R, Side: L R, LFE

  Sampling rate : 48.0 KHz

  Frame rate : 93.750 fps (512 spf)

  Bit depth : 24 bits

  Compression mode : Lossy

  Stream size : 2.11 GiB (34%)

  Title : TrueFrench DTS-HD High Resolution 5.1 @2046kbps 24 bits

  Language : French

  Default : Yes

  Forced : No


• Any options you have changed from their default settings => No option change
• The time you sent the log => 22h43 GTM +1 Paris
• The name of the Emby user on the local server that was logged in at the time => Kiroha

[ebr 16169]

You have your audio setting set to "Downmix to Stereo" and are playing a DTS multi-channel track.  That may be why it is transcoding.



Can you post the media info as displayed in our web client detail page?  The above looks like maybe you ran media info against it or something.  Thanks.

[Kiroha 1]

Hello. I don't find where to set the audio setting. Is on server side or client side ?



Thx for answer

[ebr 16169]

In the app.  Last row on the home screen, first tile.

[Kiroha 1]

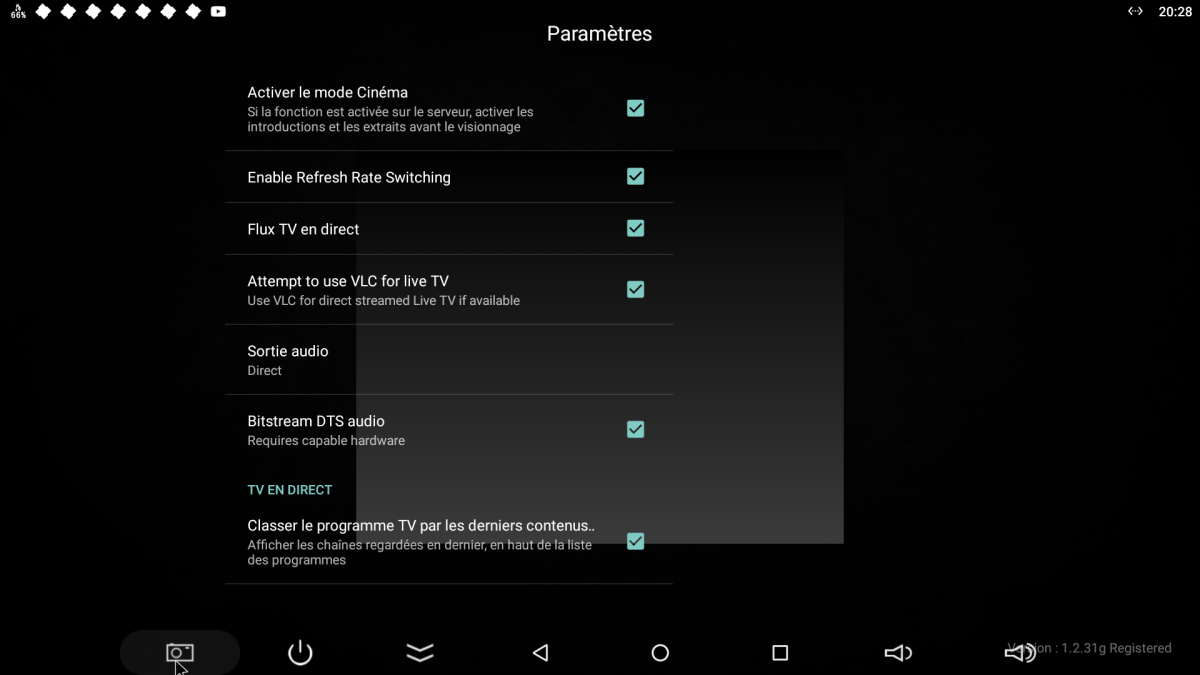

I just have option for direct or compatible and bitstream DTS

[ebr 16169]

Okay, "Compatible" was renamed to "Downmix to Stereo" a few versions ago but your translation file probably didn't adjust it.



In the log you submitted, it was set to "Compatible".

[Kiroha 1]

Ok I change to direct and no change. Synolgy continue to transcode



You need another log ?

Edited September 15, 2016 by Kiroha

[Kiroha 1]

Hmm i've just install Emby Theater on my Xbox One and same. All my X265 files are transcode by the synology

[ebr 16169]

Can you post the media info as displayed in our web client detail page?  The above looks like maybe you ran media info against it or something.  Thanks.



This will give me better information on why you are transcoding.

[RanmaCanada 494]

For the S912 devices you NEED to use SPMC as the internal player does not yet support the S912 as it is too new.  You could also try Archos media player as well, or MXPlayer.



Please go into your settings and enable external players, and use one.  As someone who exclusively uses Chinese Android boxes for Emby, I am pretty much the end user expert.



EBR, this is another issue with people not understanding that not all the hardware will be supported by the software.  All OP needs to do is play it through SPMC or Kodi and it will be fine.



If I am stepping on your toes, please let me know.

[Kiroha 1]

Hello

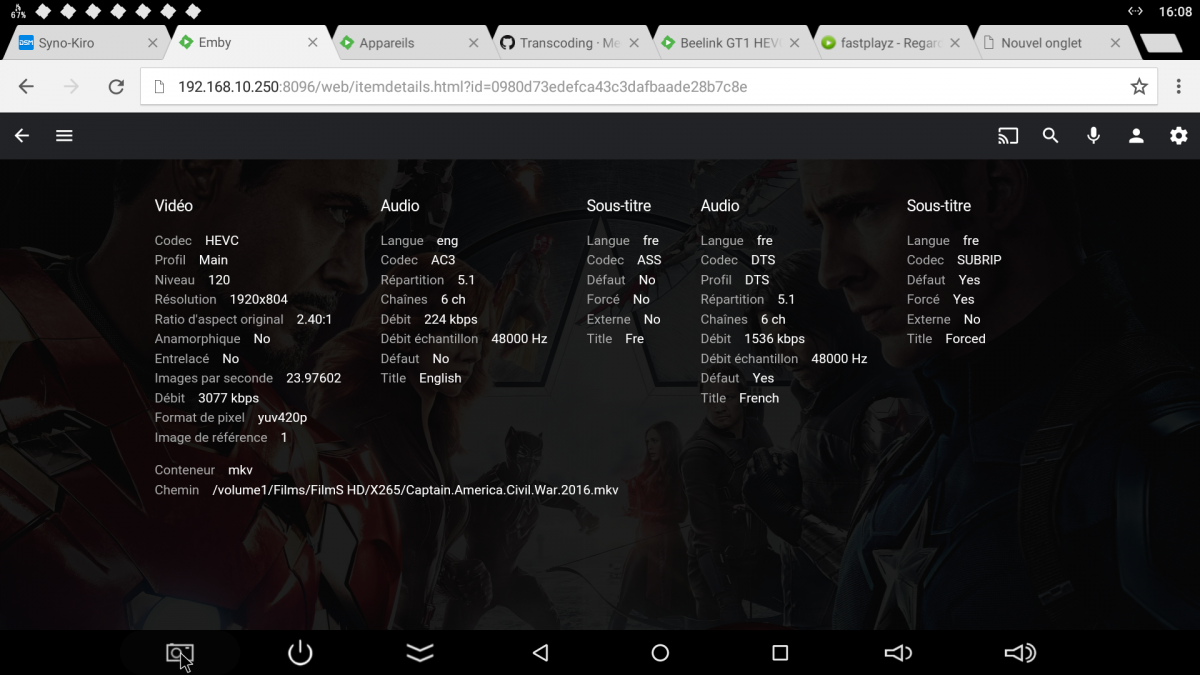

Here is the screen for Web App.





Ranma, In the app I don't find option to use external player. The only option is to use VLC for live TV.



Thanx for help

[RanmaCanada 494]

Hello



Here is the screen for Web App.





Ranma, In the app I don't find option to use external player. The only option is to use VLC for live TV.



Thanx for help

EBR added it like 3 weeks ago.  Unless it was only added to the beta and not rolled out to the mainstream app.



And as for bitstreaming, the non -H products will not do TRUE-DTS or DTS-MA.  They can only do regular DTS.

[ebr 16169]

External players are only in beta at this point.

[RanmaCanada 494]

External players are only in beta at this point.

Thanks for that.  The external player option is a total godsend.  Though VLC support for the amilogic devices has been getting a lot better.  I could finally play 10bit hevc anime with SSA subs and it was direct playing.  Now, if only DTS sound would work haha.  But it's possible it was because I don't have it hooked up to my reciever atm, and I don't think my TV does DTS.
