ATSC3 / AC-4 broadcasts failing

[brucearp 4]

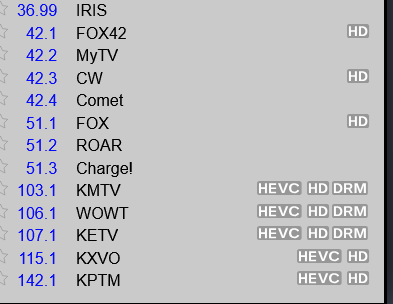

We have 2 open ATSC3 channels we can watch, KPTM (Fox - Omaha) - 142.1 and KXVO - (Roar - Omaha) - 115.1.  When I try to watch either one through Emby using either a web browser or the Windows App, I get the error:

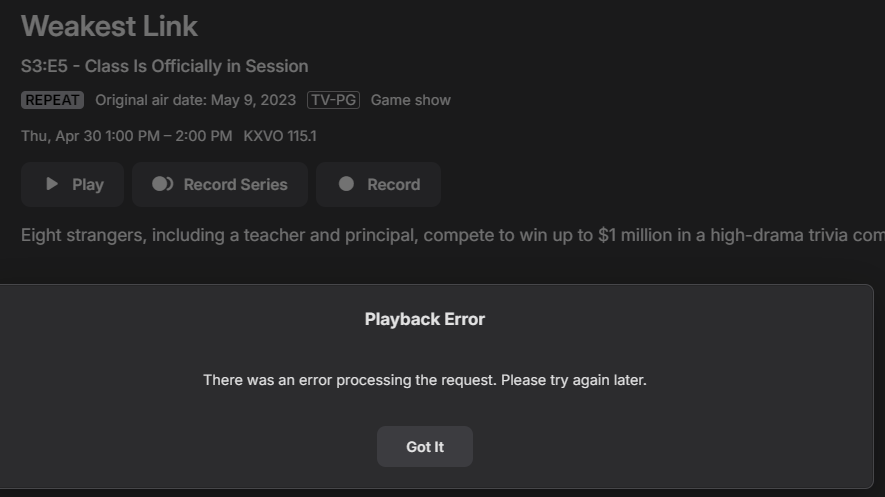

Playback Error
There was an error processing the request.  Please try again later.

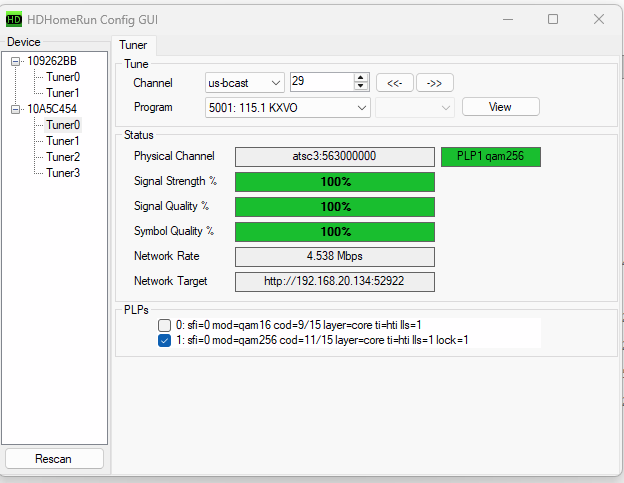

Signal Strength and Quality all seem to be good watching the HDHomeRun Config GUI app.

The channels do play fine using the HDHomeRun app on Windows.



The stream does work if I watch via RTP in VLC.

•  Emby Server - 4.9.3.0ffmpeg-transcode-66a9a7d0-5c90-45f7-b95f-70b8d9d06777_1.txt
• Server Hardware - HP-ENVY TE01-4xxx
  • Windows 11 Home (25H2 - 26200.8246)
  • Intel Core i5-13400
  • 12 GB RAM
  • Intel UHD Graphics 730
• Tuner Hardware - HDHomeRun Flex4K
  • Firmware: 20260326

Log files attached.

From the transcoding log, it appears that FFMPEG is blowing up trying to transcode the AC-4 audio possibly?



Thanks

Bruce

embyserver.txt hardware_detection-63913151331.txt ffmpeg-transcode-f2cc5a74-9154-4a88-9e56-a9ea9b07fc69_1.txt ffmpeg-transcode-a347711a-8144-444a-969b-c2354fe97138_1.txt ffmpeg-transcode-1aae9d8f-89ef-4ded-b30e-820a08cfefc9_1.txt ffmpeg-transcode-bf58a248-ba4f-4fa4-aa1a-fb4c1bc6a9e9_1.txt

[alex77777 44]

@brucearpDo you know if these channels use DRM encryption? Its very common among ATSC 3.0 Broadcasts, if so the channel cannot be viewed using the HDHomerun.

[brucearp 4]

Nope, those 2 do not have DRM on them.  I can watch them in the HDHomeRun app, they just fail in Emby.  The stream will also play in VLC (minus audio, video only).



Bruce

[emveepee 133]

Do you have other stations with multiple PLP's

Martin

[brucearp 4]

No, 115.1 and 142.1 are the only 2 ATSC 3.0 channels I can receive.  The other ATSC 3.0 channels in my area are DRM protected so I can't receive them.

[knoll126 11]

Sorry this is off topic, but what application (link?) are you using for the GUI tool? I am only aware of the website UI option and this seems pretty neat.

[brucearp 4]

15 hours ago, knoll126 said:

Sorry this is off topic, but what application (link?) are you using for the GUI tool? I am only aware of the website UI option and this seems pretty neat.

It is the windows config app, you can get it off their site under Support/Downloads.  I have 2 different ones, don't recall which is which, but one is HDHomeRun Config GUI and the other is HDHomeRun Setup.

Bruce

[Luke 42505]

@brucearpare you still having an issue with this?

[brucearp 4]

@LukeYes, still having the same issue.  I get the playback error in the browser on Windows.  On my TV (RokuTV), it gets to a % like it is buffering but then never plays and goes back to the spinning circle.  Uploaded more logs from trying it this morning.

HDHome Run App does play the channels.

Bruce

ffmpeg-transcode-b12bc81d-f8ac-4036-97be-6245644ce899_1.txt ffmpeg-transcode-e722c87d-2ff0-493c-9683-97029f274426_1.txt ffmpeg-transcode-f456cb2d-bbeb-4897-b256-e88a4d532f08_1.txt ffmpeg-transcode-6ab0fe9c-1d38-45eb-9743-a1a7cd0bbc91_1.txt ffmpeg-transcode-85f0aad3-40eb-4bba-b561-372e45651842_1.txt ffmpeg-transcode-199ab682-f40b-4f58-9a16-839ab8b1b5d0_1.txt ffmpeg-transcode-e8f77ba4-fbf0-46cb-9829-72294ae4b26b_1.txt ffmpeg-transcode-f6c1d4ad-8aa7-4e98-b099-b0c61ce7d5d4_1.txt ffmpeg-transcode-1ae5f8fe-49d0-4e21-b2bf-c9bc68a02694_1.txt ffmpeg-transcode-7f582d22-ab3d-48e7-87f4-d8f924f0f0d5_1.txt ffmpeg-transcode-39cbddd6-bc11-4b6e-bcd6-83d64af2b08d_1.txt ffmpeg-transcode-804659c5-6d31-48a7-bbeb-92b867dd6f0a_1.txt hardware_detection-63914421881.txt embyserver.txt ffmpeg-transcode-6d01d3be-4d11-49cf-806f-1fc197ed5415_1.txt ffmpeg-transcode-7ba377d9-6455-4f48-8ed6-822600ccbaae_1.txt ffmpeg-transcode-a3e3bfe5-5e83-4752-b148-3b5a4b06db0d_1.txt
