Demo Web Socket in Action via plugin

September 27, 2025

I have created a web socket , working in client (server - client - server routing) as a proof of concept. Took me absolutely ages (approx. 4 years) to finally get this working!

Here is the code

See Github:
WebSocket Demo and Code Sources

Emby WebSocket Demo Plugin (4.8.11)

This tutorial walks you through creating a minimal WebSocket demo plugin for Emby Server 4.8.11.0.
It adds a custom channel named websocketdemo, a dashboard test page, and demonstrates sending JSON messages from the client to the server and back.

What It Does

Dashboard button → sends a ping JSON payload over Emby’s WebSocket.
Server handler (WebSocketHandler) → deserializes, logs, and replies with a pong JSON payload.
Dashboard page → logs both the sent request and the server’s reply in real time.

Plugin File Structure

WebSocketDemo/
 ├─ Plugin.cs
 ├─ WebSocket/
 │   └─ WebSocketHandler.cs
 ├─ WebUI/
 │   ├─ WebSocketTest.html
 │   └─ WebSocketTest.js
 ├─ Properties/
 │   └─ AssemblyInfo.cs
 └─ WebSocketDemo.csproj

🛠 Step 1 — `Plugin.cs`

Registers the dashboard test page and the JS controller.
Notice how each page has a distinct Name (HTML vs JS).

public override IEnumerable<PluginPageInfo> GetPages()
{
    return new[]
    {
        new PluginPageInfo
        {
            Name = "WebSocketTest",
            EmbeddedResourcePath = GetType().Namespace + ".WebUI.WebSocketTest.html"
        },
        new PluginPageInfo
        {
            Name = "WebSocketTestjs",
            EmbeddedResourcePath = GetType().Namespace + ".WebUI.WebSocketTest.js"
        }
    };
}

🛠 Step 2 — `WebSocketHandler.cs`

Implements IWebSocketListener.
Emby automatically discovers and hooks it into the WebSocket system.

public class WebSocketHandler : IWebSocketListener
{
    private readonly IJsonSerializer _json;
    private readonly ILogger _logger;

    public string Name => "websocketdemo";

    public WebSocketHandler(IJsonSerializer json, ILogger logger)
    {
        _json = json;
        _logger = logger;
    }

    public async Task ProcessMessage(WebSocketMessageInfo message)
    {
        _logger.Info("[websocketdemo] Incoming raw: {0}", message.Data);

        JsonMessage msg;
        try
        {
            msg = _json.DeserializeFromString<JsonMessage>(message.Data);
        }
        catch (Exception ex)
        {
            _logger.ErrorException("[websocketdemo] Failed to parse JSON", ex);
            return;
        }

        if (msg?.Type == "ping")
        {
            var response = new JsonMessage
            {
                Type = "pong",
                UserId = msg.UserId,
                Payload = "Server time: " + DateTime.UtcNow.ToString("HH:mm:ss")
            };

            var reply = new WebSocketMessage<string>
            {
                MessageType = Name,
                Data = _json.SerializeToString(response)
            };

            await message.Connection.SendAsync(reply, CancellationToken.None);
            _logger.Info("[websocketdemo] Sent PONG back to client {0}", message.Connection.Id);
        }
    }
}

🛠 Step 3 — `WebSocketTest.html`

Defines a dashboard page with Emby’s data-controller attribute pointing to our JS file.

<div id="WebSocketTestPage"
     data-role="page"
     class="page type-interior pluginConfigurationPage"
     data-controller="__plugin/WebSocketTestjs">

    <div class="content-primary">
        <h1> WebSocket Test</h1>
        <p>This page tests the demo WebSocket channel.</p>

        <button id="btnPing" is="emby-button" class="raised button-submit block">Send Ping</button>
        <textarea id="logBox" style="width:100%;height:200px;"></textarea>
    </div>
</div>

🛠 Step 4 — `WebSocketTest.js`

The correct Emby way is to subscribe to the generic "message" event and filter on MessageType.

define([], function () {
    return function (view) {
        var btn, logBox;

        function log(msg) {
            var ts = new Date().toLocaleTimeString();
            logBox.value += "[" + ts + "] " + msg + "\n";
            logBox.scrollTop = logBox.scrollHeight;
        }

        function onWebSocketMessage(e, msg) {
            if (msg && msg.MessageType === "websocketdemo") {
                try {
                    var data = JSON.parse(msg.Data || "{}");
                    log(" Response: " + JSON.stringify(data));
                } catch (ex) {
                    log(" Raw: " + (msg.Data || ""));
                }
            }
        }

        view.addEventListener("viewshow", function () {
            btn = view.querySelector("#btnPing");
            logBox = view.querySelector("#logBox");

            log("WebSocketTest loaded, ready.");

            Events.on(ApiClient, "message", onWebSocketMessage);

            btn.addEventListener("click", function () {
                log("Sending ping → websocketdemo…");

                var payload = {
                    Type: "ping",
                    UserId: ApiClient.getCurrentUserId() || "",
                    Payload: "Hello from dashboard"
                };

                ApiClient.sendMessage("websocketdemo", JSON.stringify(payload));
            });
        });

        view.addEventListener("viewdestroy", function () {
            Events.off(ApiClient, "message", onWebSocketMessage);
        });
    };
});

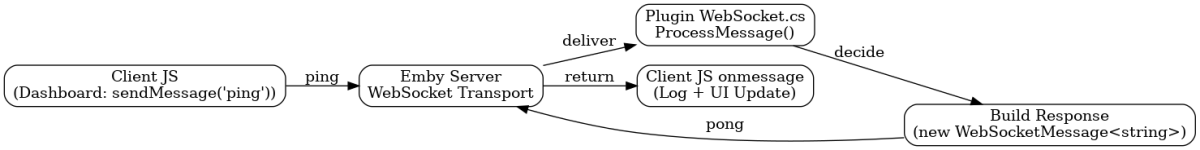

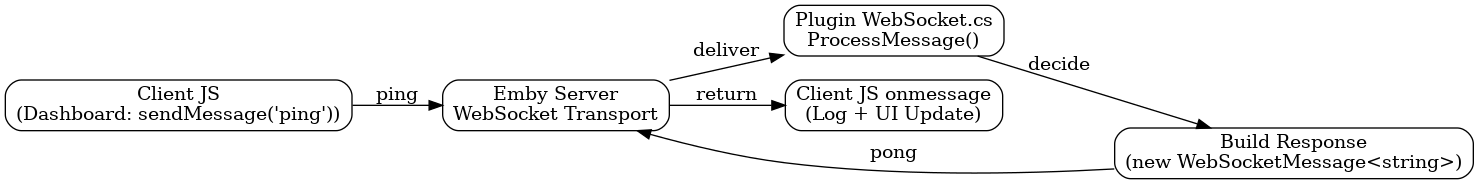

Flowchart — Message Cycle

digraph G {
  rankdir=LR;
  node [shape=box, style=rounded, fillcolor="#E3F2FD", color="#90CAF9", fontcolor="#000000", fontname="Arial", penwidth=1.2];

  ClientJS [label="Dashboard JS\n(ApiClient.sendMessage)"];
  EmbyWS [label="Emby WebSocket\nServer Core"];
  PluginHandler [label="WebSocketHandler\n(ProcessMessage)"];
  Response [label="WebSocketMessage<string>\n(pong JSON)"];
  ClientLog [label="Dashboard Log\n(JSON parsed)"];

  ClientJS -> EmbyWS [label="send {Type:'ping'}"];
  EmbyWS -> PluginHandler [label="dispatch websocketdemo"];
  PluginHandler -> Response [label="serialize pong"];
  Response -> EmbyWS [label="Connection.SendAsync()"];
  EmbyWS -> ClientLog [label="deliver {Type:'pong'}"];
}

Pitfalls & Mistakes to Avoid

Wrong event: ApiClient.on("websocketdemo", …) → not in Emby.
Use Events.on(ApiClient, "message", …) and filter on MessageType.
Wrong server calls: methods like SendMessageToUser appear in online docs but don’t exist in Emby.
Use message.Connection.SendAsync(WebSocketMessage<T>, CancellationToken).
Wrong plugin overrides: Init, GetServices are not valid in Emby 4.8.11 plugins.
JS/HTML mismatch: make sure HTML page data-controller="__plugin/WebSocketTestjs" points to the JS file, not the HTML.
Serialization errors: always send stringified JSON from JS, not raw objects.

Conclusion

This minimal plugin proves:

Emby plugins can register their own WebSocket channels.
You can send arbitrary JSON between dashboard pages and the server.

Edited September 27, 2025 by mickle026

September 27, 2025

Looks interesting! What kind of use case are you thinking for this?

September 27, 2025

The intended purpose was real-time updates of tasks running in some of my plugins, so now I can send any data, you can send images, prebuilt html and insert it into pages, thus providing feature rich dashboard pages, not relying on polling the sever and temperamental timers that have to be stopped and restarted on page navigations, or changed tabs.

I have several other uses in development , where i can receive TV remote or Gamepad controls.

Honestly the possibilities are only limited by your mind, or if Luke shuts this down. Its much easier in Jellyfin though ....

September 28, 2025

Why would we shut this down?

September 28, 2025

1 hour ago, Luke said:

Why would we shut this down?

I hope you don't, but I can see potential for it to be abused and was wondering if that is why its been so hard to get this information.
Its central to my main projects, so I really want it to stay.

September 28, 2025

AutoOrganize has similar sample code where code on the server notifies the client-side javascript:

https://github.com/MediaBrowser/Emby.AutoOrganize

September 29, 2025

New demo up, no endpoints solely sockets

This fully demonstrates , how to get values out of the json reply from the websocket and use them for a html progress bar.

Corrupt Image Repair (Demo Teaching Plugin)

This Emby plugin demonstrates how to perform a non-destructive image corruption scan using WebSockets for real-time progress updates.
It was adapted from the WebSocketDemo scaffold and extended to scan library images (Primary, Backdrop, Logo, Thumb, etc.) without deleting or altering them.

Features

Real-time WebSocket communication (progress + status updates)
Dummy (non-destructive) scan mode – images are checked but never modified
Progress bar + log output UI in Emby Dashboard
Buttons to Ping, Start Scan, and Stop Scan
Teaching scaffold for learning Emby plugin development with WebSockets

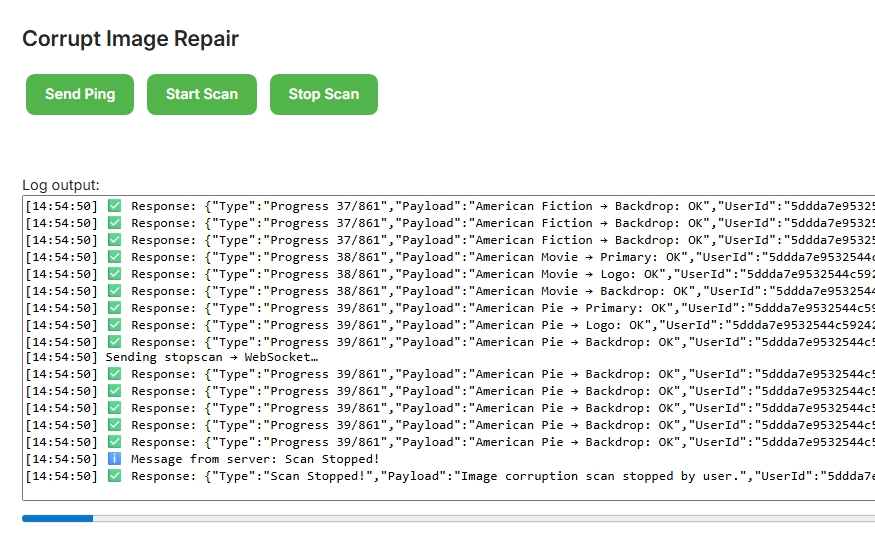

Screenshot

Here’s what the plugin looks like inside the Emby Dashboard:


Project Structure

CorruptImageRepair/
 ├── Controllers/
 │    └── ImageRepairController.cs
 ├── Services/
 │    └── ImageRepairScanService.cs
 ├── Dashboard/
 │    ├── corruptionrepair.html
 │    └── corruptionrepair.js
 ├── ImageFunctions.cs
 ├── WebSocket.cs
 └── Plugin.cs

How to Build

Open solution in Visual Studio 2022 (Emby SDK 4.8.11).
Build the project in Release mode.
Copy the .dll output into your Emby plugins/ directory.
Restart Emby Server.

Usage

Navigate to Dashboard → Plugins → Corrupt Image Repair.
Click Start Scan to run a dummy image validation scan.
Watch the progress bar and live log output update in real time.
Stop anytime with Stop Scan.

🛠 Teaching Notes

Uses Emby’s built-in ISessionManager.SendMessage for WebSocket events.
Demonstrates how to build bi-directional communication between server & client.
Great starting scaffold for plugins that need live feedback.

License

MIT License – free to use, modify, and learn from.

Mickle026/Emby-Demo-CorruptImageRepair: Demo Using Websockets without using Endpoints - Non Destructive

Edited September 29, 2025 by mickle026

September 30, 2025

@mickle026I have the plugin up and running and it works great. You are a really good C# programmer. This plugin is a great teaching tool. However, I do have a few questions that will sharpen my modest programming skills.

1) in myTV when I click on the myTV tuner it gives me the view for the plugins HTML page. In your case when you click on the plugin icon itself you get the plugins HTML page. When I click the icon for myTV I get a message saying that no settings are defined. Is it possible to do both? When someone clicks the myTV icon I would like to explain how to bring up the plugin.

2) you say the plugin "Uses Emby’s built-in ISessionManager.SendMessage for WebSocket events." I don't directly see you using "ISessionManage." Instead, I see you using "Event.on and Event.off" to attach "onWebSocketMessage" to the event. Did I miss Event being defined? This is so exciting for me

I have learned so much from this plugin and in the days to come I will learn more. Thank you for sharing it with me.

Vic

Edited September 30, 2025 by VicMoore

September 30, 2025

1 hour ago, VicMoore said:

@mickle026I have the plugin up and running and it works great. You are a really good C# programmer. This plugin is a great teaching tool. However, I do have a few questions that will sharpen my modest programming skills.

1) in myTV when I click on the myTV tuner it gives me the view for the plugins HTML page. In your case when you click on the plugin icon itself you get the plugins HTML page. When I click the icon for myTV I get a message saying that no settings are defined. Is it possible to do both? When someone clicks the myTV icon I would like to explain how to bring up the plugin.

2) you say the plugin "Uses Emby’s built-in ISessionManager.SendMessage for WebSocket events." I don't directly see you using "ISessionManage." Instead, I see you using "Event.on and Event.off" to attach "onWebSocketMessage" to the event. Did I miss Event being defined? This is so exciting for me

I have learned so much from this plugin and in the days to come I will learn more. Thank you for sharing it with me.

Vic

Using ISessionManager to send back to the user that sent the message

 public class ImageRepairController : IService
 {
     private readonly ISessionManager _sessionManager;

     public ImageRepairController(ISessionManager sessionManager)
     {
         _sessionManager = sessionManager;
     }

     public async Task<object> Post(ImageRepairRequest request)
     {
         if (string.Equals(request.Name, "ping", StringComparison.OrdinalIgnoreCase))
         {
             await _sessionManager.SendMessageToUserDeviceSessions(
                 request.DeviceId,
                 "imagecorruptrepair",
                 "PONG from server",
                 CancellationToken.None
             );
         }
         else if (string.Equals(request.Name, "startscan", StringComparison.OrdinalIgnoreCase))
         {
             await _sessionManager.SendMessageToUserDeviceSessions(
                 request.DeviceId,
                 "imagecorruptrepair",
                 "Scan requested (stub)",
                 CancellationToken.None
             );
         }

         return "ok";
     }
 }

Yes you can add dashboard UI pages

I have uploaded a basic plugin template with dashboard UI page here Mickle026/Emby-Demo-WebUI-BasicPluginStructure: A Plugin Scaffold - Basic Emby Plugin Structure

Study this demo scaffold too , because incorrect linking of the pages and namespaces is by far the biggest headache in plugin development of dashboard ui pages.

Note the html file refers to a js controller page , the div id can be anything but the __plugin/<controller-page-name> must match the names defined in plugin page info in your plugin definition page

// HTML page
// defined in the html !

<div id="corruptionrepairjs"
     data-role="page"
     class="page type-interior pluginConfigurationPage page-windowScroll"
     data-require="emby-button,emby-toggle" <-- thes are also defined in js start deinition, they are the emby styled css components
     data-controller="__plugin/corruptionrepairjs"> // <-- must Match!

note the page is directly in --plugin root!

// plugin.cs

        public PluginPageInfo[] GetPages()
        {
            return new[]
            {
                new PluginPageInfo
                {
                    Name = "corruptionrepair",
                    EmbeddedResourcePath = GetType().Namespace + ".Dashboard.corruptionrepair.html"
                },
                new PluginPageInfo
                {
                    Name = "corruptionrepairjs", // <-------------- MUST MATCH !!!
                    EmbeddedResourcePath = GetType().Namespace + ".Dashboard.corruptionrepair.js"
                }
            };
        }

        IEnumerable<PluginPageInfo> IHasWebPages.GetPages()
        {
            return GetPages();
        }

the url /Dashboard/corrupimagerepair.js is constructed in c# namespace convention with full stops instead of / slashes

Pages must be added as embeded resource !

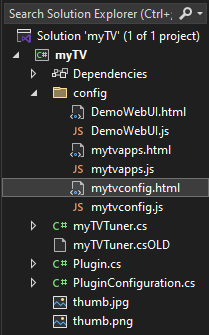

In your MyTV

IsMainConfigPage = true;

Edited September 30, 2025 by mickle026

September 30, 2025

@mickle026Every time I examine your code, I discover how much I have to learn. I appreciate your help.

Vic

September 30, 2025

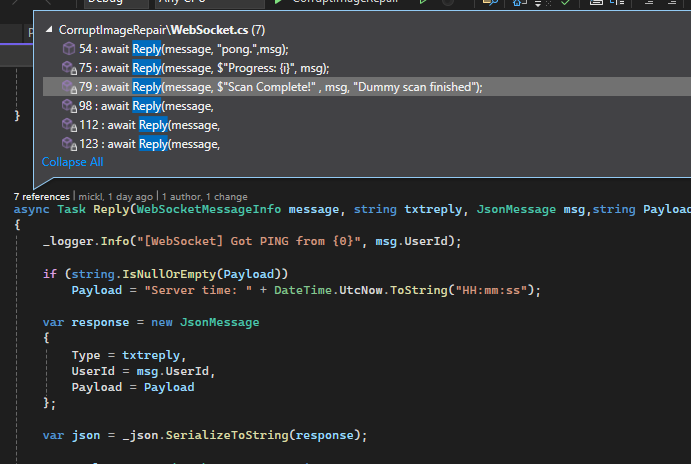

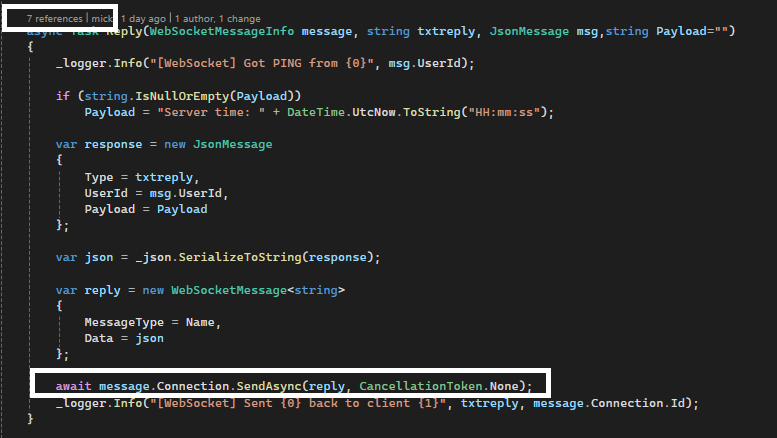

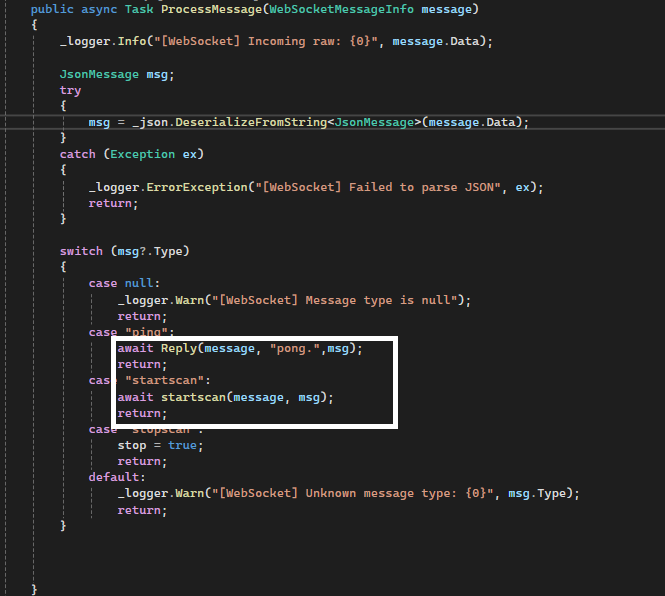

@mickle026in the plugin a reply is sent to the client via the code below. It uses the "SendAsync method in "message.Connection."

async Task Reply(WebSocketMessageInfo message, string txtreply, JsonMessage msg,string Payload="")
{
_logger.Info("[WebSocket] Got PING from {0}", msg.UserId);

if (string.IsNullOrEmpty(Payload))
Payload = "Server time: " + DateTime.UtcNow.ToString("HH:mm:ss");

var response = new JsonMessage
{
Type = txtreply,
UserId = msg.UserId,
Payload = Payload
};

var json = _json.SerializeToString(response);

var reply = new WebSocketMessage<string>
{
MessageType = Name,
Data = json
};

await message.Connection.SendAsync(reply, CancellationToken.None);
_logger.Info("[WebSocket] Sent {0} back to client {1}", txtreply, message.Connection.Id);
}

For the code above, I don't understand how the POST in the code below is being used.

public async Task<object> Post(ImageRepairRequest request)
{
if (string.Equals(request.Name, "ping", StringComparison.OrdinalIgnoreCase))
{
await _sessionManager.SendMessageToUserDeviceSessions(
request.DeviceId,
"imagecorruptrepair",
"PONG from server",
CancellationToken.None
);
}
else if (string.Equals(request.Name, "startscan", StringComparison.OrdinalIgnoreCase))
{
await _sessionManager.SendMessageToUserDeviceSessions(
request.DeviceId,
"imagecorruptrepair",
"Scan requested (stub)",
CancellationToken.None
);
}

return "ok";
}

I see the rout defined, but I am not sure on how it's used. This is of course caused by my lack of understanding about C#. I also don't understand how and where the POST is evoked. I am trying to put together the life cycle of messages flowing between the server and client and back again.

I appreciate you're mentoring. I know I am a difficult student.

Vic

Edited September 30, 2025 by VicMoore

September 30, 2025

Ah yes, that is left there for learning purposes. That POST method is not being used. There are no references (or calls) to it in the code.
When there are calls to it , in visual studio you can click this, see a list of calls, then click the call in the list and it will jump to that code.


I am processing the message server side, choosing how to reply and what to do first.


Then replying directly, this is my reply payload builder ending with the sendAsync build json payload
ping instantly replies with pong.
startscan enters the startscan function passing the message and client id via msg, then calls the reply from within there.


Visual Flow

Client JS → Emby Server WS → Plugin Handler → Build Response → Emby Server WS → Client JS

Webpage→ ProcessReply→ Reply

Send → Decide Action → Build Json Payload and Send


You can of course split it into seperate functions, see the startscan function, just pass in the parameters

await startscan(message, msg);

then recieve them at the function

 async Task startscan(WebSocketMessageInfo message, JsonMessage msg)

variables message and msg are passed into the startscan function

Edited September 30, 2025 by mickle026

September 30, 2025

@mickle026This is a great help. I am studying the code and having a great time doing it. It's great to learn.

Thanks again...

Vic

September 30, 2025

@mickle026I tried to add your code to the myTV code to create an environment where clicking on the myTV plugin icon brings up the DemoWebUI.html and clicking on the myTV Tuner brings up myTV. I get the Emby log error below. I think the problem is trivial but I just don't see it. Don't put a lot of time on this, but if you see the problem let me know.

Vic

Log Error Message

** Error Report ***

Version: 4.8.11.0

Command line: C:\Users\vic\AppData\Roaming\Emby-Server\system\EmbyServer.dll -noautorunwebapp

Operating system: Microsoft Windows 10.0.22621

Framework: .NET 6.0.36

OS/Process: x64/x64

Runtime: C:/Users/vic/AppData/Roaming/Emby-Server/system/System.Private.CoreLib.dll

Processor count: 4

Data path: C:\Users\vic\AppData\Roaming\Emby-Server\programdata

Application path: C:\Users\vic\AppData\Roaming\Emby-Server\system

System.IO.FileNotFoundException: System.IO.FileNotFoundException: File not found: DemoWebUI

File name: 'DemoWebUI'

at Emby.Web.Api.WebAppService.Get(GetDashboardConfigurationPage request)

at Emby.Server.Implementations.Services.ServiceController.Execute(HttpListenerHost appHost, Object requestDto, IRequest req, Type serviceType)

at Emby.Server.Implementations.Services.ServiceHandler.ProcessRequestAsync(HttpListenerHost httpHost, IServerApplicationHost appHost, IRequest httpReq, IResponse httpRes, IStreamHelper streamHelper, RestPath restPath, String responseContentType, CancellationToken cancellationToken)

at Emby.Server.Implementations.HttpServer.HttpListenerHost.RequestHandler(IRequest httpReq, ReadOnlyMemory`1 urlString, ReadOnlyMemory`1 localPath, CancellationToken cancellationToken)

Source: Emby.Web

TargetSite: System.Threading.Tasks.Task`1[System.Object] Get(Emby.Web.Api.GetDashboardConfigurationPage)

myTV.cspro

<PropertyGroup>
       <TargetFramework>netstandard2.0</TargetFramework>
       <Version>1.0.3.503</Version>
       <AssemblyVersion>$(Version)</AssemblyVersion>
       <FileVersion>$(Version)</FileVersion>
</PropertyGroup>

</Project>

Note: in the myTV.cspro code I tried putting "config\" before the DemoWebUI.html and the DemoWebUI.js entries above. This did not resolve the problem

myTV Files


JS code DemoWebUI.js

define(["emby-button","emby-toggle"],
function () {
return function (page, params) {
page.addEventListener('viewshow', () => {

});
}
}
);

HTML code DemoWebUI.html

</div>
</div>

Edited September 30, 2025 by VicMoore

September 30, 2025

I got it fixed myself--- YEA!!!!

Vic

September 30, 2025

Always namespace error's, usually plugin info

.Dashboard.

To

.config. ?

September 30, 2025

@mickle026 I put your files back in the WebUI folder and everything worked fine. This is a great feature because new users always try to bring myTV up by clicking the plugin icon. Now I can explain to them what they need to do. I never knew how to do this until you showed me how to do it with your demo.

Vic

Demo Web Socket in Action via plugin

Recommended Posts

mickle026 650

Emby WebSocket Demo Plugin (4.8.11)

What It Does

Plugin File Structure

🛠 Step 1 — Plugin.cs

🛠 Step 2 — WebSocketHandler.cs

🛠 Step 3 — WebSocketTest.html

🛠 Step 4 — WebSocketTest.js

Flowchart — Message Cycle

Pitfalls & Mistakes to Avoid

Conclusion

Amything 122

mickle026 650

Luke 42077

mickle026 650

Luke 42077

mickle026 650

Corrupt Image Repair (Demo Teaching Plugin)

Features

Screenshot

Project Structure

How to Build

Usage

🛠 Teaching Notes

License

VicMoore 754

mickle026 650

VicMoore 754

VicMoore 754

mickle026 650

Visual Flow

VicMoore 754

VicMoore 754

VicMoore 754

mickle026 650

VicMoore 754

Create an account or sign in to comment

Create an account

Sign in

Activity

🛠 Step 1 — `Plugin.cs`

🛠 Step 2 — `WebSocketHandler.cs`

🛠 Step 3 — `WebSocketTest.html`

🛠 Step 4 — `WebSocketTest.js`
