External Network Access Suddenly Doesn't Work

[hemsimmons 0]

Several days ago, evidently, my family lost access to my server using the external access.  I have checked absolute everything I know to check and it all seems (still) setup correction.

Allow remote access is still checked on the server and for the users
My router still has pass-through enabled for the IP address & port shown in the server settings.
What else is there to check?  I've tested it myself from my phone and Emby Connect and neither will work.  I can only get to the server on my internal network.

I am clueless where to go from here --- if it doesn't work according to the standard instructions -- or just all of a sudden quits --- I have no idea what to do.  My family will be devastated if I can't get this resolved

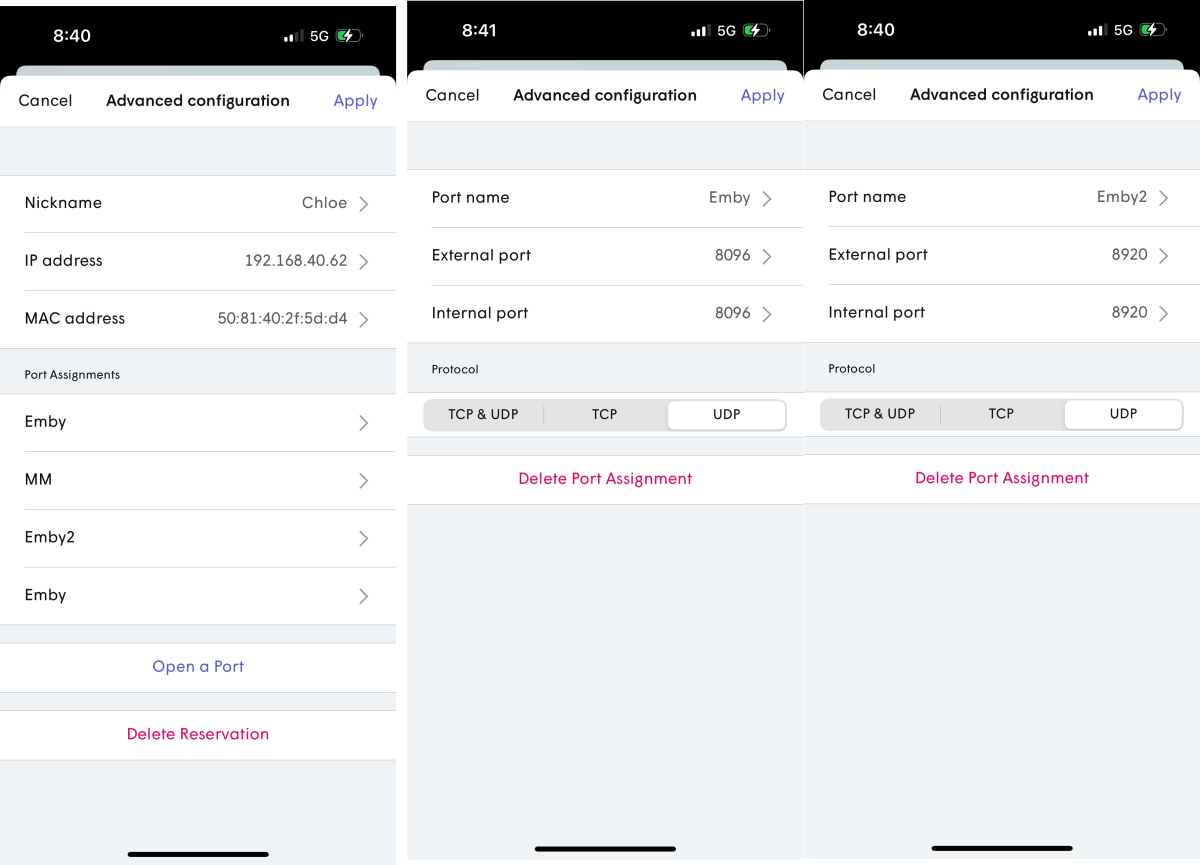

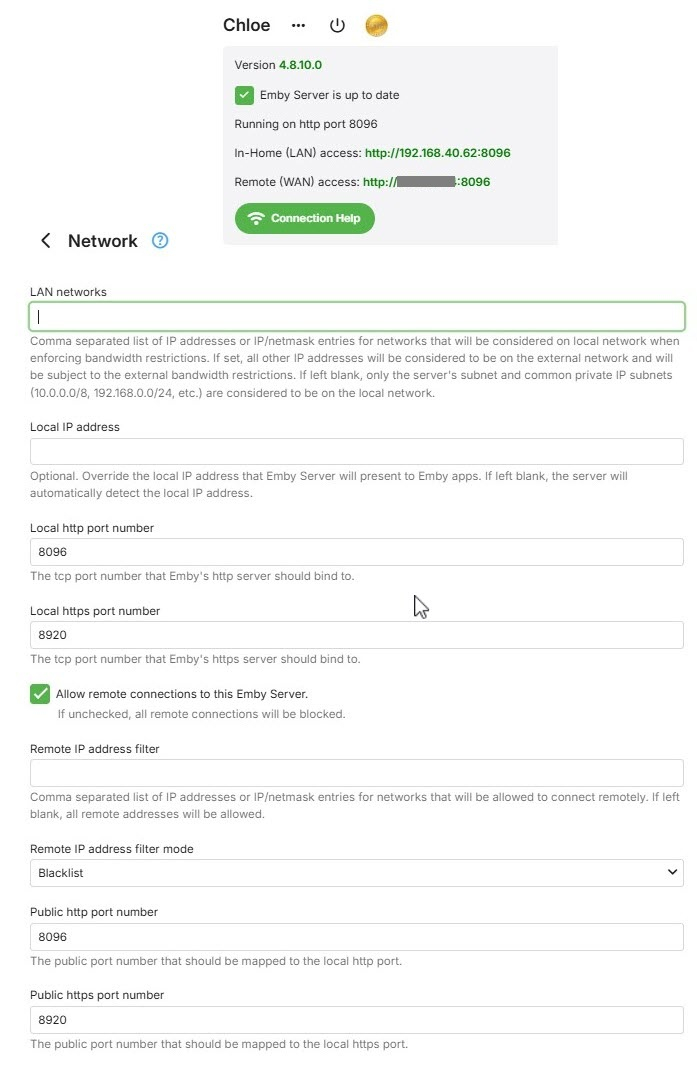

Attached are print screens of the server setup and the router settings.

Thank you for any help.



Edited February 3, 2025 by GrimReaper
WAN IP masked

[Luke 42078]

Hi there, what exactly happens when you try to connect?

[Neminem 1519]

From you router screenshots it looks like port are set to UDP.

I think is must be TCP.

[hemsimmons 0]

It times out and states that "we're unable to connect to the selected server right now"...   It was originally TCP.  I was trying everything to get it to work.  It won't connect whether it's TCP, UDP, or TCP & UDP.

[Happy2Play 9780]

I guess the question becomes did you ISP (C Spire Fiber) change something?

Can you do the tracert test.

Verify Public IP and Port

[hemsimmons 0]

So the IP at canyousee me is different than what is shown in Emby as the external IP address.   I thought Emby kept that up to date automatically.  I will try to reset it.



Edited February 3, 2025 by hemsimmons

[Happy2Play 9780]

13 minutes ago, hemsimmons said:

So the IP at canyousee me is different than what is shown in Emby as the external IP address.   I thought Emby kept that up to date automatically.  I will try to reset it.



Normally it does, are you using a VPN?

[hemsimmons 0]

No VPN.  The IP address does actually match Emby -- it didn't match what I had saved in my reference file which I evidently didn't update.   The port is not accessible however.

[Happy2Play 9780]

2 minutes ago, hemsimmons said:

No VPN.  The IP address does actually match Emby -- it didn't match what I had saved in my reference file which I evidently didn't update.   The port is not accessible however.

And have you done the tracetr?  As your ISP may have changed something.

[hemsimmons 0]

yes -- and, at first, I didn't see any CGNAT ranges but now that I look at it again  (I got interrupted by work...at work...go figure! ) The second one on the list is a 100.71 number.  Which, if I am reading correctly, means I have to contact them for a static address now?

[Happy2Play 9780]

Just now, hemsimmons said:

yes -- and, at first, I didn't see any CGNAT ranges but now that I look at it again  (I got interrupted by work...at work...go figure! ) The second one on the list is a 100.71 number.  Which, if I am reading correctly, means I have to contact them for a static address now?

Yes it sounds like your ISP may now be CGNAT.

[hemsimmons 0]

Well, that's just RUDE! LOL  They just want more money from me.  Fingers crossed that is all it will take.  Thanks for all of the quick responses/assistance.  My brother appreciates it most of all!!

[Luke 42078]

Tailscale or a vpn can help you get around that.
