ak2k5 0 Posted November 13, 2024 Posted November 13, 2024 (edited) My IPTV service provides M3U8 channel list in such a form: #EXTM3U generation-date="2024.11.12" #EXTINF:0 tvg-name="Name1" tvg-logo="http://logo.tv/1.png" timeshift="6", Name1 #EXTGRP:1. Federal http://service.tv:12345/ch001/mono.m3u8?token=aabbcc #EXTINF:0 tvg-name="Name2" tvg-logo="http://logo.tv/2.png" timeshift="2", Name2 #EXTGRP:10. Educational http://service.tv:12345/ch002/mono.m3u8?token=xxyyzz It seems that emby ignores #EXTGRP group tag and shows all 1000+ channels in one plain list. How to "teach" emby (or me) recognize this tag correctly? PS: Sorry, wrong issue placement. Issue with Live TV in general, not MediaPortal. Edited November 13, 2024 by ak2k5 Wrong issue placement
Carlo 4560 Posted November 14, 2024 Posted November 14, 2024 Have you explored the m3u tuner setup dialog? There is a field you can use to setup a list of groups to import, discarding other channels. I know Emby will read the group using the traditional method like: #EXTINF:-1 tvg-id="AAAA" tvg-name="AAAA HD tvg-logo="http://BLABLABLAUR.cx/logo/AAAA.png" group-title="Group A",AAAA HD http://BLABLABLAURL:8090/s/5e3e3bd7/channel-A-hd.m3u8 I've not seen/tested this using the extended M3U format as it seems almost universally IPTV providers are using the conventional group=title parameter. #EXTINF:0 group-title="Group1" tvg-id="Channel-A-hd" tvg-logo="http://BLABLABLAUR.app/streams/Channel-A-HD.png" tvg-rec="7",Channel A HD #EXTGRP:GroupA http://BLABLABLAURL:8090/s/5e3e3bd7/channel-A-hd.m3u8

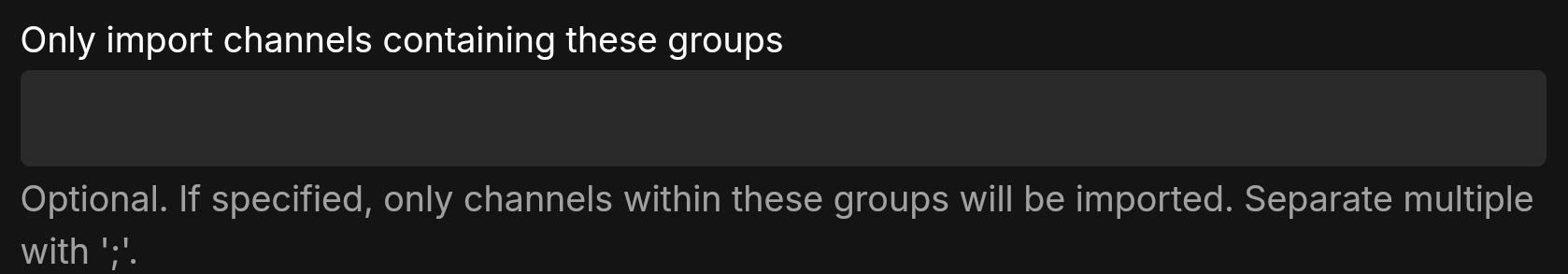

ak2k5 0 Posted November 14, 2024 Author Posted November 14, 2024 12 minutes ago, Carlo said: Have you explored the m3u tuner setup dialog? There is a field you can use to setup a list of groups to import, discarding other channels. You mean this field? The field looks like group filter to let emby import channels from choosen groups only. The problem is emby could not get (and didn't display of process) any group information from the source.
Carlo 4560 Posted November 14, 2024 Posted November 14, 2024 @LukeWe read group-title fine from m3u/m3u8 files, but it appears we aren't reading the group information if using #EXTGRP We should be reading the group(s) using either method, can you check on this
Luke 42077 Posted November 17, 2024 Posted November 17, 2024 Never heard of ExtGrp. Anyway here's a build of the m3u plugin with some support added for it that you can test out. If it works out well enough then we can publish this. Thanks. Emby.M3UTuner.zip 1
Carlo 4560 Posted November 18, 2024 Posted November 18, 2024 10 hours ago, Luke said: Never heard of ExtGrp. Anyway here's a build of the m3u plugin with some support added for it that you can test out. If it works out well enough then we can publish this. Thanks. #EXTGRP: https://en.wikipedia.org/wiki/M3U https://en.f-player.ru/extm3u-iptv-format TVG-GROUP https://github.com/HamzaBhf00/m3u-tags-iptv bottom section

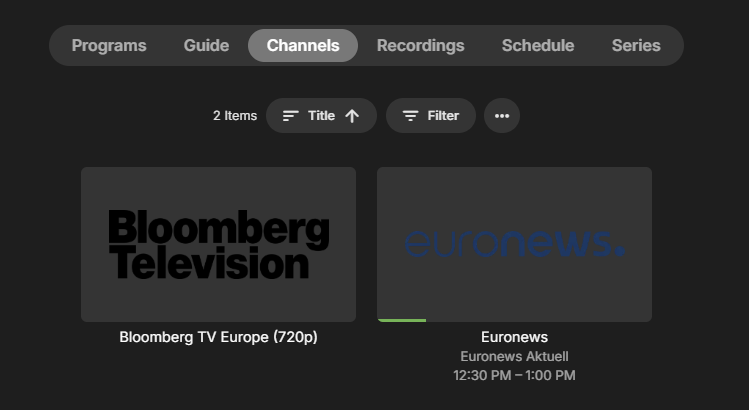

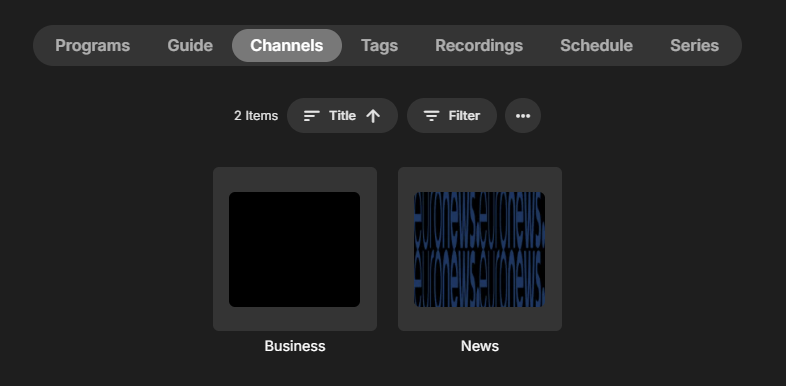

ak2k5 0 Posted November 18, 2024 Author Posted November 18, 2024 12 hours ago, Luke said: Never heard of ExtGrp. Anyway here's a build of the m3u plugin with some support added for it that you can test out. If it works out well enough then we can publish this. Thanks. It seems new plugin lost group support completely. Attached two m3u8 sample files. Original plugin with group-title: New plugin with group-title/#EXTGRP: digest.extgrp.m3u8 digest.group-title.m3u8
Luke 42077 Posted November 21, 2024 Posted November 21, 2024 What do you mean by lost group support completely? What was lost?
Carlo 4560 Posted November 21, 2024 Posted November 21, 2024 His issue is the Emby Server isn't loading the groups from the m3u files. The M3U file uses #EXTGRP for grouping.
ak2k5 0 Posted November 21, 2024 Author Posted November 21, 2024 (edited) 2 hours ago, Luke said: What do you mean by lost group support completely? What was lost? I mean that original M3U plugin process correctly m3u8 playlists with "group-title" option and fails with #EXTGRP tag. Plugin I've downloaded from this thread fails with both. Maybe I missed something. My order of operations: remove m3u8 playlist from LiveTV section stop EMBY server replace plugin DLL start EMBY server add m3u8 playlist and wait till it parsed check the result Edited November 21, 2024 by ak2k5
Carlo 4560 Posted November 21, 2024 Posted November 21, 2024 That is a correct way to update the plugin. At present Emby supports group-title but not #EXTGRP which is something we can look at adding support for.
Luke 42077 Posted November 21, 2024 Posted November 21, 2024 It should add support for extgrp. Can you try it again? 1

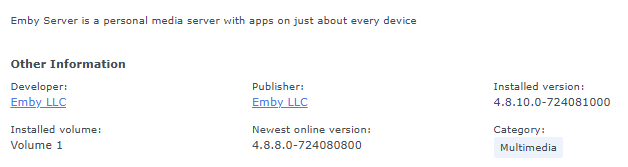

ak2k5 0 Posted November 23, 2024 Author Posted November 23, 2024 On 11/21/2024 at 11:20 PM, Luke said: It should add support for extgrp. Can you try it again? New version tuner throws an exception on reading any playlist. Information I forgot to add: EMBY server works on Synology. embyserver.txt
ak2k5 0 Posted November 23, 2024 Author Posted November 23, 2024 Just installed and tested the same playlists on Windows EMBY server. No exceptions but still no groups (tags) with new lib. What additional testing or logging may I provide?
sa2000 673 Posted November 25, 2024 Posted November 25, 2024 (edited) @Luke I have reproduced the error with your updated version of Emby.M3UTuner.dll that you provided here The error gets logged after reading the m3u file System.ArgumentNullException: System.ArgumentNullException: Value cannot be null. (Parameter 'first') You can use the attached 1 channel test m3u file to reproduce. There was no error when adding this test m3u file with the released version of the plugin my-test-m3u.txt The file just has 1 dummy channel #EXTM3U #EXTINF:-1 tvg-id="BBC1.uk" tvg-name="UK| BBC 1 HD" tvg-logo="http://xxx.xxx.xxx.xxx/xxxx/logos/UK/BBC-1.png" group-title="UK| GENERAL",UK| BBC 1 HD http://xxxxx-xxx.xxx-xxx.xxx:80/xxxxxxxx/xxxxxxxx/xxxx This shows the error just after Emby Server read the file Emby Server Log 2024-11-25 11:18:45.562 Info Server: http/1.1 POST http://localhost:8096/emby/LiveTv/TunerHosts?X-Emby-Client=Emby Web&X-Emby-Device-Name=Microsoft Edge Windows&X-Emby-Device-Id=5032d689-fc85-4247-8c35-3ea085ebb3eb&X-Emby-Client-Version=4.9.0.32&X-Emby-Token=xxxxxxxxxxxxxxxxx&X-Emby-Language=en-gb&reqformat=json. Source Ip: ::1, UserAgent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/131.0.0.0 Safari/537.36 Edg/131.0.0.0 2024-11-25 11:18:45.579 Info TaskManager: Queueing task RefreshChannelsScheduledTask 2024-11-25 11:18:45.579 Info TaskManager: Executing Refresh Guide 2024-11-25 11:18:45.579 Info Server: http/1.1 Response 200 to ::1. Time: 17ms. POST http://localhost:8096/emby/LiveTv/TunerHosts?X-Emby-Client=Emby Web&X-Emby-Device-Name=Microsoft Edge Windows&X-Emby-Device-Id=5032d689-fc85-4247-8c35-3ea085ebb3eb&X-Emby-Client-Version=4.9.0.32&X-Emby-Token=xxxxxxxxxxxxxxxxxxx&X-Emby-Language=en-gb&reqformat=json m3u file read (captured with procmon) 11:18:49.2923669 EmbyServer.exe 16908 ReadFile <path to my-test-m3u.txt> SUCCESS Offset: 0, Length: 211 11:18:49.2944639 EmbyServer.exe 16908 ReadFile <path to my-test-m3u.txt> END OF FILE Offset: 211, Length: 4,096 11:18:49.2974464 EmbyServer.exe 16908 CloseFile <path to my-test-m3u.txt> SUCCESS Emby Server Log 2024-11-25 11:18:49.300 Error LiveTvManager: Error getting channels *** Error Report *** Version: 4.9.0.32 Command line: C:\Users\SA\AppData\Roaming\Emby-Server\system\EmbyServer.dll Operating system: Microsoft Windows 10.0.26100 OS/Process: x64/x64 Framework: .NET 8.0.11 Runtime: C:/Users/SA/AppData/Roaming/Emby-Server/system/System.Private.CoreLib.dll Processor count: 22 Data path: C:\Users\SA\AppData\Roaming\Emby-Server\programdata Application path: C:\Users\SA\AppData\Roaming\Emby-Server\system System.ArgumentNullException: System.ArgumentNullException: Value cannot be null. (Parameter 'first') at System.Linq.ThrowHelper.ThrowArgumentNullException(ExceptionArgument argument) at System.Linq.Enumerable.Concat[TSource](IEnumerable`1 first, IEnumerable`1 second) at Emby.M3UTuner.M3uParser.GetChannelInfo(TunerHostInfo tuner, M3uProviderOptions providerOptions, M3UInfo info, String extInf, String tunerHostId, String mediaUrl) at Emby.M3UTuner.M3uParser.GetM3UInfo(TunerHostInfo tuner, M3uProviderOptions providerOptions, TextReader reader, String playlistUrl, String channelIdPrefix, String tunerHostId) at Emby.M3UTuner.M3uParser.Parse(TunerHostInfo tuner, String playlistUrl, String userAgent, String channelIdPrefix, String tunerHostId, M3uProviderOptions providerOptions, CancellationToken cancellationToken) at Emby.M3UTuner.M3UTunerHost.GetChannelsInternal(TunerHostInfo tuner, CancellationToken cancellationToken) at MediaBrowser.Controller.LiveTv.BaseTunerHost.RefreshChannels(TunerHostInfo host, CancellationToken cancellationToken) at Emby.LiveTV.LiveTvManager.RefreshEmbyChannelsInternal(IProgress`1 progress, CancellationToken cancellationToken) Source: System.Linq TargetSite: Void ThrowArgumentNullException(System.Linq.ExceptionArgument) Edited November 25, 2024 by sa2000 1
Luke 42077 Posted November 27, 2024 Posted November 27, 2024 On 11/25/2024 at 6:42 AM, sa2000 said: @Luke I have reproduced the error with your updated version of Emby.M3UTuner.dll that you provided here The error gets logged after reading the m3u file System.ArgumentNullException: System.ArgumentNullException: Value cannot be null. (Parameter 'first') You can use the attached 1 channel test m3u file to reproduce. There was no error when adding this test m3u file with the released version of the plugin my-test-m3u.txt 211 B · 0 downloads The file just has 1 dummy channel #EXTM3U #EXTINF:-1 tvg-id="BBC1.uk" tvg-name="UK| BBC 1 HD" tvg-logo="http://xxx.xxx.xxx.xxx/xxxx/logos/UK/BBC-1.png" group-title="UK| GENERAL",UK| BBC 1 HD http://xxxxx-xxx.xxx-xxx.xxx:80/xxxxxxxx/xxxxxxxx/xxxx This shows the error just after Emby Server read the file Emby Server Log 2024-11-25 11:18:45.562 Info Server: http/1.1 POST http://localhost:8096/emby/LiveTv/TunerHosts?X-Emby-Client=Emby Web&X-Emby-Device-Name=Microsoft Edge Windows&X-Emby-Device-Id=5032d689-fc85-4247-8c35-3ea085ebb3eb&X-Emby-Client-Version=4.9.0.32&X-Emby-Token=xxxxxxxxxxxxxxxxx&X-Emby-Language=en-gb&reqformat=json. Source Ip: ::1, UserAgent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/131.0.0.0 Safari/537.36 Edg/131.0.0.0 2024-11-25 11:18:45.579 Info TaskManager: Queueing task RefreshChannelsScheduledTask 2024-11-25 11:18:45.579 Info TaskManager: Executing Refresh Guide 2024-11-25 11:18:45.579 Info Server: http/1.1 Response 200 to ::1. Time: 17ms. POST http://localhost:8096/emby/LiveTv/TunerHosts?X-Emby-Client=Emby Web&X-Emby-Device-Name=Microsoft Edge Windows&X-Emby-Device-Id=5032d689-fc85-4247-8c35-3ea085ebb3eb&X-Emby-Client-Version=4.9.0.32&X-Emby-Token=xxxxxxxxxxxxxxxxxxx&X-Emby-Language=en-gb&reqformat=json m3u file read (captured with procmon) 11:18:49.2923669 EmbyServer.exe 16908 ReadFile <path to my-test-m3u.txt> SUCCESS Offset: 0, Length: 211 11:18:49.2944639 EmbyServer.exe 16908 ReadFile <path to my-test-m3u.txt> END OF FILE Offset: 211, Length: 4,096 11:18:49.2974464 EmbyServer.exe 16908 CloseFile <path to my-test-m3u.txt> SUCCESS Emby Server Log 2024-11-25 11:18:49.300 Error LiveTvManager: Error getting channels *** Error Report *** Version: 4.9.0.32 Command line: C:\Users\SA\AppData\Roaming\Emby-Server\system\EmbyServer.dll Operating system: Microsoft Windows 10.0.26100 OS/Process: x64/x64 Framework: .NET 8.0.11 Runtime: C:/Users/SA/AppData/Roaming/Emby-Server/system/System.Private.CoreLib.dll Processor count: 22 Data path: C:\Users\SA\AppData\Roaming\Emby-Server\programdata Application path: C:\Users\SA\AppData\Roaming\Emby-Server\system System.ArgumentNullException: System.ArgumentNullException: Value cannot be null. (Parameter 'first') at System.Linq.ThrowHelper.ThrowArgumentNullException(ExceptionArgument argument) at System.Linq.Enumerable.Concat[TSource](IEnumerable`1 first, IEnumerable`1 second) at Emby.M3UTuner.M3uParser.GetChannelInfo(TunerHostInfo tuner, M3uProviderOptions providerOptions, M3UInfo info, String extInf, String tunerHostId, String mediaUrl) at Emby.M3UTuner.M3uParser.GetM3UInfo(TunerHostInfo tuner, M3uProviderOptions providerOptions, TextReader reader, String playlistUrl, String channelIdPrefix, String tunerHostId) at Emby.M3UTuner.M3uParser.Parse(TunerHostInfo tuner, String playlistUrl, String userAgent, String channelIdPrefix, String tunerHostId, M3uProviderOptions providerOptions, CancellationToken cancellationToken) at Emby.M3UTuner.M3UTunerHost.GetChannelsInternal(TunerHostInfo tuner, CancellationToken cancellationToken) at MediaBrowser.Controller.LiveTv.BaseTunerHost.RefreshChannels(TunerHostInfo host, CancellationToken cancellationToken) at Emby.LiveTV.LiveTvManager.RefreshEmbyChannelsInternal(IProgress`1 progress, CancellationToken cancellationToken) Source: System.Linq TargetSite: Void ThrowArgumentNullException(System.Linq.ExceptionArgument) Tested, no problem found. Can you try it again? here, for good measure: Emby.M3UTuner.zip
sa2000 673 Posted November 27, 2024 Posted November 27, 2024 2 hours ago, Luke said: Tested, no problem found. Can you try it again? here, for good measure: Thanks - worked ok with my 1 one channel test and I mapped the channel to a guide channel and all good. Thanks On 23/11/2024 at 15:56, ak2k5 said: New version tuner throws an exception on reading any playlist Hi Can you please try the updated Emby.M3UTuner dll above to check the fix for your group names 1
Carlo 4560 Posted November 27, 2024 Posted November 27, 2024 3 hours ago, Luke said: Tested, no problem found. Can you try it again? here, for good measure: Emby.M3UTuner.zip 46.05 kB · 0 downloads This worked for me as well loading the #EXTGRP 1 1
