LiveTv and m3u8 : what am I missing ?

[chrishinji 0]

Hello everyone,

I am wondering if I am missing something when it comes to use m3u8 playlist file with IPTV.

So I have one M3U file which contains :



Quote

#EXTM3U

#EXTINF:10.000000,TVG-ID="TF1" tvg-name="TF1" tvg-logo="http://example.com/channel1.png" group-title="Generaliste",TF1

https://raw.githubusercontent.com/Paradise-91/ParaTV/main/streams/tf1plus/tf1.m3u8

#EXTINF:10.000000,TVG-ID="France2" tvg-name="France2" tvg-logo="http://example.com/channel1.png" group-title="Generaliste",France2
https://raw.githubusercontent.com/Paradise-91/ParaTV/main/streams/francetv/france2.m3u8



Which does not work with emby but works perfectly fine with VLC. However, if I attached the data from those m3u8 files within the m3u to have something like (I removed the URL to make it easier to read, you can see the code from the github link) :

#EXTM3U
#EXT-X-VERSION:6
#EXT-X-INDEPENDENT-SEGMENTS
#EXTINF:10.000000,TVG-ID="TF1" tvg-name="TF1" tvg-logo="http://example.com/channel1.png" group-title="Generaliste",TF1
#EXT-X-STREAM-INF:BANDWIDTH=3193080,AVERAGE-BANDWIDTH=2891350,RESOLUTION=1280x720,FRAME-RATE=25.000,CODECS="avc1.4D401F,mp4a.40.2",SUBTITLES="subtitles",AUDIO="audio_0"
https://***/index_1.m3u8
#EXT-X-STREAM-INF:BANDWIDTH=2207480,AVERAGE-BANDWIDTH=2011350,RESOLUTION=1024x576,FRAME-RATE=25.000,CODECS="avc1.4D401F,mp4a.40.2",SUBTITLES="subtitles",AUDIO="audio_0"
https://***/index_2.m3u8
#EXT-X-STREAM-INF:BANDWIDTH=1591506,AVERAGE-BANDWIDTH=1461385,RESOLUTION=1024x576,FRAME-RATE=25.000,CODECS="avc1.4D401F,mp4a.40.2",SUBTITLES="subtitles",AUDIO="audio_0"
https://***/index_3.m3u8
#EXT-X-STREAM-INF:BANDWIDTH=1098706,AVERAGE-BANDWIDTH=1021385,RESOLUTION=640x360,FRAME-RATE=25.000,CODECS="avc1.42C01E,mp4a.40.2",SUBTITLES="subtitles",AUDIO="audio_0"
https://***/index_4.m3u8
#EXT-X-STREAM-INF:BANDWIDTH=605906,AVERAGE-BANDWIDTH=581385,RESOLUTION=416x234,FRAME-RATE=25.000,CODECS="avc1.42C00D,mp4a.40.2",SUBTITLES="subtitles",AUDIO="audio_0"
https://***/index_5.m3u8
#EXT-X-MEDIA:TYPE=AUDIO,GROUP-ID="audio_0",CHANNELS="2",NAME="fra",LANGUAGE="fra",DEFAULT=YES,AUTOSELECT=YES,URI="https://***/index_12_0.m3u8"
#EXT-X-MEDIA:TYPE=AUDIO,GROUP-ID="audio_0",CHANNELS="2",NAME="mul",LANGUAGE="mul",DEFAULT=NO,AUTOSELECT=NO,URI="https://***/index_13_0.m3u8"
#EXT-X-MEDIA:TYPE=AUDIO,GROUP-ID="audio_0",CHANNELS="2",NAME="sme",LANGUAGE="sme",DEFAULT=NO,AUTOSELECT=NO,URI="https://***/index_14_0.m3u8"
#EXT-X-MEDIA:TYPE=SUBTITLES,GROUP-ID="subtitles",NAME="no subtitles",DEFAULT=YES,AUTOSELECT=YES,FORCED=NO,LANGUAGE="mul",URI="https://***/index_9_0.m3u8"
#EXT-X-MEDIA:TYPE=SUBTITLES,GROUP-ID="subtitles",NAME="Sourds et malentendant",DEFAULT=NO,AUTOSELECT=NO,FORCED=NO,LANGUAGE="sme",URI="https://***/index_10_0.m3u8"
#EXT-X-MEDIA:TYPE=SUBTITLES,GROUP-ID="subtitles",NAME="français",DEFAULT=NO,AUTOSELECT=NO,FORCED=NO,LANGUAGE="fra",URI="https://***/index_11_0.m3u8"

Then it works partially : I receive the video data but not the audio. Even after cleaning the input to have something like this (again working for VLC) :


#EXTINF:0 tvg-country="FR" tvg-logo="https://w7.pngwing.com/pngs/652/689/png-transparent-france-tf1-group-logo-television-france-purple-television-angle.png" group-title="Généraliste",TF1_Test
#EXT-X-STREAM-INF:BANDWIDTH=3193080,AVERAGE-BANDWIDTH=2891350,RESOLUTION=1280x720,FRAME-RATE=25.000,CODECS="avc1.4D401F,mp4a.40.2",AUDIO="audio_0"
https://***/index_1.m3u8
#EXT-X-MEDIA:TYPE=AUDIO,GROUP-ID="audio_0",CHANNELS="2",NAME="fra",LANGUAGE="fra",DEFAULT=YES,AUTOSELECT=YES,URI="https://***/index_12_0.m3u8"

I am still having the same issue.

Am I missing something ? Or Emby does not support multiple stream ?



[Luke 42077]



Hi there, let's look at an example. Please attach the information requested in how to report a media playback issue. Thanks!



[chrishinji 0]

You are absolutely right, I forgot to bring the logs with me. So :

The logs with this m3u :

#EXTM3U
#EXTINF:10.000000,TVG-ID="TF1" tvg-name="TF1" tvg-logo="http://example.com/channel1.png" group-title="Generaliste",TF1
https://raw.githubusercontent.com/Paradise-91/ParaTV/main/streams/tf1plus/tf1.m3u8

are the on in ffmpeg-transcode-b0a3f68a-d38b-4bc9-9ef7-8e352cd44772_1.txt



and the one with this m3u :


#EXTINF:0 tvg-country="FR" tvg-logo="https://w7.pngwing.com/pngs/652/689/png-transparent-france-tf1-group-logo-television-france-purple-television-angle.png" group-title="Généraliste",TF1_Test
#EXT-X-STREAM-INF:BANDWIDTH=3193080,AVERAGE-BANDWIDTH=2891350,RESOLUTION=1280x720,FRAME-RATE=25.000,CODECS="avc1.4D401F,mp4a.40.2",AUDIO="audio_0"
https://***/index_1.m3u8
#EXT-X-MEDIA:TYPE=AUDIO,GROUP-ID="audio_0",CHANNELS="2",NAME="fra",LANGUAGE="fra",DEFAULT=YES,AUTOSELECT=YES,URI="https://***/index_12_0.m3u8"

are in ffmpeg-transcode-ce535e44-dff4-4bf2-9826-76b58c7c0a58_1.txt.

With the first file I have a black screen (no error messages) while with the second one I have the video flux but no audio.

I hope it those logs are ok

ffmpeg-transcode-b0a3f68a-d38b-4bc9-9ef7-8e352cd44772_1.txt ffmpeg-transcode-ce535e44-dff4-4bf2-9826-76b58c7c0a58_1.txt ffmpeg-remux-f3a0c126-b094-48f3-ad3a-8682dffa5ca2_1.txt

[chrishinji 0]

Sorry to bump on this topic but is something very obvious that I am missing ?

[Luke 42077]

Hi, have you updated to Emby Server 4.8.10? Has that helped?

[chrishinji 0]

Hello Luke,

Thank you for the answer Yes, I switch to 4.8.10 recently and I still experience the same issue. But I think actually I can simplify my question : can I use m3u8 files for Iptv ?

I will give a real example :

If I take a look at this github page
    https://github.c*m/iptv-org/iptv/blob/master/streams/fr.m3u
I can see this line :


#EXTINF:-1 tvg-id="TF1.fr",TF1 (720p) [Geo-blocked]
https://raw.githubusercontent.c*m/Paradise-91/ParaTV/main/streams/tf1plus/tf1.m3u8

I added this entry as is to m3u file but when I click on the channel, I have a black screen and after a while I got the following error message :

"Playback Error

No compatible streams are currently available. Please try again later or contact your system administrator for details.

"

(Logs in first_case.zip )

However, if I edit the same tf1.m3u8 and copy data from it to  paste it to my m3u file like this :

#EXTINF:0 tvg-country="FR" tvg-logo="" group-title="Généraliste",TF1_test2
https://live-tf1-hls.cdn-0.diff.tf1.f*/eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJjaXAiOiI4Mi42NC4yMTAuNjQiLCJjbWNkIjoiIiwiZXhwIjoxNzI4NjE2NzkxLCJnaWQiOiIwNDZiOTUyMy03MDdkLTQ3NjMtODFjNi1lNDM1NTQxMjE3ZDUiLCJpYXQiOjE3Mjg2MDIzOTEsImlzcyI6ImRlbGl2ZXJ5IiwibWF4YiI6MCwic3RlbSI6Ii9vdXQvdjEvNzgwNTQyZjUxNmYxNDNmYzhhZDliZjE0NjIyMzE2ZTcvdGYxLWNtYWYiLCJzdWIiOiIwNDZiOTUyMy03MDdkLTQ3NjMtODFjNi1lNDM1NTQxMjE3ZDUifQ.-Im0wpeCjuMbQ9IQfX66aBm8oYbBeWqcg-vDFxNVr3c/out/v1/780542f516f143fc8ad9bf14622316e7/tf1-cmaf/index_1.m3u8

I can see the video stream ( the url is the first  #EXT-X-STREAM-INF:BANDWIDTH instance of tf1.m3u8 ).

And if I use this line :

#EXTINF:0 tvg-country="FR" tvg-logo="" group-title="Généraliste",TF1_test2
https://live-tf1-hls.cdn-0.diff.tf1.f*/eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJjaXAiOiI4Mi42NC4yMTAuNjQiLCJjbWNkIjoiIiwiZXhwIjoxNzI4NjE2NzkxLCJnaWQiOiIwNDZiOTUyMy03MDdkLTQ3NjMtODFjNi1lNDM1NTQxMjE3ZDUiLCJpYXQiOjE3Mjg2MDIzOTEsImlzcyI6ImRlbGl2ZXJ5IiwibWF4YiI6MCwic3RlbSI6Ii9vdXQvdjEvNzgwNTQyZjUxNmYxNDNmYzhhZDliZjE0NjIyMzE2ZTcvdGYxLWNtYWYiLCJzdWIiOiIwNDZiOTUyMy03MDdkLTQ3NjMtODFjNi1lNDM1NTQxMjE3ZDUifQ.-Im0wpeCjuMbQ9IQfX66aBm8oYbBeWqcg-vDFxNVr3c/out/v1/780542f516f143fc8ad9bf14622316e7/tf1-cmaf/index_14_0.m3u8

I get the audio stream of the channel  ( the url used is the first #EXT-X-MEDIA:TYPE=AUDIO instance of tf1.m3u8)

Logs can be seen in second_case.zip.



But no matter what I try, I cannot both both audio and video stream. Am I doing something wrong or it is just not possible to use m3u8 file with multiple streams ?

first_case.zip second_case.zip

[Carlo 4560]

Hi,

Try checking to see if the stream works before adding to Emby.
VLC is good for this.

Use the Media/Open network stream menu option.  Here is the result I get on your URL

[chrishinji 0]

Thank you Carlo,

I already opened this M3U file with VLC :



#EXTM3U
#EXTINF:-1 tvg-id="TF1.fr",TF1 (720p) [Geo-blocked]
https://raw.githubusercontent.c*m/Paradise-91/ParaTV/main/streams/tf1plus/tf1.m3u8

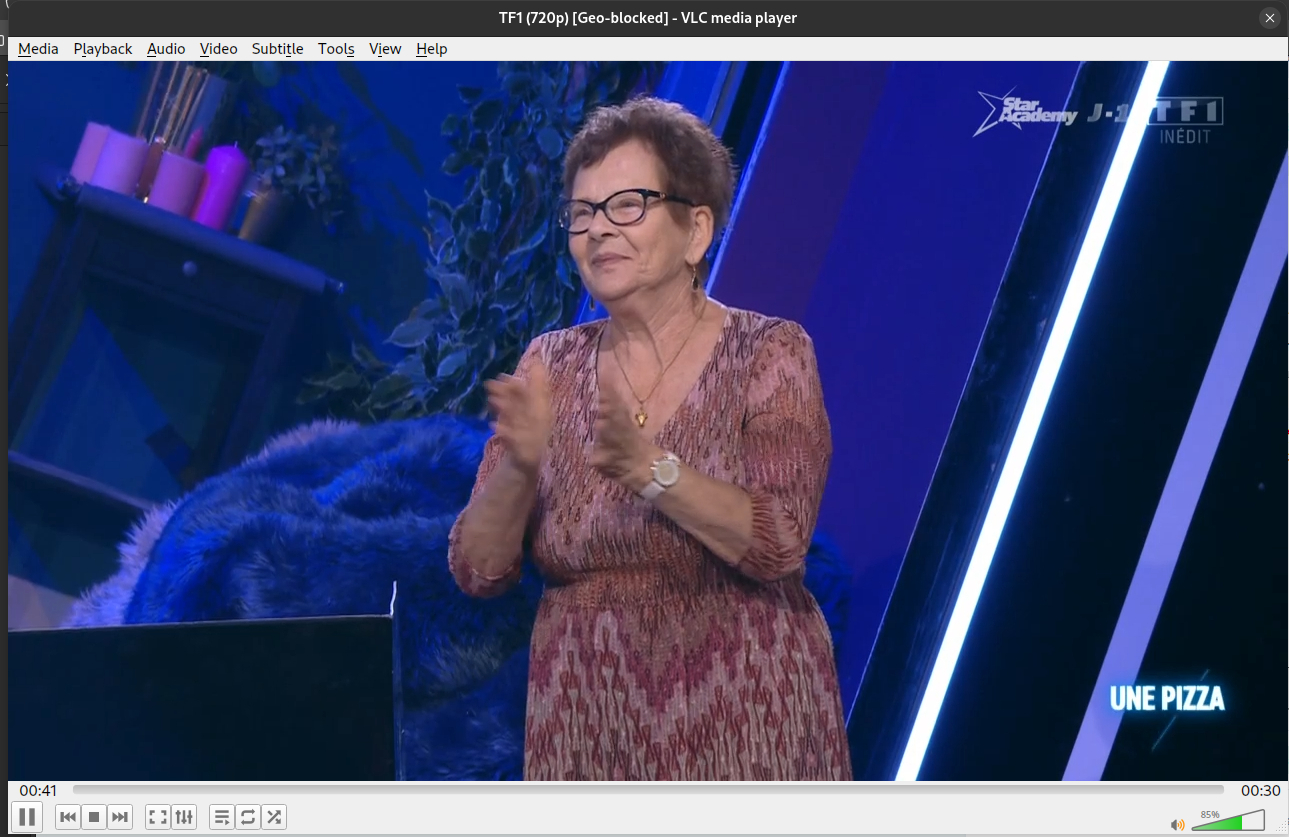

It worked and still works perfectly on my side with VLC , screenshot attached. I will add that both video and audio are working   You can't open it maybe because it Geo-Blocked ?




[Carlo 4560]

I do see lots of errors in the log with bad URIs.
It looks like this channel might be redirected to another URI that is denied access

    22:14:04.985 ffmpeg version 5.1-emby_2023_06_25 Copyright (c) 2000-2022 the FFmpeg developers and softworkz for Emby LLC
    22:14:04.985   built with gcc 10.3.0 (crosstool-NG 1.25.0)
    22:14:04.985 Execution Date: 2024-10-10 22:14:04
    22:14:05.018 [hls @ 0x329d64c0] Opening 'https://simulcast-p.ftven.fr/ZXhwPTE3Mjg2MjM5MDd+YWNsPSUyZip+aG1hYz1lOTU4ODdiNzUwYWMxOTM2M2FiNDYzOTVjM2E4YThlNzEwYTI5NzVlYTQ3NzI0YjY0ZGMyODAwNTEyYjJmZmNi/simulcast/France_2/hls_fr2/France_2-mp4a_96000_fra=20000.m3u8' for reading
    22:14:05.109 [https @ 0x32a09780] HTTP error 403 Forbidden
    22:14:05.109 [hls @ 0x329d64c0] parse_playlist error Server returned 403 Forbidden (access denied) [https://simulcast-p.ftven.fr/ZXhwPTE3Mjg2MjM5MDd+YWNsPSUyZip+aG1hYz1lOTU4ODdiNzUwYWMxOTM2M2FiNDYzOTVjM2E4YThlNzEwYTI5NzVlYTQ3NzI0YjY0ZGMyODAwNTEyYjJmZmNi/simulcast/France_2/hls_fr2/France_2-mp4a_96000_fra=20000.m3u8]
    22:14:05.109 [hls @ 0x329d64c0] Opening 'https://simulcast-p.ftven.fr/ZXhwPTE3Mjg2MjM5MDd+YWNsPSUyZip+aG1hYz1lOTU4ODdiNzUwYWMxOTM2M2FiNDYzOTVjM2E4YThlNzEwYTI5NzVlYTQ3NzI0YjY0ZGMyODAwNTEyYjJmZmNi/simulcast/France_2/hls_fr2/France_2-mp4a_96000_qaa=20002.m3u8' for reading
    22:14:05.212 [https @ 0x32a17c40] HTTP error 403 Forbidden
    22:14:05.213 [hls @ 0x329d64c0] parse_playlist error Server returned 403 Forbidden (access denied) [https://simulcast-p.ftven.fr/ZXhwPTE3Mjg2MjM5MDd+YWNsPSUyZip+aG1hYz1lOTU4ODdiNzUwYWMxOTM2M2FiNDYzOTVjM2E4YThlNzEwYTI5NzVlYTQ3NzI0YjY0ZGMyODAwNTEyYjJmZmNi/simulcast/France_2/hls_fr2/France_2-mp4a_96000_qaa=20002.m3u8]
    22:14:05.213 [hls @ 0x329d64c0] Opening 'https://simulcast-p.ftven.fr/ZXhwPTE3Mjg2MjM5MDd+YWNsPSUyZip+aG1hYz1lOTU4ODdiNzUwYWMxOTM2M2FiNDYzOTVjM2E4YThlNzEwYTI5NzVlYTQ3NzI0YjY0ZGMyODAwNTEyYjJmZmNi/simulcast/France_2/hls_fr2/France_2-mp4a_96000_qad_DESC=20001.m3u8' for reading
    22:14:05.320 [https @ 0x32a14f40] HTTP error 403 Forbidden
    22:14:05.320 [hls @ 0x329d64c0] parse_playlist error Server returned 403 Forbidden (access denied) [https://simulcast-p.ftven.fr/ZXhwPTE3Mjg2MjM5MDd+YWNsPSUyZip+aG1hYz1lOTU4ODdiNzUwYWMxOTM2M2FiNDYzOTVjM2E4YThlNzEwYTI5NzVlYTQ3NzI0YjY0ZGMyODAwNTEyYjJmZmNi/simulcast/France_2/hls_fr2/France_2-mp4a_96000_qad_DESC=20001.m3u8]
    22:14:05.320 [hls @ 0x329d64c0] Opening 'https://simulcast-p.ftven.fr/ZXhwPTE3Mjg2MjM5MDd+YWNsPSUyZip+aG1hYz1lOTU4ODdiNzUwYWMxOTM2M2FiNDYzOTVjM2E4YThlNzEwYTI5NzVlYTQ3NzI0YjY0ZGMyODAwNTEyYjJmZmNi/simulcast/France_2/hls_fr2/France_2-dfxp_10000_fra_CAPT=30001.m3u8' for reading
    22:14:05.408 [https @ 0x32a16440] HTTP error 403 Forbidden
    22:14:05.408 [hls @ 0x329d64c0] parse_playlist error Server returned 403 Forbidden (access denied) [https://simulcast-p.ftven.fr/ZXhwPTE3Mjg2MjM5MDd+YWNsPSUyZip+aG1hYz1lOTU4ODdiNzUwYWMxOTM2M2FiNDYzOTVjM2E4YThlNzEwYTI5NzVlYTQ3NzI0YjY0ZGMyODAwNTEyYjJmZmNi/simulcast/France_2/hls_fr2/France_2-dfxp_10000_fra_CAPT=30001.m3u8]

What happens if you don't use Firefox but instead use an Emby client such as Theater?
