icegood 12 Posted June 15, 2024 Posted June 15, 2024 Under my synology i see line for process Quote bin/mono system/EmbyServer.exe -programdata ... so seems emby is not compiled natively. Why it is done so? Because it is C#-based or smth?
icegood 12 Posted June 18, 2024 Author Posted June 18, 2024 Many mine mp4 files are failed to be parsed for information with next line: Quote 2024-06-18T06:36:46+03:00 ice_home_nas coredump[6087]: Process ffprobe[6086](/volume2/@appstore/EmbyServer/bin/ffprobe) dumped core on signal [4]. Core file [/volume1/@ffprobe.synology_armada370_414slim.42962.core.gz]. Cmdline [/var/packages/EmbyServer/target/bin/ffprobe -i file:/volume1/path/to/mpeg/MOV02443.MPG -threads 0 -v info -print_format json -show_streams -show_chapters -show_format -show_data ] 2024-06-18T06:48:53+03:00 ice_home_nas coredump[9202]: Process ffprobe[9201](/volume2/@appstore/EmbyServer/bin/ffprobe) dumped core on signal [4]. Core file [/volume1/@ffprobe.synology_armada370_414slim.42962.core.gz]. Cmdline [/var/packages/EmbyServer/target/bin/ffprobe -i file:/volume1/backup_hdd//volume1/path/to/other_mp4/some.mp4 -threads 0 -v info -print_format json -show_streams -show_chapters -show_format -show_data ] Beta is taken from https://github.com/MediaBrowser/Emby.Releases/releases/download/4.9.0.24/emby-server-synology7-mono_4.9.0.24_armv7_legacy.spk Model: DS414slim Dump added @ffprobe.synology_armada370_414slim.42962.core.gz
Luke 42077 Posted June 18, 2024 Posted June 18, 2024 Hi please attach the complete Emby server log. Thanks.
Luke 42077 Posted June 18, 2024 Posted June 18, 2024 OK so for these older models the server runs using the mono runtime. ffmpeg, sqlite, and other libraries that we use are compiled natively.
icegood 12 Posted June 19, 2024 Author Posted June 19, 2024 (edited) Please, find logs attached. Note, that my device DS414slim doesn't run code natively as stated here. Use case: just try to open video online More information about failed videos (from VLC): server_logs.zip Edited June 19, 2024 by icegood
Luke 42077 Posted June 20, 2024 Posted June 20, 2024 Hi, I see you installed the armv7 package but are you sure this is an armv7 NAS?

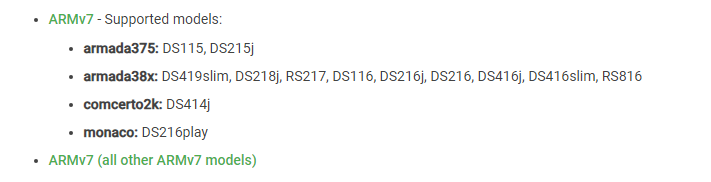

Happy2Play 9780 Posted June 20, 2024 Posted June 20, 2024 3 minutes ago, Luke said: Hi, I see you installed the armv7 package but are you sure this is an armv7 NAS? It is a Marvell Armada 370 88F6707 1.2 GHz CPU which suggests our Armv7_Legacy build. And the others guys chart. I can only assume it falls under the all others Legacy builds.
Luke 42077 Posted June 20, 2024 Posted June 20, 2024 Are you able to run the 4.7 version from Synology package center? Before attempting to use an older version you'll need to delete the server data folder to make a fresh start: /var/packages/EmbyServer/var
icegood 12 Posted June 20, 2024 Author Posted June 20, 2024 On 6/18/2024 at 7:47 PM, icegood said: Beta is taken from https://github.com/MediaBrowser/Emby.Releases/releases/download/4.9.0.24/emby-server-synology7-mono_4.9.0.24_armv7_legacy.spk My build is mentioned in post. Will try stable 4.7... However, must say, have issues only with these old videos. New ones are OK.
icegood 12 Posted June 20, 2024 Author Posted June 20, 2024 (edited) with 4.7.14.0 from synology community it works and video/audio info for failed files is successfully parsed: video: Quote Title480p MPEG1VIDEO CodecMPEG1VIDEO Level-99 Resolution640x480 Aspect Ratio4:3 InterlacedNo Framerate25 Bitrate105 mbps Bit Depth8 bit Pixel Formatyuv420p Reference Frames1 audio: Quote TitleUnd MP2 mono CodecMP2 Layoutmono Channels1 ch Bitrate64 kbps Sample Rate32,000 Hz DefaultNo Something went wrong in newer version since no stream info present in UI for the same files Edited June 20, 2024 by icegood more info
Luke 42077 Posted June 20, 2024 Posted June 20, 2024 OK thanks, so now we know the results from 4.7 and 4.9. Can you try 4.8 from our website?
Happy2Play 9780 Posted June 20, 2024 Posted June 20, 2024 33 minutes ago, icegood said: with 4.7.14.0 from synology community it works and video/audio info for failed files is successfully parsed: video: audio: Something went wrong in newer version since no stream info present in UI for the same files Devs/platform builder would have to comment but will guess there becomes a compatibility issue proceeding as I believe as of 4.9.0.8 there is a netcore change. So these older platforms may be limited. I guess your next test would be seeing if you can upgrade to 4.8 as it is still on netcore 6.
icegood 12 Posted June 20, 2024 Author Posted June 20, 2024 Checked against latest stable 4.8.8.0 - doesn't work. Quote 2024-06-21 01:04:31.482 Error App: Error in ffprobe *** Error Report *** Version: 4.8.8.0 Command line: /volume2/@appstore/EmbyServer/system/EmbyServer.exe -programdata /var/packages/EmbyServer/var -ffdetect /var/packages/EmbyServer/target/bin/ffdetect -ffmpeg /var/packages/EmbyServer/target/bin/ffmpeg -ffprobe /var/packages/EmbyServer/target/bin/ffprobe -defaultdirectory /volume1/Public -updatepackage emby-server-synology7-mono_{version}_armv7_legacy.spk -pidfile /var/packages/EmbyServer/var/EmbyServer.pid -nolocalportconfig -noskia -ignore_vaapi_enabled_flag Operating system: Linux version 3.2.101 (root@build3) (gcc version 8.5.0 (GCC) ) #42962 Mon May 29 14:34:16 CST 2023 Framework: Mono: 6.12.0.182 (tarball Thu Jan 19 10:28:52 PM UTC 2023) OS/Process: X86/X86 Runtime: volume2/@appstore/EmbyServer/lib/mono/4.5/mscorlib.dll Processor count: 1 Data path: /var/packages/EmbyServer/var Application path: /volume2/@appstore/EmbyServer/system Emby.Server.MediaEncoding.Unified.Ffmpeg.FfRunException: Emby.Server.MediaEncoding.Unified.Ffmpeg.FfRunException: Error running ffprobe: -i file:"/path/to/file/DSC-H50/MOV07979.MPG" -threads 0 -v info -print_format json -show_streams -show_chapters -show_format -show_data at Emby.Server.MediaEncoding.Probing.MediaProbeManager.GetMediaInfoInternal (System.String inputPath, System.String primaryPath, MediaBrowser.Model.MediaInfo.MediaProtocol protocol, System.String userAgent, System.Boolean extractChapters, System.String probeSizeArgument, System.Boolean isAudio, System.Boolean hasMixedProtocols, System.Threading.CancellationToken cancellationToken) [0x001dd] in <59b0c601cefc4f678dca703e2fad3041>:0 at Emby.Providers.MediaInfo.FFProbeVideoInfo.ProbeVideo[T] (MediaBrowser.Controller.Providers.MetadataResult`1[T] metadataResult, MediaBrowser.Controller.Providers.MetadataRefreshOptions options, MediaBrowser.Model.Configuration.LibraryOptions libraryOptions, System.Threading.CancellationToken cancellationToken) [0x0026b] in <5fe95be693194ddcbd71be16078d00c8>:0 at Emby.Providers.Manager.MetadataService`2[TItemType,TIdType].RunCustomProvider (MediaBrowser.Controller.Providers.ICustomMetadataProvider`1[TItemType] provider, MediaBrowser.Controller.Providers.MetadataResult`1[T] itemResult, System.String logName, MediaBrowser.Controller.Providers.MetadataRefreshOptions options, MediaBrowser.Model.Configuration.LibraryOptions libraryOptions, Emby.Providers.Manager.RefreshResult refreshResult, System.Threading.CancellationToken cancellationToken) [0x000df] in <5fe95be693194ddcbd71be16078d00c8>:0 Source: mscorlib TargetSite: Void Throw() 2024-06-21 01:04:31.740 Info App: ProcessRun 'StreamTranscode 57d6f7' Execute: /var/packages/EmbyServer/target/bin/ffmpeg -y -copyts -start_at_zero -i "/path/to/file/DSC-H50/MOV07979.MPG" -vn -an -sn -max_delay 5000000 -avoid_negative_ts disabled -f segment -map_metadata -1 -map_chapters -1 -segment_format mpegts -segment_list "/var/packages/EmbyServer/var/transcoding-temp/DF6BE4/DF6BE4.m3u8" -segment_list_type m3u8 -segment_time 00:00:03.000 -segment_list_entry_prefix hls/DF6BE4/ -segment_start_number 0 -individual_header_trailer 0 -write_header_trailer 0 "/var/packages/EmbyServer/var/transcoding-temp/DF6BE4/DF6BE4_%d.ts" 2024-06-21 01:04:32.430 Info App: ProcessRun 'StreamTranscode 57d6f7' Process exited with code 132 - Failed 2024-06-21 01:04:32.445 Error Server: Error processing request *** Error Report *** Version: 4.8.8.0 Command line: /volume2/@appstore/EmbyServer/system/EmbyServer.exe -programdata /var/packages/EmbyServer/var -ffdetect /var/packages/EmbyServer/target/bin/ffdetect -ffmpeg /var/packages/EmbyServer/target/bin/ffmpeg -ffprobe /var/packages/EmbyServer/target/bin/ffprobe -defaultdirectory /volume1/Public -updatepackage emby-server-synology7-mono_{version}_armv7_legacy.spk -pidfile /var/packages/EmbyServer/var/EmbyServer.pid -nolocalportconfig -noskia -ignore_vaapi_enabled_flag Operating system: Linux version 3.2.101 (root@build3) (gcc version 8.5.0 (GCC) ) #42962 Mon May 29 14:34:16 CST 2023 Framework: Mono: 6.12.0.182 (tarball Thu Jan 19 10:28:52 PM UTC 2023) OS/Process: X86/X86 Runtime: volume2/@appstore/EmbyServer/lib/mono/4.5/mscorlib.dll Processor count: 1 Data path: /var/packages/EmbyServer/var Application path: /volume2/@appstore/EmbyServer/system Emby.Server.MediaEncoding.Unified.Ffmpeg.FfRunException: Emby.Server.MediaEncoding.Unified.Ffmpeg.FfRunException: Error starting ffmpeg -y -copyts -start_at_zero -i "/path/to/file/DSC-H50/MOV07979.MPG" -vn -an -sn -max_delay 5000000 -avoid_negative_ts disabled -f segment -map_metadata -1 -map_chapters -1 -segment_format mpegts -segment_list "/var/packages/EmbyServer/var/transcoding-temp/DF6BE4/DF6BE4.m3u8" -segment_list_type m3u8 -segment_time 00:00:03.000 -segment_list_entry_prefix hls/DF6BE4/ -segment_start_number 0 -individual_header_trailer 0 -write_header_trailer 0 "/var/packages/EmbyServer/var/transcoding-temp/DF6BE4/DF6BE4_%d.ts" at Emby.Server.MediaEncoding.Api.BaseStreamingService.StartFfMpeg (Emby.Server.MediaEncoding.Api.StreamState state, System.String outputPath, System.Threading.CancellationToken cancellationToken, System.Boolean acquireResources) [0x006b3] in <59b0c601cefc4f678dca703e2fad3041>:0 at Emby.Server.MediaEncoding.Api.Hls.BaseHlsService.ProcessRequest (Emby.Server.MediaEncoding.Api.StreamState state, Emby.Server.MediaEncoding.Api.StreamRequest request) [0x001d8] in <59b0c601cefc4f678dca703e2fad3041>:0 at Emby.Server.MediaEncoding.Api.Hls.DynamicHlsService.Get (Emby.Server.MediaEncoding.Api.Hls.GetLiveHlsStream request) [0x00212] in <59b0c601cefc4f678dca703e2fad3041>:0 at Emby.Server.Implementations.Services.ServiceController.GetTaskResult (System.Threading.Tasks.Task task) [0x00081] in <f1f641b7295f4057b4606b39fbea98af>:0 at Emby.Server.Implementations.Services.ServiceHandler.ProcessRequestAsync (Emby.Server.Implementations.HttpServer.HttpListenerHost httpHost, MediaBrowser.Controller.IServerApplicationHost appHost, MediaBrowser.Model.Services.IRequest httpReq, MediaBrowser.Model.Services.IResponse httpRes, MediaBrowser.Model.IO.IStreamHelper streamHelper, Emby.Server.Implementations.Services.RestPath restPath, System.String responseContentType, System.Threading.CancellationToken cancellationToken) [0x0018d] in <f1f641b7295f4057b4606b39fbea98af>:0 at Emby.Server.Implementations.HttpServer.HttpListenerHost.RequestHandler (MediaBrowser.Model.Services.IRequest httpReq, System.ReadOnlyMemory`1[T] urlString, System.ReadOnlyMemory`1[T] localPath, System.Threading.CancellationToken cancellationToken) [0x00acb] in <f1f641b7295f4057b4606b39fbea98af>:0 Source: mscorlib TargetSite: Void Throw()
Happy2Play 9780 Posted June 20, 2024 Posted June 20, 2024 I guess the question becomes it 4.7.14.0 the last working version that will work on these Legacy systems? Or is this issue specific to FFMPEG v5.0 and v5.1?
Luke 42077 Posted June 20, 2024 Posted June 20, 2024 8 minutes ago, Happy2Play said: I guess the question becomes it 4.7.14.0 the last working version that will work on these Legacy systems? Or is this issue specific to FFMPEG v5.0 and v5.1? No the issue is most likely that we've updated some library to a newer version and the DS414Slim can't handle it. That's usually what this sort of issue comes down to. I will check with our build developer. This is a 2014 NAS !!
Happy2Play 9780 Posted June 20, 2024 Posted June 20, 2024 4 minutes ago, Luke said: This is a 2014 NAS !! True and last OS update is Version: 7.1.1-42962 Update 6 last year.
icegood 12 Posted June 21, 2024 Author Posted June 21, 2024 nice. Will wait once you release smth. If you need more tests on slim414 - let me know...
icegood 12 Posted July 2, 2024 Author Posted July 2, 2024 Still doesn't work. As i see you use crosstool-ng to generate native parts. Could you please share defcionfig for it and my platform (marvel armada 370) so I will check, whether generated code really creates code against my CPU? Wouldn't it break your NDA? For now I run ffmgeg directly from your emby-ffmpeg: Quote #!/bin/sh APP_DIR=/var/packages/EmbyServer/target #APP_DIR2=/volume2/@appstore/EmbyServer_4.7.14.0 export FONTCONFIG_PATH=$APP_DIR/etc/fonts export LD_LIBRARY_PATH=$APP_DIR/lib export PCI_IDS_PATH=$APP_DIR/share/hwdata/pci.ids export SSL_CERT_FILE=$APP_DIR/etc/ssl/certs/ca-certificates.crt cd $APP_DIR || exit 1 exec bin/ffmpeg "$@" script and obtained "illegal instruction". So it is a problem with either instruction generation or inconsistency between ffmpeg and libraries...
Luke 42077 Posted July 24, 2024 Posted July 24, 2024 Hi, have you tried the 4.8 build that was released in Synology package center?
icegood 12 Posted August 5, 2024 Author Posted August 5, 2024 no ,i hadn't checked. However, i found something interest in your libraries of ver_4.9.0.26. My CPU is: Quote Architecture: armv7l Byte Order: Little Endian CPU(s): 1 On-line CPU(s) list: 0 Vendor ID: Marvell Model name: PJ4/PJ4b Model: 1 Thread(s) per core: 0 Core(s) per socket: 0 Socket(s): 0 Stepping: 0x1 BogoMIPS: 1196.85 Flags: swp half thumb fastmult vfp edsp vfpv3 vfpv3d16 tls readelf -A ffmpeg is: Quote Attribute Section: aeabi File Attributes Tag_CPU_name: "7-A" Tag_CPU_arch: v7 Tag_CPU_arch_profile: Application Tag_ARM_ISA_use: Yes Tag_THUMB_ISA_use: Thumb-2 Tag_FP_arch: VFPv3-D16 Tag_ABI_PCS_wchar_t: 4 Tag_ABI_FP_rounding: Needed Tag_ABI_FP_denormal: Needed Tag_ABI_FP_exceptions: Needed Tag_ABI_FP_number_model: IEEE 754 Tag_ABI_align_needed: 8-byte Tag_ABI_align_preserved: 8-byte, except leaf SP Tag_ABI_enum_size: int Tag_CPU_unaligned_access: v6 and it looks OK. But readelf -A libavcodec.so: Quote Attribute Section: aeabi File Attributes Tag_CPU_name: "7-A" Tag_CPU_arch: v7 Tag_CPU_arch_profile: Application Tag_ARM_ISA_use: Yes Tag_THUMB_ISA_use: Thumb-2 Tag_FP_arch: VFPv3 Tag_Advanced_SIMD_arch: NEONv1 Tag_ABI_PCS_wchar_t: 4 Tag_ABI_FP_rounding: Needed Tag_ABI_FP_denormal: Needed Tag_ABI_FP_exceptions: Needed Tag_ABI_FP_number_model: IEEE 754 Tag_ABI_align_needed: 8-byte Tag_ABI_enum_size: int Tag_CPU_unaligned_access: v6 Why the hell you substitute library with another ABI? My proc doesn't have neon instructions and flag Tag_Advanced_SIMD_arch: NEONv1 is very suspicious!
icegood 12 Posted August 5, 2024 Author Posted August 5, 2024 (edited) Strange, 4.7 has the same flags as 4.8 but it works, so I suspect that something changed in the code, that made the compiler use unknown instructions. This is what community does: https://github.com/SynoCommunity/spksrc/blob/master/toolchain/syno-armada370-7.1/Makefile#L11 Compare with your toolchain Edited August 5, 2024 by icegood community
alucryd 315 Posted August 6, 2024 Posted August 6, 2024 Our toolchain is fine, always has been. Unfortunately we don't live in a perfect world, especially when it comes to cross compiling. Some libraries will happily modify your build flags without telling you, the culprit is either an updated or new library, just need to find which one.
alucryd 315 Posted August 6, 2024 Posted August 6, 2024 4 evil libs were identified and tamed. The next beta should work fine, we should be able to backport these in a new stable later on.
