How to auto convert lets encryt to a pkcs12.pfx file whe certbot renew

[JuJuJurassic 49]

I've implemented SSL on Emby, my server runs Ubuntu, but it should be similar for Windows, and automated the generation of the PFX file.

I must hasten, I had a lot of help from the Let Encrypt community, MikeMcQ in particular, but here's how to do it.

Use the snap install, you have more options, which, as you'll see is important. Watch out for typos, I typed a - instead of a _    Once it was pointed out it all worked perfectly.

You can cheat, which is what I did, I installed certbot using the script from the post "SSL made Easy", which got me working with SSL, I then removed the installed certbot and installed the snap version, as that has the "post_hook" option we need. See here https://certbot.eff.org/instructions?ws=other&os=ubuntufocal

The problem is certbot will auto-renew, but it won't create the .PFX file, you need it to do that afterwards for emby

The command in ubuntu to to this is

openssl pkcs12 -export -out pkcs12.pfx -inkey privkey.pem -in cert.pem -certfile chain.pem -passin pass:******* -passout pass:******

Check the file names, mine are the default for Ubuntu. I don't know what they are for Windows

This generates the pkcs12.pfx file

But Emby can't see it in Ubuntu, so you need to change the owner using
chown emby:root pkcs12.pfx

I created a script file, remember to flag it as executable, called convert-to-pfs.sh

literally just this

openssl pkcs12 -export -out pkcs12.pfx -inkey privkey.pem -in cert.pem -certfile chain.pem -passin pass:***** -passout pass:*****
chown emby:root pkcs12.pfx

I put it in the /etc/letsencrypt/live/Yourdomain I should move it, it's not good practice, but I didn't want any path problems

Once certbot is installed, it creates a conf file in /etc/letsencrypt/live/Yourdomain, called yourdomain.conf in the renewals section it will say something like

# Options used in the renewal process
[renewalparams]
account = *********
authenticator = standalone
server = https://acme-v02.api.letsencrypt.org/directory

You need to add the line

post_hook = /etc/letsencrypt/live/your domain/convert-to-pfs.sh

You can do this with the reconfigure command, but you can cut and paste from this post. Remember to change the path.

That will then call the conversion AFTER the certificate has been renewed. Hey presto you have the pfx file updated

To test use certbot renew --dry-run --run-deploy-hooks    This will not renew the certificates, but will call the script. Just make sure you've renamed the original pfx file so you can see the date and time changes. If you get "certbot: error: unrecognized arguments: --run-deploy-hooks", you're not using the snap version of certbot.

Apart from that, that's it

Have fun

juju





Edited March 15, 2024 by JuJuJurassic

[Luke 42077]

Thanks for sharing.

[njiska 8]

On 15/03/2024 at 15:24, JuJuJurassic said:

I've implemented SSL on Emby, my server runs Ubuntu, but it should be similar for Windows, and automated the generation of the PFX file.

I must hasten, I had a lot of help from the Let Encrypt community, MikeMcQ in particular, but here's how to do it.

Use the snap install, you have more options, which, as you'll see is important. Watch out for typos, I typed a - instead of a _    Once it was pointed out it all worked perfectly.

You can cheat, which is what I did, I installed certbot using the script from the post "SSL made Easy", which got me working with SSL, I then removed the installed certbot and installed the snap version, as that has the "post_hook" option we need. See here https://certbot.eff.org/instructions?ws=other&os=ubuntufocal

The problem is certbot will auto-renew, but it won't create the .PFX file, you need it to do that afterwards for emby

The command in ubuntu to to this is

openssl pkcs12 -export -out pkcs12.pfx -inkey privkey.pem -in cert.pem -certfile chain.pem -passin pass:******* -passout pass:******

Check the file names, mine are the default for Ubuntu. I don't know what they are for Windows

This generates the pkcs12.pfx file

But Emby can't see it in Ubuntu, so you need to change the owner using
chown emby:root pkcs12.pfx

I created a script file, remember to flag it as executable, called convert-to-pfs.sh

literally just this

openssl pkcs12 -export -out pkcs12.pfx -inkey privkey.pem -in cert.pem -certfile chain.pem -passin pass:***** -passout pass:*****
chown emby:root pkcs12.pfx

I put it in the /etc/letsencrypt/live/Yourdomain I should move it, it's not good practice, but I didn't want any path problems

Once certbot is installed, it creates a conf file in /etc/letsencrypt/live/Yourdomain, called yourdomain.conf in the renewals section it will say something like

# Options used in the renewal process
[renewalparams]
account = *********
authenticator = standalone
server = https://acme-v02.api.letsencrypt.org/directory

You need to add the line

post_hook = /etc/letsencrypt/live/your domain/convert-to-pfs.sh

You can do this with the reconfigure command, but you can cut and paste from this post. Remember to change the path.

That will then call the conversion AFTER the certificate has been renewed. Hey presto you have the pfx file updated

To test use certbot renew --dry-run --run-deploy-hooks    This will not renew the certificates, but will call the script. Just make sure you've renamed the original pfx file so you can see the date and time changes. If you get "certbot: error: unrecognized arguments: --run-deploy-hooks", you're not using the snap version of certbot.

Apart from that, that's it

Have fun

juju





This looks super helpful. I've been struggling to find a solution to automate this and have been putting off scripting my own.

Given the easy and popularity of LetsEncrypt, I with this was just natively supported or at least available as an addon.

[toooo 8]

I am suddenly having a problem getting my certificate to work. Everything was working fine, then the cert got automatically renewed (certbot) and the pfx version causes Emby to show up as "Not Secured" in a browser. All my other services use the same source key/cert/chain files and show as "secure" just fine. In Microsoft Edge and Brave I get "net::ERR_CERT_AUTHORITY_INVALID".

I have tried creating the pfx certificate with different options, with and without password, blank password, etc. I have not found a combination that secures my https and does not trigger a browser problem.

Using the below command, my server is accessible, but always shows as "Not Secured" in a browser

openssl pkcs12 -export -out /path_to_dir/{mydomain}.pfx -inkey /etc/letsencrypt/live/{mydomain}/privkey.pem -in /etc/letsencrypt/live/{mydomain}/cert.pem -certfile /etc/letsencrypt/live/{mydomain}/chain.pem -name {mydomain} -passout pass:whatever

Other versions I have tried:

• with "-nodes", the emby page just sits showing the logo, never loads anything else
• with "-nocerts", page does not load at all (does not seem to make any connection)
• "-passout pass: -nokeys" page does not load
• have passed fullchain.pem to "-in" and for "-certfile"
• passed fullchain.pem to "-certfile"

OpenSSL version 3.0.17 1 Jul 2025

Does anyone have tips or ideas to troubleshoot this?

[Q-Droid 989]

Restart your Emby server and attach the new server log. It could be something as simple as file ownership or permissions on the keystore.







[overclockerq955 0]

On 3/15/2024 at 8:24 PM, JuJuJurassic said:

I've implemented SSL on Emby, my server runs Ubuntu, but it should be similar for Windows, and automated the generation of the PFX file.

I must hasten, I had a lot of help from the Let Encrypt community, MikeMcQ in particular, but here's how to do it.

Use the snap install, you have more options, which, as you'll see is important. Watch out for typos, I typed a - instead of a _    Once it was pointed out it all worked perfectly.

You can cheat, which is what I did, I installed certbot using the script from the post "SSL made Easy", which got me working with SSL, I then removed the installed certbot and installed the snap version, as that has the "post_hook" option we need. See here https://certbot.eff.org/instructions?ws=other&os=ubuntufocal

The problem is certbot will auto-renew, but it won't create the .PFX file, you need it to do that afterwards for emby

The command in ubuntu to to this is

openssl pkcs12 -export -out pkcs12.pfx -inkey privkey.pem -in cert.pem -certfile chain.pem -passin pass:******* -passout pass:******

Check the file names, mine are the default for Ubuntu. I don't know what they are for Windows

This generates the pkcs12.pfx file

But Emby can't see it in Ubuntu, so you need to change the owner using
chown emby:root pkcs12.pfx

I created a script file, remember to flag it as executable, called convert-to-pfs.sh

literally just this

openssl pkcs12 -export -out pkcs12.pfx -inkey privkey.pem -in cert.pem -certfile chain.pem -passin pass:***** -passout pass:*****
chown emby:root pkcs12.pfx

I put it in the /etc/letsencrypt/live/Yourdomain I should move it, it's not good practice, but I didn't want any path problems

Once certbot is installed, it creates a conf file in /etc/letsencrypt/live/Yourdomain, called yourdomain.conf in the renewals section it will say something like

# Options used in the renewal process
[renewalparams]
account = *********
authenticator = standalone
server = https://acme-v02.api.letsencrypt.org/directory

You need to add the line

post_hook = /etc/letsencrypt/live/your domain/convert-to-pfs.sh

You can do this with the reconfigure command, but you can cut and paste from this post. Remember to change the path.

That will then call the conversion AFTER the certificate has been renewed. Hey presto you have the pfx file updated

To test use certbot renew --dry-run --run-deploy-hooks    This will not renew the certificates, but will call the script. Just make sure you've renamed the original pfx file so you can see the date and time changes. If you get "certbot: error: unrecognized arguments: --run-deploy-hooks", you're not using the snap version of certbot.

Apart from that, that's it

Have fun

juju





Thanks for the help! Here's my version I used for my Synology NAS (limited access, tools, and rights, compared to a ubuntu), maybe it'll help someone.

First of all, I have the server (synology NAS) on my own domain, with self-signed let's encrypt cert.

sudo su
cd /volumeX/#RandomUserFolder#/synocert/
touch cert_renewal.sh
vim cert_renewal.sh (i to edit, then paste the content below, esc to finish edit, :w! to save and :q to close)

#####Content of the file########
cd /volumeX/#RandomUserFolder#/synocert && cp "/usr/syno/etc/certificate/_archive/$(cat /usr/syno/etc/certificate/_archive/DEFAULT)/privkey.pem" /volumeX/#RandomUserFolder#/synocert && cp "/usr/syno/etc/certificate/_archive/$(cat /usr/syno/etc/certificate/_archive/DEFAULT)/cert.pem" /volumeX/#RandomUserFolder#/synocert && cp "/usr/syno/etc/certificate/_archive/$(cat /usr/syno/etc/certificate/_archive/DEFAULT)/chain.pem" /volumeX/#RandomUserFolder#/synocert && echo "File copy was successful!" && openssl pkcs12 -export -out pkcs12.pfx -inkey privkey.pem -in cert.pem -certfile chain.pem -passout pass:12345 && echo "Successful Emby certificate change!" && synopkg restart EmbyServer && echo "Embyserver restarted!"
######End of file#############

On the webgui, go to control center-->Task Scheduler-->create-->
User: root
On the schedule tab, I set monthly run
On the Task settings tab, i selected "send run details by email" (then you'll have info about if the renewal was successful or not)
And the user definied script:
bash /volumeX/#RandomUserFolder#/synocert/cert_renewal.sh

On the Emby webgui make sure in the network settings, the cert option points to the right location (eg.: /volumeX/#RandomUserFolder#/synocert/pkcs12.pfx ), and also type the export password of the cert, from the script above.

[toooo 8]

Sorry for the huge delay, I lost access to my account for a while. Currently, my certificate appears fully functional. For posterity, my setup is detailed below.



----- Certificate renewal and conversion

I use Letsencrypt and a DDNS service. To update the Emby certificate with LE, I have a script in "/etc/letsencrypt/renewal-hooks/deploy/deployhook.sh". After converting the cert, I "chown & chmod" for the "user:group" that the Emby service runs under (I use systemd to run "emby-server.service").

#!/bin/bash
logpath=/var/log/certbot-renew.log
echo "$(date) renewing certs DEPLOY-HOOK" >> $logpath

# location of active/latest LE certificates
le_dir="/etc/letsencrypt/live"
# your dns name associated with your WAN/external IP address
dns_name="YOURDOMAIN"
# where to put your .pfx cert
emby_dir="YOURembyFOLDER"

### stop running emby server
echo "$(date) stopping emby-server" >> $logpath
systemctl stop emby-server >> $logpath

### handle Emby cert
# backup existing
echo "$(date) mkdir -p $emby_dir/bak" >> $logpath
mkdir -p $emby_dir/bak

# put in your emby-server "user:group"
chown -R user:group $emby_dir/bak
echo "$(date) mv emby/*.pfx $emby_dir/bak/" >> $logpath
mv $emby_dir/*.pfx $emby_dir/bak/

# convert certificate to Emby compatible format.
# replace "certpass" with password that you will put into the Emby network configuration
echo "$(date) openssl convert to pkcs12" >> $logpath
openssl pkcs12 -export -out $emby_dir/$dns_name.pfx -inkey $le_dir/$dns_name/privkey.pem -in $le_dir/$dns_name/cert.pem -certfile $le_dir/$dns_name/chain.pem -passout pass:certpass

# put in your emby-server "user:group"
echo "$(date) chown user:group" >> $logpath
chown user:group $emby_dir/$dns_name.pfx
chmod u=rwx,g+rwx,o=r $emby_dir/$dns_name.pfx

# restart Emby service
echo "$(date) emby-server restarting" >> $logpath
systemctl restart emby-server >> $logpath

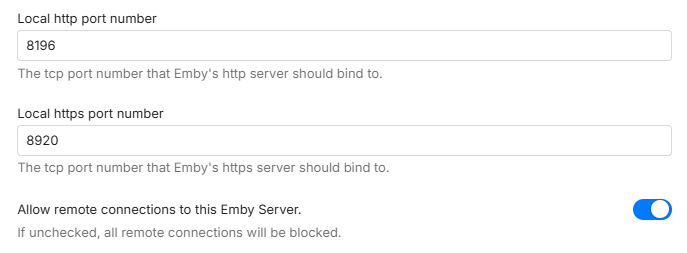

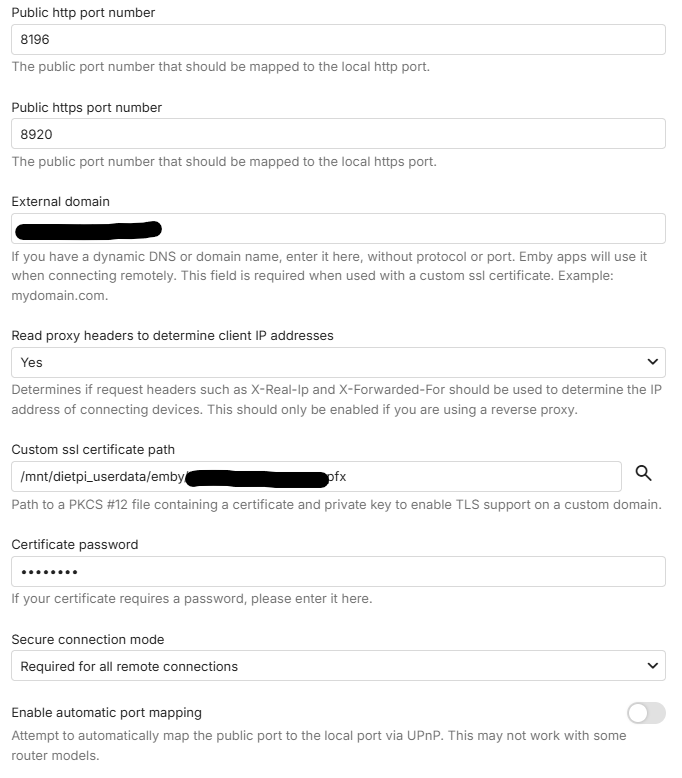

----- Emby settings

....... The public https port is what I use from Emby apps (TV, mobile, etc.). The certificate password is set inside the deployhook script.

!!WARNING!!: this is a potential security risk if not set up appropriately. My unsecured port is not forwarded externally (at the router/modem, etc.).



----- DNS (so that my domain works on local network using "domain.com:port" from Emby apps)

I run Pi-hole for ad-blocking and such. I set a local DNS for my own domain name --> my server LAN ip address. This way, my devices will connect to my Emby instance directly over LAN when on my local network, instead of going out over the internet and back.



I think that's all. Hope this helps someone.



Edited November 22, 2025 by toooo
housekeeping
