Difficulty connecting Emby server to domain name

[DragoMag 4]

Hello,
I'm currently trying to link my Emby server to my domain name (in this discussion we'll assume it's "DragoMag.fr" for example).

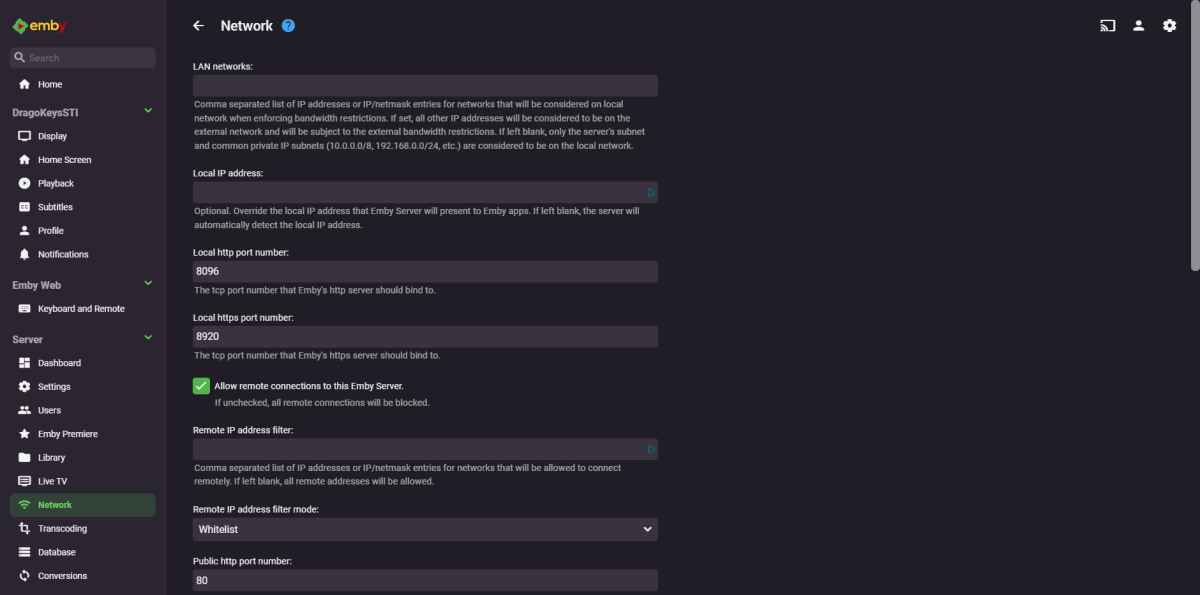

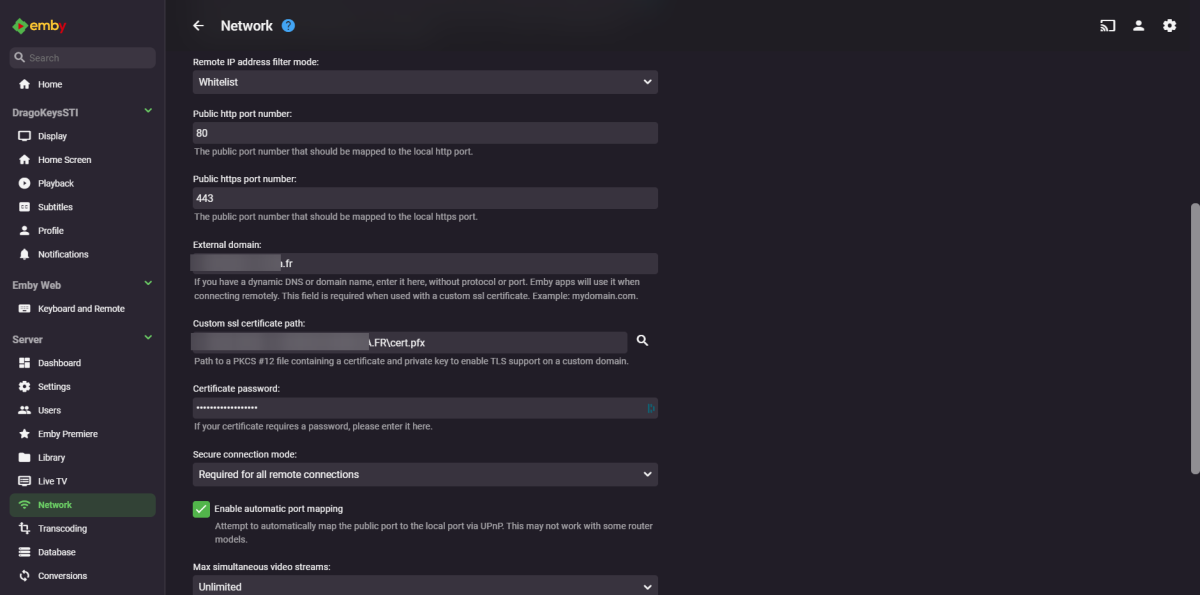

Obviously, I asked around before I came across another post (https://emby.media/community/index.php?/topic/29437-emby-domain-name/) and I followed. The DNS settings look good, I put the SSL certificate that I converted to .pfx from openssl and the ports too. I'm posting screenshots anyway.

I've been doing this since this morning (about 6 hours ago). DNS propagation could be a cause, but I don't think so.

I'll give you more details when we talk.

I wish you a pleasant day, thank you in advance for your answers.

[pwhodges 2012]

You don't say what specifically is wrong.

Have you gone through the requirements for remote access as described in the Emby support article on the subject?

https://emby.media/support/articles/Remote-Setup.html

Paul

[DragoMag 4]

For WAN access I've set up my domain name, but when I want to access it I don't get the Emby page.

[pwhodges 2012]

Things you might need to do:

Point your domain name to your external address;
Specify in your router port-forwarding from that address to your server's local address, changing the port if desired;
Ensure that your server's local firewall will allow the connection.

Port-forwarding can sometimes be automatic (using uPNP), but it needs to be enabled in both Emby and your Router (if it's even offered); and doing it that way is less flexible (you can't specify a different port), and enabling uPNP is a security risk anyway.

Which of these things have you done?

If you plan to add a certificate for https access, there's more to do, of course, but you can think about that later if you want.

Paul
