Biofects 4 Posted May 19, 2023 Posted May 19, 2023 Hello, I had to build a quick little machine to replace my older home machine. I wanted to go cheap(yes I know never go cheap) the specs are: Motherboard: PRO Z790-A WIFI DDR4 CPU: 13th Gen Intel(R) Core(TM) i7-13700K Memory: 32GB GPU: MSI Radeon 6650xt Drive 1tb m.2 I have all my media on a storage using cifs Id do use this for the entire home automation and other projects as well so not just dedicated to Emby(sorry) I have looked at logs and see that its using the intel CPU for transcoding, Any advice would be great. ffmpeg-transcode-b7e2b5ee-c6da-42d8-a347-6592fd44f08d_1.txt
Biofects 4 Posted May 19, 2023 Author Posted May 19, 2023 @kikinjowell qsync is for qnap nas, I should actually disable that since the transcoding happens on the host not the storage, and yes my storage is an old 8 bay brobofs
kikinjo 281 Posted May 19, 2023 Posted May 19, 2023 Did not understand part "qsync is for qnap nas" Raptor lake is latest generation intel cpu with very good gpu, UHD 770 if i m not mistaken on i7. Use that for transcoding. i have the i9 of same generation and gpu is very powerful. Disable all Vappi checkboxes, and try it. Drivers and everithing seems in place, so that should work fine. For MSI Radeon 6650xt, i think you are missing drivers or something since it is not detected. Question is if it is supported in emby also. 1
Biofects 4 Posted May 19, 2023 Author Posted May 19, 2023 I can see FFmpeg can use AMDGPU(unless I am reading this wrong) ffmpeg -h encoder=h264_vaapi ffmpeg version 4.4.2-0ubuntu0.22.04.1 Copyright (c) 2000-2021 the FFmpeg developers built with gcc 11 (Ubuntu 11.2.0-19ubuntu1) configuration: --prefix=/usr --extra-version=0ubuntu0.22.04.1 --toolchain=hardened --libdir=/usr/lib/x86_64-linux-gnu --incdir=/usr/include/x86_64-linux-gnu --arch=amd64 --enable-gpl --disable-stripping --enable-gnutls --enable-ladspa --enable-libaom --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libcdio --enable-libcodec2 --enable-libdav1d --enable-libflite --enable-libfontconfig --enable-libfreetype --enable-libfribidi --enable-libgme --enable-libgsm --enable-libjack --enable-libmp3lame --enable-libmysofa --enable-libopenjpeg --enable-libopenmpt --enable-libopus --enable-libpulse --enable-librabbitmq --enable-librubberband --enable-libshine --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvorbis --enable-libvpx --enable-libwebp --enable-libx265 --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-libzvbi --enable-lv2 --enable-omx --enable-openal --enable-opencl --enable-opengl --enable-sdl2 --enable-pocketsphinx --enable-librsvg --enable-libmfx --enable-libdc1394 --enable-libdrm --enable-libiec61883 --enable-chromaprint --enable-frei0r --enable-libx264 --enable-shared libavutil 56. 70.100 / 56. 70.100 libavcodec 58.134.100 / 58.134.100 libavformat 58. 76.100 / 58. 76.100 libavdevice 58. 13.100 / 58. 13.100 libavfilter 7.110.100 / 7.110.100 libswscale 5. 9.100 / 5. 9.100 libswresample 3. 9.100 / 3. 9.100 libpostproc 55. 9.100 / 55. 9.100 Encoder h264_vaapi [H.264/AVC (VAAPI)]: General capabilities: dr1 delay hardware Threading capabilities: none Supported hardware devices: vaapi Supported pixel formats: vaapi_vld h264_vaapi AVOptions: -low_power <boolean> E..V....... Use low-power encoding mode (only available on some platforms; may not support all encoding features) (default false) -idr_interval <int> E..V....... Distance (in I-frames) between IDR frames (from 0 to INT_MAX) (default 0) -b_depth <int> E..V....... Maximum B-frame reference depth (from 1 to INT_MAX) (default 1) -rc_mode <int> E..V....... Set rate control mode (from 0 to 6) (default auto) auto 0 E..V....... Choose mode automatically based on other parameters CQP 1 E..V....... Constant-quality CBR 2 E..V....... Constant-bitrate VBR 3 E..V....... Variable-bitrate ICQ 4 E..V....... Intelligent constant-quality QVBR 5 E..V....... Quality-defined variable-bitrate AVBR 6 E..V....... Average variable-bitrate -qp <int> E..V....... Constant QP (for P-frames; scaled by qfactor/qoffset for I/B) (from 0 to 52) (default 0) -quality <int> E..V....... Set encode quality (trades off against speed, higher is faster) (from -1 to INT_MAX) (default -1) -coder <int> E..V....... Entropy coder type (from 0 to 1) (default cabac) cavlc 0 E..V....... cabac 1 E..V....... vlc 0 E..V....... ac 1 E..V....... -aud <boolean> E..V....... Include AUD (default false) -sei <flags> E..V....... Set SEI to include (default identifier+timing+recovery_point) identifier E..V....... Include encoder version identifier timing E..V....... Include timing parameters (buffering_period and pic_timing) recovery_point E..V....... Include recovery points where appropriate -profile <int> E..V....... Set profile (profile_idc and constraint_set*_flag) (from -99 to 65535) (default -99) constrained_baseline 578 E..V....... main 77 E..V....... high 100 E..V....... -level <int> E..V....... Set level (level_idc) (from -99 to 255) (default -99) 1 10 E..V....... 1.1 11 E..V....... 1.2 12 E..V....... 1.3 13 E..V....... 2 20 E..V....... 2.1 21 E..V....... 2.2 22 E..V....... 3 30 E..V....... 3.1 31 E..V....... 3.2 32 E..V....... 4 40 E..V....... 4.1 41 E..V....... 4.2 42 E..V....... 5 50 E..V....... 5.1 51 E..V....... 5.2 52 E..V....... 6 60 E..V....... 6.1 61 E..V....... 6.2 62 E..V.......
Biofects 4 Posted May 19, 2023 Author Posted May 19, 2023 The reason I want to offload transcoding to GPU is this server sits in a rack and has no monitor attached. I have other programs that use the CPU more frequent and heavier.
Biofects 4 Posted May 19, 2023 Author Posted May 19, 2023 just some more info sudo lshw -c video *-display UNCLAIMED description: VGA compatible controller product: Advanced Micro Devices, Inc. [AMD/ATI] vendor: Advanced Micro Devices, Inc. [AMD/ATI] physical id: 0 bus info: pci@0000:03:00.0 version: c1 width: 64 bits clock: 33MHz capabilities: pm pciexpress msi vga_controller bus_master cap_list configuration: latency=0 resources: iomemory:600-5ff iomemory:620-61f memory:6000000000-61ffffffff memory:6200000000-620fffffff ioport:4000(size=256) memory:50200000-502fffff memory:50300000-5031ffff *-display description: Display controller product: Intel Corporation vendor: Intel Corporation physical id: 2 bus info: pci@0000:00:02.0 version: 04 width: 64 bits clock: 33MHz capabilities: pciexpress msi pm bus_master cap_list configuration: driver=i915 latency=0 resources: iomemory:620-61f iomemory:400-3ff irq:143 memory:6210000000-6210ffffff memory:4000000000-400fffffff ioport:5000(size=64) memory:4010000000-4016ffffff memory:4020000000-40ffffffff

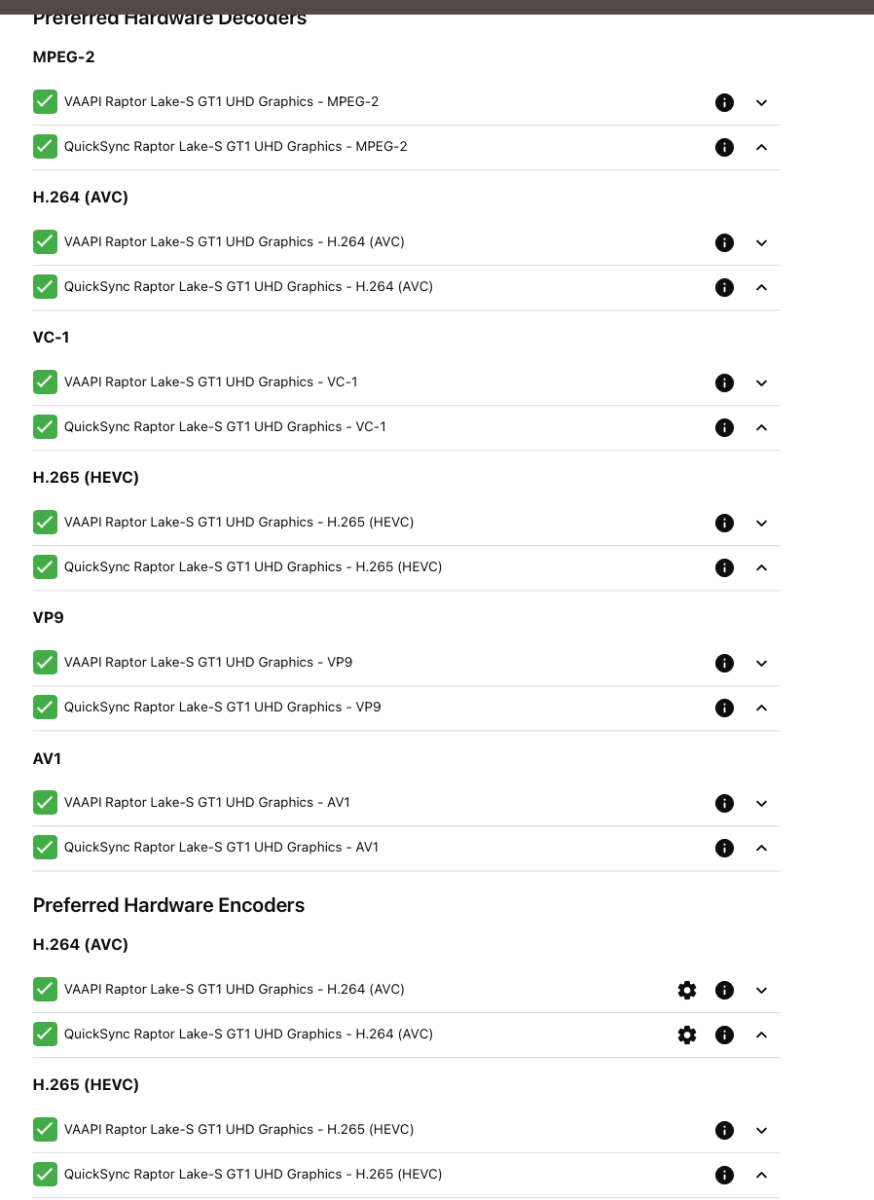

kikinjo 281 Posted May 19, 2023 Posted May 19, 2023 Your CPU Intel has GPU also, as you see on screenshots that you posted from emby. GT1 UHD Graphics.
Solution Biofects 4 Posted May 19, 2023 Author Solution Posted May 19, 2023 Think I found the issue.... https://www.amd.com/en/products/graphics/amd-radeon-rx-6500-xt#product-specs Supported Rendering Format HDMI™ 4K Support Yes 4K H264 Decode Yes 4K H264 Encode No H265/HEVC Decode Yes H265/HEVC Encode No AV1 Decode No Guess I need to sell this and got get the 3060ti 1
Biofects 4 Posted May 23, 2023 Author Posted May 23, 2023 Hey so I made a mistake, When looking at the AMD site, I selected the 6500xt I run 6650xt which does support encoding/transcoding. I have the mesa drivers and the gpu driver installed but Emby still will not see it as an option for transcoding. Any help will be great. https://www.amd.com/en/products/graphics/amd-radeon-rx-6650-xt Supported Rendering Format HDMI™ 4K Support Yes 4K H264 Decode Yes 4K H264 Encode Yes H265/HEVC Decode Yes H265/HEVC Encode Yes AV1 Decode Yes
Biofects 4 Posted May 23, 2023 Author Posted May 23, 2023 I don't see where I can remove the solved from this thread or if I need to create a new one

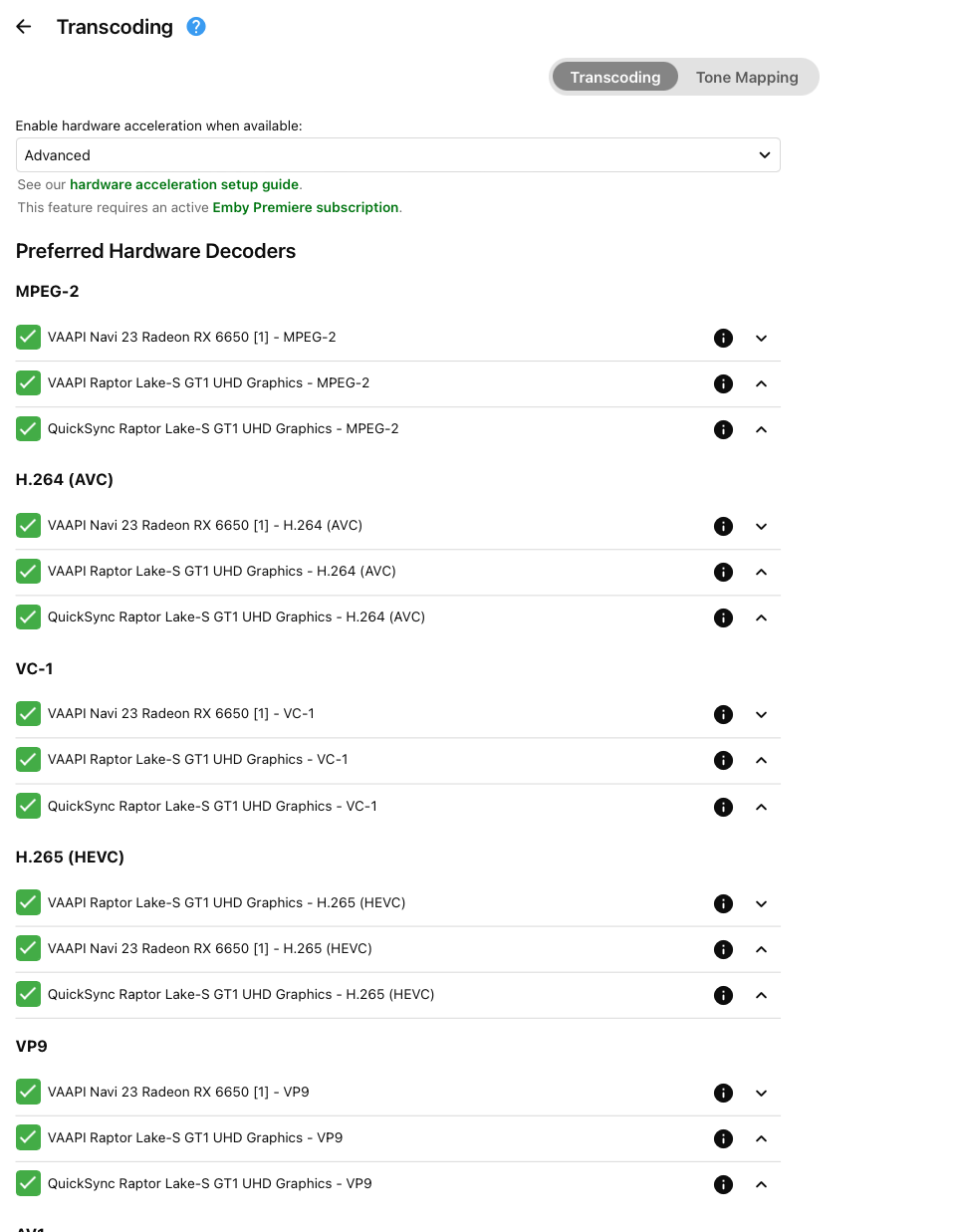

Biofects 4 Posted May 23, 2023 Author Posted May 23, 2023 (edited) Ok FINALLY! after some reading and found this thread I was able to get the GPU usable in Ember, I never enrolled it in MOK, now that the drivers will load on boot each time it works For this using AMD graphics this is the AMDGPU-install flags I used amdgpu-install --usecase=workstation,opencl --vulkan=pro --no-32 --accept-eula This will ask to create a MOK password (make sure you enter one and CONFIRM else it will fail Then you have to reboot (make sure you have a display present) On boot you will get the blue MOK screen Follow instructions and then boot. Edited May 23, 2023 by Biofects added screenshot 1
