HDR tone mapping Not working

[Hyy2001X 1]

CPU: AMD 5600G with Vega7 APU

Platform: Docker on linux, kernel 6.1.0, uses offical emby/embyserver:4.7.2.0 image

Normal GPU transcoding is working. But HDR tone mapping has no effect, the picture is still gray when playing HDR video

Edited February 11, 2023 by Hyy2001X

[Happy2Play 9780]

Please post the server and ffmpeg log for a specific example.

How to Report a Problem



[Hyy2001X 1]

Here is the server and ffmpeg log, thanks!

embyserver.txt ffmpeg-transcode-3e35e51d-a8ae-4b09-a5e5-779de0026463_1.txt

[Happy2Play 9780]

7 hours ago, Hyy2001X said:

Here is the server and ffmpeg log, thanks!

embyserver.txt 18.5 kB · 0 downloads ffmpeg-transcode-3e35e51d-a8ae-4b09-a5e5-779de0026463_1.txt 23.85 kB · 1 download

Doesn't look like you enabled it.

Info    Tone Mapping would be desired, but VAAPI tone mapping mapping method is set to 'none'

@softworkzare there separate settings?  Or is the diagnostic plugin needed.

Edited February 15, 2023 by Happy2Play

[Happy2Play 9780]

Is there a reason you are on an old server?

Emby Server version: 4.7.2.0

[softworkz 5066]

39 minutes ago, Happy2Play said:

@softworkzare there separate settings?  Or is the diagnostic plugin needed.

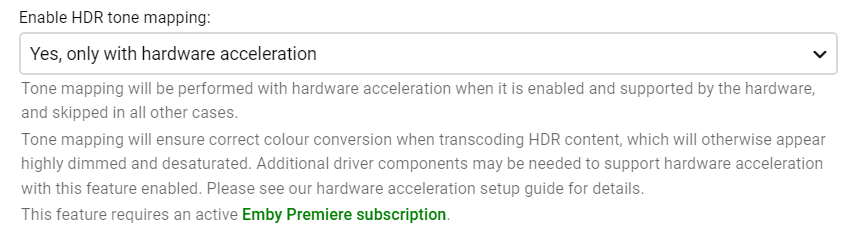

The selection on the Transcoding page can switch it on or off only.
With the Diagnostics Plugin you get more detailed control (and it's a bit better understandable).

[Hyy2001X 1]

I upgraded the image to the latest version 'emby/embyserver:4.7.11.0', and installed 'Diagnostic Options 4.7.0.60' plugin

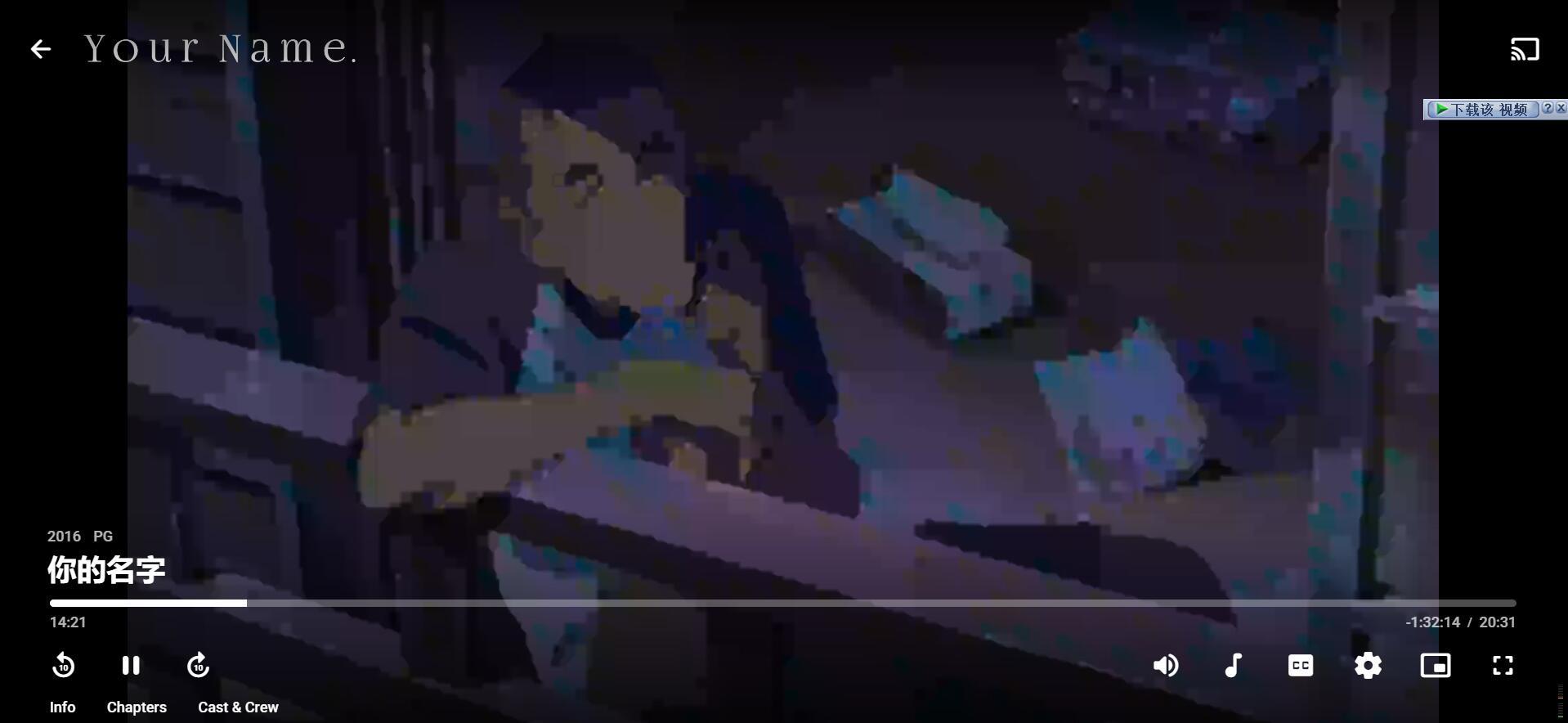

Now I enabled 'Tone Mapping' in 'Diagnostic Options 4.7.0.60' plugin, I find that the GPU does not work and the CPU is full when transcoding, the picture is very blurred, like p2.jpg

Here is the latest server and ffmpeg log, photos, thanks for helping!

embyserver.txt ffmpeg-transcode-8222a280-05eb-4f5f-ab6f-69385474e85f_1.txt

[Hyy2001X 1]

I just tried to use 'AMD Radeon RX590 GME' GPU for transcoding, and the results are consistent. so I think Hardware HDR tone mapping can only be used on Intel GPU

[softworkz 5066]

6 hours ago, Hyy2001X said:

I just tried to use 'AMD Radeon RX590 GME' GPU for transcoding, and the results are consistent. so I think Hardware HDR tone mapping can only be used on Intel GPU

Yes, that's correct!
