Movie not showing with Dolby Vision

[jsc1205 51]

Any reason why a movie will not show up as having Dolby Vision?  Here is what MediaInfo shows for the file:

Format :	HEVC
Format/Info :	High Efficiency Video Coding
Format profile :	Main 10@L5.1@High
HDR format :	Dolby Vision, Version 1.0, dvhe.07.06, BL+EL+RPU, Blu-ray compatible / SMPTE ST 2094 App 4, Version 1, HDR10+ Profile B compatible
Codec ID :	V_MPEGH/ISO/HEVC

But in Emby it just shows "4K HVEC HDR10"

[Happy2Play 9783]

Emby currently does not have the info but believe it will in 4.8.

Current option



[jsc1205 51]

I have that plugin installed and it still doesn't show as Dolby Vision

[Happy2Play 9783]

5 minutes ago, jsc1205 said:

I have that plugin installed and it still doesn't show as Dolby Vision

That should be asking in the plugin topic as Officially Emby will not have anything until 4.8.



[Cheesegeezer 3104]

20 minutes ago, jsc1205 said:

I have that plugin installed and it still doesn't show as Dolby Vision

Pop over to the plugin thread and list your concerns there. Also read the wiki link in the first post to ensure you are doing everything correctly

[Revarious 0]

since 4.8 is out in beta now, can you confirm if Version 4.8.0.42 beta

has the dolbyvision identification yet? if so ill remove this plugin....

[Luke 42083]

Yes it does. You'll need to refresh metadata on existing content.

[rbjtech 5284]

2 hours ago, Luke said:

Yes it does. You'll need to refresh metadata on existing content.

2 hours ago, Revarious said:

since 4.8 is out in beta now, can you confirm if Version 4.8.0.42 beta

has the dolbyvision identification yet? if so ill remove this plugin....

If you only want to know it may be 'some type' of DV, then yes - but if you want to know what profile it is - whether it has a HDR10 or HDR10+ compatibility track and details of all the HD Audio tracks object based information such as Atmos etc - then I would stick with the Plugin ...

edit - I just raised a FR to get the info they do have added - emby still doesn't have the Audio details as this is ffmpeg issue, so even if DV details are added, the MediaInfo plugin is still providing a lot of extra functionality and mediainfo detail.



Edited August 29, 2023 by rbjtech

[Revarious 0]

11 hours ago, Luke said:

Yes it does. You'll need to refresh metadata on existing content.

Does it support dual layer dolby vision files? or will it ignore the 2nd dv stream and only read the hdr10 stream?

[rbjtech 5284]

From my experience, no software based player will read dual layer DV titles - you need to merge the tracks using makemkv or dovitools - into a single layer DV profile 7, or profile 8 track - which will then include both the HDR10 (base layer) and DV (Enhancement layer).



the example given in your first post - already is a single layer 'merged' track FYI.

edit - ah that's not you - that's another OP ..

Quote

HDR format :Dolby Vision, Version 1.0, dvhe.07.06, BL+EL+RPU, Blu-ray compatible / SMPTE ST 2094 App 4, Version 1, HDR10+ Profile B compatible



Edited August 29, 2023 by rbjtech

[Revarious 0]

28 minutes ago, rbjtech said:

From my experience, no software based player will read dual layer DV titles - you need to merge the tracks using makemkv or dovitools - into a single layer DV profile 7, or profile 8 track - which will then include both the HDR10 (base layer) and DV (Enhancement layer).



the example given in your first post - already is a single layer 'merged' track FYI.

edit - ah that's not you - that's another OP ..



my files are mp4 so makemkv doesn't support it as a source file, I had been looking around but struggling with all the cmd line based tools, ill keep looking though, thank you.

[rbjtech 5284]

The mp4' container may well be DV but that container does not support HD Audio. It really depends what MediaInfo (the Application) says - it it says the same as above (BL+EL) - then it 'should' play as DV...

[Revarious 0]

11 minutes ago, rbjtech said:

The mp4' container may well be DV but that container does not support HD Audio. It really depends what MediaInfo (the Application) says - it it says the same as above (BL+EL) - then it 'should' play as DV...

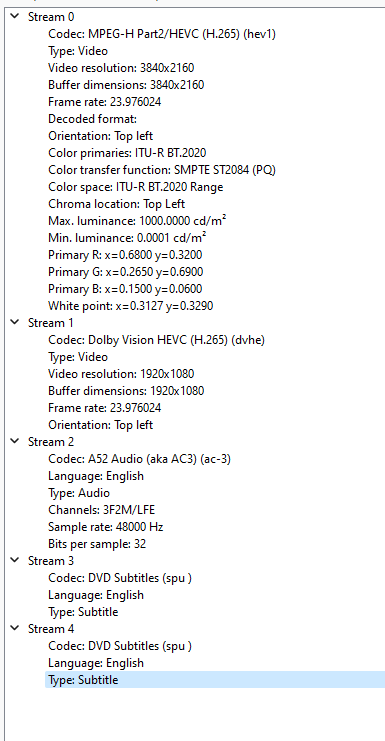

Example,

plays in emby as HDR10



Edited August 29, 2023 by Revarious
