Issues with HDR Emby Chrome

[Rolivaras 2]

I'm having problems with some HDR files.
The problems are:
The color is washed out.
CPU usage is at 100%

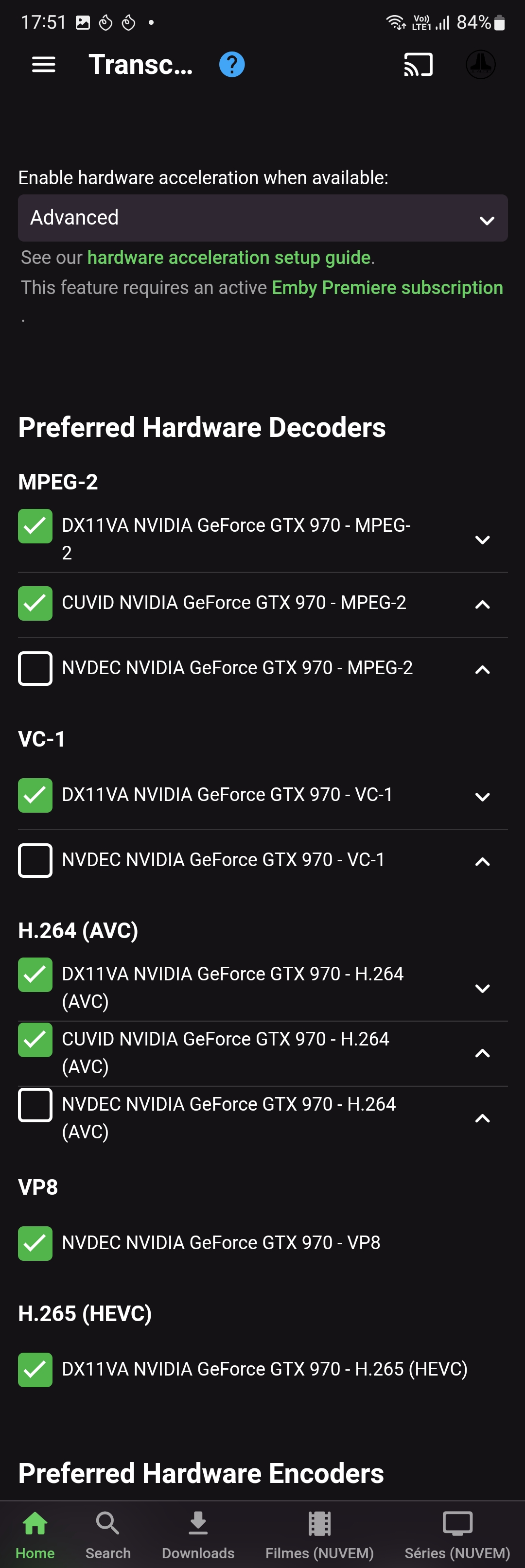

I'm using emby premiere, enabled hardware acceleration, HDR tone mapping.

Here are examples of how it's going.

The images are from Emby Theater, but in the chrome browser they also appear that way.

Here, using a 1080p file without HDR.





Here, 4k file with HDR.

embyserver.txt ffmpeg-transcode-025a0fda-02c0-4b7c-a936-0ba8d53467dc_1.txt ffmpeg-transcode-566efb22-df93-4936-b070-43e64de307a3_1.txt ffmpeg-transcode-ad6b2b57-a352-442c-b27b-74ec75346121_1.txt ffmpeg-transcode-b6766d67-7d8b-41c8-9e7e-fd7397a4e85e_1.txt ffmpeg-transcode-d2361996-bcc2-46af-98d1-80a9e95126fb_1.txt ffmpeg-transcode-e54906a8-7a1f-4982-8fed-1793846add70_1.txt

Edited September 9, 2022 by Rolivaras

[Luke 42077]

Hi, @softworkz will take a look at this. Thanks.

[softworkz 5066]

@Rolivaras - The problem is that your GPU is very old. It doesn't even support HEVC decoding. That's why decoding is done by CPU and later, the uncompressed frames are uploaded to the hardware - which takes time.

There's one playback with tone mapping which is above 1.0x speed, because it's scaled down to 640x360, but the other log shows an attempt to perform tone mapping on the full 4k video and that's just too much.

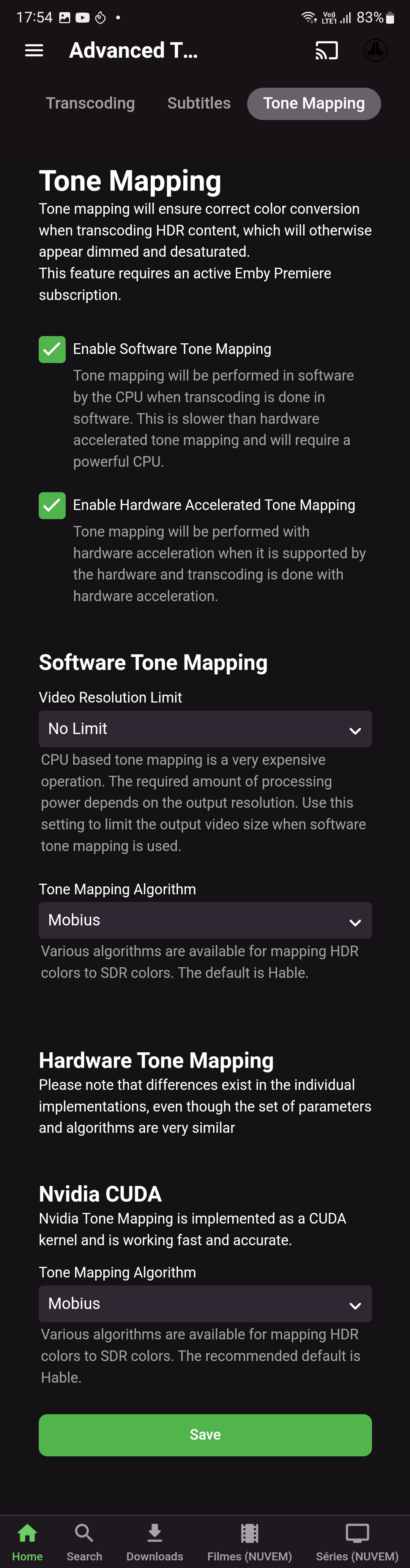

For the colors, you can try different tone mapping settings by installing the Diagnostics Plugin, going to "Advanced Transcoding" and then switch to the "Tone Mapping" tab.

Hope this helps,
sw

[Rolivaras 2]

I understand, thanks for the clarification.  About the plugin, where can I get it?





Taking advantage of the topic, I've noticed that .ssa subtitles that are embedded in the container take a few minutes to load and appear on the client.  Usually in anime files.

 Another problem with embedded subtitles, when there is an accent like ã á, the phrases are not appearing.  This happened in the file with tone mapping problem on this topic.

[Happy2Play 9780]

15 minutes ago, Rolivaras said:

About the plugin, where can I get it?

In the Plugin catalog.

[Rolivaras 2]

Okay, I changed the tone mapping algorithms, but it made no difference.

[Luke 42077]

On 9/23/2022 at 8:57 AM, Rolivaras said:

Okay, I changed the tone mapping algorithms, but it made no difference.

OK, @softworkz will take a look at this. Thanks.

[softworkz 5066]

On 9/16/2022 at 3:51 AM, Rolivaras said:

Taking advantage of the topic, I've noticed that .ssa subtitles that are embedded in the container take a few minutes to load and appear on the client.

There will soon be an alternative way without delay.

(@Luke => one more reason why this shouldn't be a hidden option)

On 9/16/2022 at 3:51 AM, Rolivaras said:

 Another problem with embedded subtitles, when there is an accent like ã á, the phrases are not appearing.  This happened in the file with tone mapping problem on this topic

While playing, could you please go to the transcoding-temp folder and copy those files which match the pattern: xxxxx_s3_NN.vtt

Please zip them and post here.

[softworkz 5066]

On 9/23/2022 at 2:57 PM, Rolivaras said:

Okay, I changed the tone mapping algorithms, but it made no difference.

The algorithm differences can be quite subtle sometimes..

Please post a log from before and after the change - to be sure it was effective.

[Rolivaras 2]

13 hours ago, softworkz said:

There will soon be an alternative way without delay.

(@Luke => one more reason why this shouldn't be a hidden option)

While playing, could you please go to the transcoding-temp folder and copy those files which match the pattern: xxxxx_s3_NN.vtt

Please zip them and post here.



B9028C.rar

[Rolivaras 2]

13 hours ago, softworkz said:

The algorithm differences can be quite subtle sometimes..

Please post a log from before and after the change - to be sure it was effective.



embyserver (1).txt embyserver.txt embyserver-63800991302.txt ffmpeg-transcode-9c286d96-7476-4814-b7b8-577ef36b36af_1.txt hardware_detection-63800991324.txt ffmpeg-transcode-ca87ac7e-051d-46d5-aba4-eb5751376634_1.txt

[Happy2Play 9780]

@Rolivaras Both these logs show Tone Mapping is disabled.

Info    Tone Mapping would be desired, but the algorithm is set to 'None'

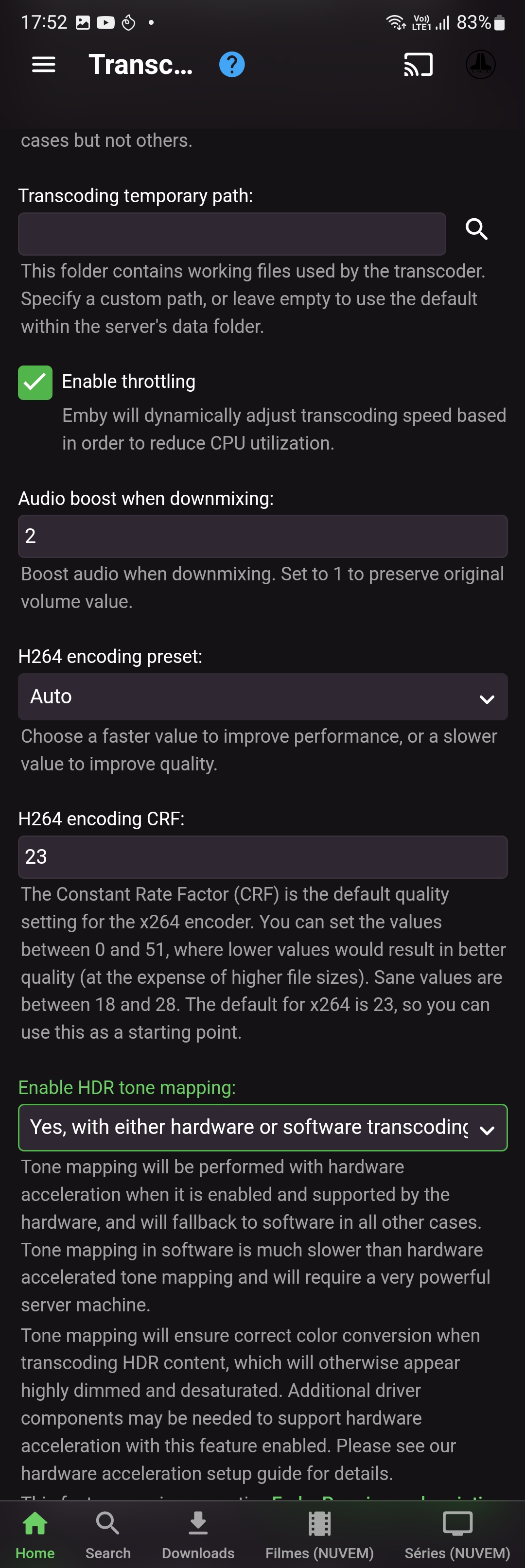

What is your Tone Mapping setting on Transcode menu?

[Rolivaras 2]

43 minutes ago, Happy2Play said:

@RolivarasAmbos os logs mostram que o mapeamento de tons está desabilitado.

Qual é a sua configuração de mapeamento de tom no menu Transcode?

[softworkz 5066]

This is weird. I'm not sure what's happening here. Could you please post the tonemapping.xml file from the programdata/config folder?



[Rolivaras 2]

4 hours ago, softworkz said:

This is weird. I'm not sure what's happening here. Could you please post the tonemapping.xml file from the programdata/config folder?





tonemapping.xml

[softworkz 5066]

Hm, that looks good. I even placed it locally into my config and it's working fine.

Does tone mapping work if you disable HW acceleration?
(make sure to choose a low quality in the client like 480p or something, so it's not running too slow.)

[Rolivaras 2]

1 hora atrás, softworkz disse:

Hum, isso parece bom. Eu até localmente na minha configuração e está funcionando bem.

O mapeamento de toneladas de funções se você tornar um HW?
(certifique-se de escolher uma qualidade baixa no cliente como 480p ou algo assim, para que não fique lento.)

I put it to play without hardware acceleration, but with tone mapping, it didn't have the greenish screen like before the premium subscription, but it still has a whitish tone.

embyserver.txt ffmpeg-transcode-bc39c9dc-4d54-4785-a6ea-681dfc6cea70_1.txt ffmpeg-transcode-86e21794-44d0-4a91-8177-14780add2e9b_1.txt

Edited October 12, 2022 by Rolivaras

[Luke 42077]

@Rolivaras are you still having an issue with this?

[Rolivaras 2]

17 minutes ago, Luke said:

@Rolivaras are you still having an issue with this?

No, I installed a GPU that supports HVEC. But I still have a problem here:
