empy transcodes h264 into h264? no HW acceleration? Screenshots + log

[Utini 14]

Hello everyone,

I am using emby-server on Archlinux with emby-cliebt on LG OLED CX TV.

I recently recorded some videos with my phone and tries watching them in emby on my TV.

I noticed that a playback is very laggy and figured out that for some weird reason it is transcoding the file.

I have selected all quality/speed options in the client to "auto". Or should I select the highest possible option?

Also, it doesn't seem to use HW Acceleration and I don't know why?

Attached are the following screenshots:

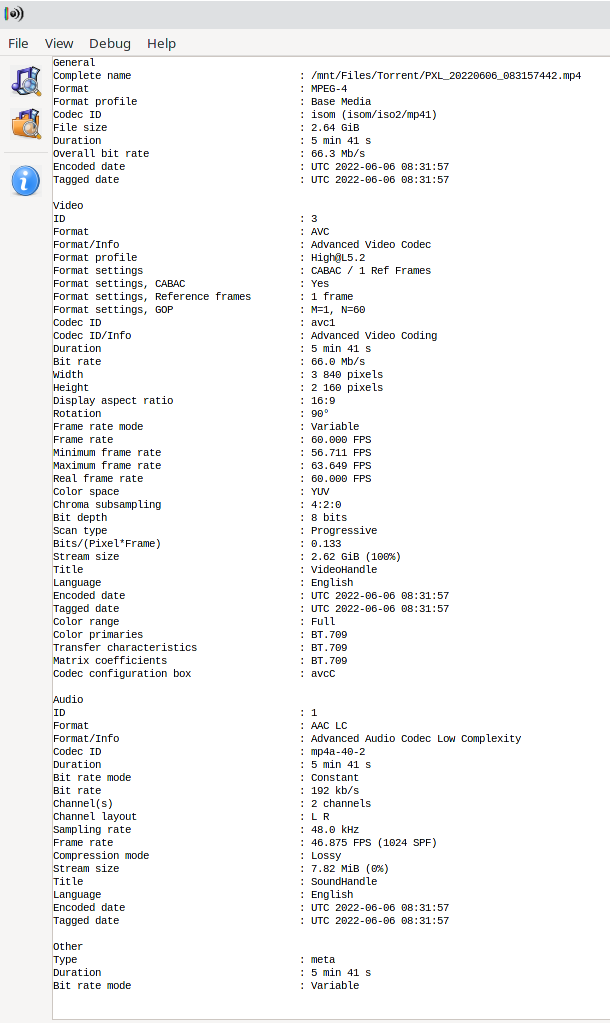

• emby3.png: Detailed info of the video file codec

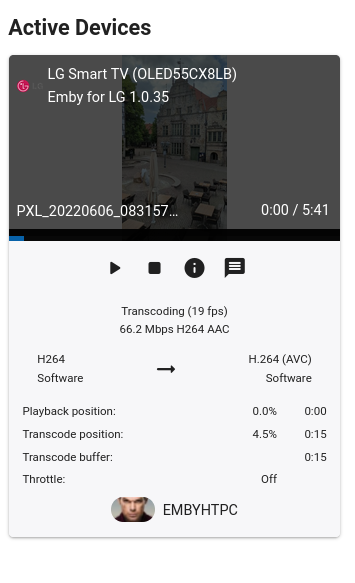

• emby1.png and emby2.png showing what it is transcoding and why

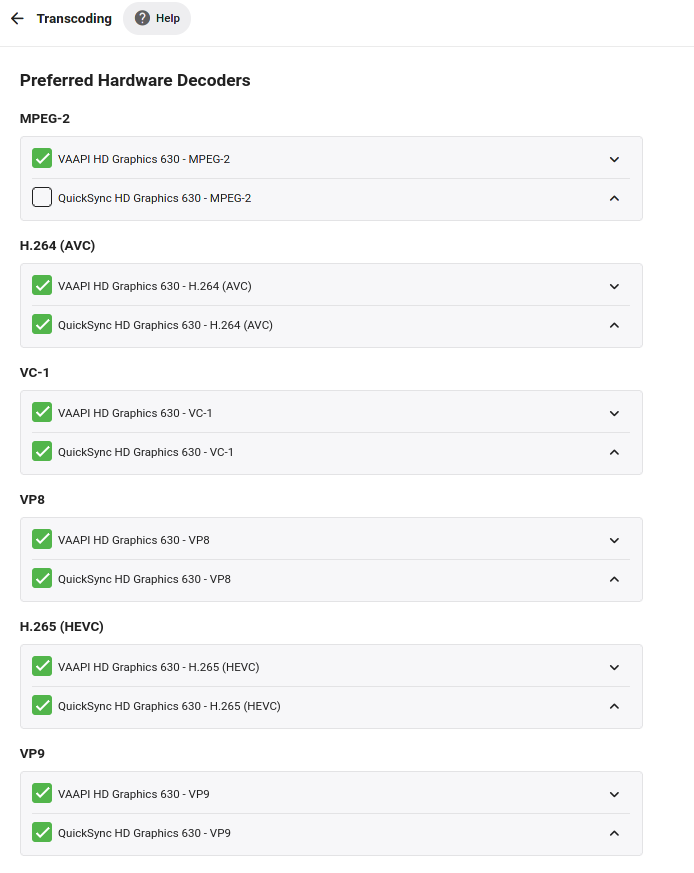

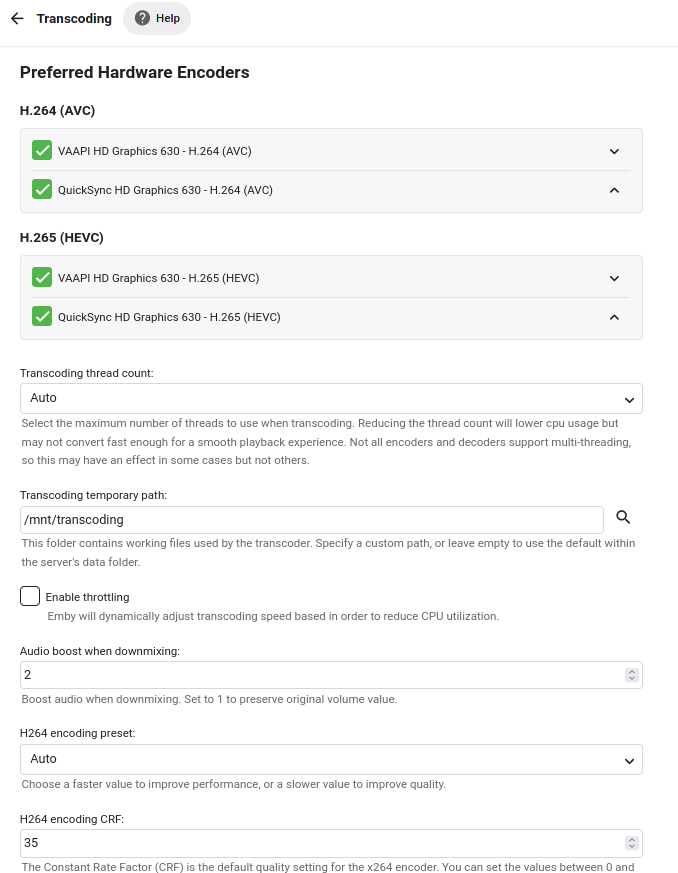

• emby4.png and emby5.png is showing my transcoding options
• emby6.png shows my hardware
• Additional Info: The video files are on a 14TB HDD but the temportary transcoding directory is on my SSD.
• Log file attached as well



Thanks in advance!

ffmpeg-transcode-bc148b38-2004-4069-8e38-50d9f1621e7d_1.txt

Edited June 7, 2022 by Utini

[Utini 14]

So if I understand the log file correctly then:

Warning: The required encoding level (AvcLevel52) is greater than the maximum level supported by the client (AvcLevel51)

My phones recording is in a higher quality than what the emby client on the LG TV supports/accepts?! Any way to fix this / change this or is transcoding the only option?

And HW acceleration is not available because I do not have the premiere subscription?

Bzw, just for info: my Server and Client are connected via my local home network with 1Gbit/s.

Edited June 7, 2022 by Utini

[Utini 14]

I just purchased emby premiere and HW decoding now works fine.

I can now also play the file just fine except that it is turned by 90 degrees for some reason.

It was recorded in high screen instead of wide screen.

Also: Transcoding TrueHD gives me weird green artifacts in the image. But I will make a new topic for that once I have done some testing.

[Luke 42078]

On 6/8/2022 at 3:48 PM, Utini said:

I just purchased emby premiere and HW decoding now works fine.

I can now also play the file just fine except that it is turned by 90 degrees for some reason.

It was recorded in high screen instead of wide screen.

Also: Transcoding TrueHD gives me weird green artifacts in the image. But I will make a new topic for that once I have done some testing.

hi @Utini thanks for following up. And yes regarding the artifacts, can we please go over an example? Thanks !

[Utini 14]

On 7/13/2022 at 5:01 AM, Luke said:

hi @Utini thanks for following up. And yes regarding the artifacts, can we please go over an example? Thanks !

I just tried playing a file with TrueHD and got the error "No compatible streams are currently available".

Log attached.

Mediainfo:



General
Unique ID                                : 287226258812269188628064696855041281690 (0xD815C3E87A6F4A66CC37363312A20E9A)
Complete name                            : /mnt/Files/Torrent/Venom.Let There Be Carnage.2021.2160p.UHD.BluRay.Atmos.x265-HQMUX.mkv
Format                                   : Matroska
Format version                           : Version 4
File size                                : 18.2 GiB
Duration                                 : 1 h 37 min
Overall bit rate mode                    : Variable
Overall bit rate                         : 26.7 Mb/s
Movie name                               : Venom: Let There Be Carnage.2021.UHD-HQMUX
Encoded date                             : UTC 2021-12-11 12:02:58
Writing application                      : mkvmerge v63.0.0 ('Everything') 64-bit
Writing library                          : libebml v1.4.2 + libmatroska v1.6.4

Video
ID                                       : 1
Format                                   : HEVC
Format/Info                              : High Efficiency Video Coding
Format profile                           : Main 10@L5.1@High
HDR format                               : SMPTE ST 2086, HDR10 compatible
Codec ID                                 : V_MPEGH/ISO/HEVC
Duration                                 : 1 h 37 min
Bit rate                                 : 21.5 Mb/s
Width                                    : 3 840 pixels
Height                                   : 2 076 pixels
Display aspect ratio                     : 1.85:1
Frame rate mode                          : Variable
Frame rate                               : 23.976 (24000/1001) FPS
Color space                              : YUV
Chroma subsampling                       : 4:2:0 (Type 2)
Bit depth                                : 10 bits
Bits/(Pixel*Frame)                       : 0.112
Stream size                              : 14.6 GiB (80%)
Writing library                          : x265 3.5+12+14-106329cbd:[Windows][GCC 10.3.0][64 bit] 10bit
Encoding settings                        : cpuid=1111039 / frame-threads=6 / numa-pools=48 / wpp / no-pmode / no-pme / no-psnr / no-ssim / log-level=2 / input-csp=1 / input-res=3840x2076 / interlace=0 / total-frames=139968 / level-idc=51 / high-tier=1 / uhd-bd=0 / ref=4 / no-allow-non-conformance / repeat-headers / annexb / aud / no-eob / no-eos / hrd / info / hash=0 / no-temporal-layers / no-open-gop / min-keyint=23 / keyint=250 / gop-lookahead=0 / bframes=10 / b-adapt=2 / b-pyramid / bframe-bias=0 / rc-lookahead=40 / lookahead-slices=4 / scenecut=40 / no-hist-scenecut / radl=0 / no-splice / no-intra-refresh / ctu=64 / min-cu-size=8 / no-rect / no-amp / max-tu-size=32 / tu-inter-depth=4 / tu-intra-depth=4 / limit-tu=4 / rdoq-level=2 / dynamic-rd=0.00 / no-ssim-rd / signhide / no-tskip / nr-intra=0 / nr-inter=0 / no-constrained-intra / no-strong-intra-smoothing / max-merge=3 / limit-refs=3 / limit-modes / me=3 / subme=7 / merange=57 / temporal-mvp / no-frame-dup / no-hme / weightp / no-weightb / no-analyze-src-pics / deblock=-3:-3 / no-sao / no-sao-non-deblock / rd=4 / selective-sao=0 / no-early-skip / rskip / no-fast-intra / no-tskip-fast / no-cu-lossless / no-b-intra / no-splitrd-skip / rdpenalty=0 / psy-rd=2.00 / psy-rdoq=1.90 / no-rd-refine / no-lossless / cbqpoffs=-2 / crqpoffs=-2 / rc=crf / crf=14.0 / qcomp=0.65 / qpstep=4 / stats-write=0 / stats-read=0 / vbv-maxrate=160000 / vbv-bufsize=160000 / vbv-init=0.9 / min-vbv-fullness=50.0 / max-vbv-fullness=80.0 / crf-max=0.0 / crf-min=0.0 / ipratio=1.40 / pbratio=1.30 / aq-mode=1 / aq-strength=0.90 / cutree / zone-count=0 / no-strict-cbr / qg-size=32 / no-rc-grain / qpmax=69 / qpmin=0 / no-const-vbv / sar=0 / overscan=0 / videoformat=5 / range=0 / colorprim=9 / transfer=16 / colormatrix=9 / chromaloc=1 / chromaloc-top=2 / chromaloc-bottom=2 / display-window=0 / master-display=G(8500,39850)B(6550,2300)R(35400,14600)WP(15635,16450)L(10000000,1) / cll=7659,522 / min-luma=1 / max-luma=1000 / log2-max-poc-lsb=8 / vui-timing-info / vui-hrd-info / slices=1 / no-opt-qp-pps / no-opt-ref-list-length-pps / no-multi-pass-opt-rps / scenecut-bias=0.05 / hist-threshold=0.03 / no-opt-cu-delta-qp / no-aq-motion / hdr10 / hdr10-opt / no-dhdr10-opt / no-idr-recovery-sei / analysis-reuse-level=0 / analysis-save-reuse-level=0 / analysis-load-reuse-level=0 / scale-factor=0 / refine-intra=0 / refine-inter=0 / refine-mv=1 / refine-ctu-distortion=0 / no-limit-sao / ctu-info=0 / no-lowpass-dct / refine-analysis-type=0 / copy-pic=1 / max-ausize-factor=1.0 / no-dynamic-refine / no-single-sei / no-hevc-aq / no-svt / no-field / qp-adaptation-range=1.00 / scenecut-aware-qp=0 / conformance-window-right-offset=0 / conformance-window-bottom-offset=0 / decoder-max-rate=0 / no-vbv-live-multi-pass
Language                                 : English
Default                                  : Yes
Forced                                   : No
Color range                              : Limited
Color primaries                          : BT.2020
Transfer characteristics                 : PQ
Matrix coefficients                      : BT.2020 non-constant
Mastering display color primaries        : BT.2020
Mastering display luminance              : min: 0.0001 cd/m2, max: 1000 cd/m2
Maximum Content Light Level              : 7659 cd/m2
Maximum Frame-Average Light Level        : 522 cd/m2

Audio #1
ID                                       : 2
Format                                   : MLP FBA 16-ch
Format/Info                              : Meridian Lossless Packing FBA with 16-channel presentation
Commercial name                          : Dolby TrueHD with Dolby Atmos
Codec ID                                 : A_TRUEHD
Duration                                 : 1 h 37 min
Bit rate mode                            : Variable
Bit rate                                 : 4 291 kb/s
Maximum bit rate                         : 7 512 kb/s
Channel(s)                               : 8 channels
Channel layout                           : L R C LFE Ls Rs Lb Rb
Sampling rate                            : 48.0 kHz
Frame rate                               : 1 200.000 FPS (40 SPF)
Compression mode                         : Lossless
Stream size                              : 2.92 GiB (16%)
Language                                 : English
Default                                  : Yes
Forced                                   : No
Number of dynamic objects                : 11
Bed channel count                        : 1 channel
Bed channel configuration                : LFE

Audio #2
ID                                       : 3
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Commercial name                          : Dolby Digital
Codec ID                                 : A_AC3
Duration                                 : 1 h 37 min
Bit rate mode                            : Constant
Bit rate                                 : 640 kb/s
Channel(s)                               : 6 channels
Channel layout                           : L R C LFE Ls Rs
Sampling rate                            : 48.0 kHz
Frame rate                               : 31.250 FPS (1536 SPF)
Compression mode                         : Lossy
Stream size                              : 445 MiB (2%)
Language                                 : English
Service kind                             : Complete Main
Default                                  : No
Forced                                   : No

Text #1
ID                                       : 4
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 27 min
Bit rate                                 : 31.9 kb/s
Frame rate                               : 0.430 FPS
Count of elements                        : 2252
Stream size                              : 19.9 MiB (0%)
Language                                 : English
Default                                  : No
Forced                                   : No

Text #2
ID                                       : 5
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 43.5 kb/s
Frame rate                               : 0.562 FPS
Count of elements                        : 3258
Stream size                              : 30.1 MiB (0%)
Title                                    : English (SDH)
Language                                 : English
Default                                  : No
Forced                                   : No

Text #3
ID                                       : 6
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 26.6 kb/s
Frame rate                               : 0.366 FPS
Count of elements                        : 2112
Stream size                              : 18.3 MiB (0%)
Language                                 : French
Default                                  : No
Forced                                   : No

Text #4
ID                                       : 7
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 29.5 kb/s
Frame rate                               : 0.382 FPS
Count of elements                        : 2200
Stream size                              : 20.2 MiB (0%)
Language                                 : Indonesian
Default                                  : No
Forced                                   : No

Text #5
ID                                       : 8
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 35 min
Bit rate                                 : 21.6 kb/s
Frame rate                               : 0.391 FPS
Count of elements                        : 2250
Stream size                              : 14.9 MiB (0%)
Language                                 : Korean
Default                                  : No
Forced                                   : No

Text #6
ID                                       : 9
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 30.5 kb/s
Frame rate                               : 0.383 FPS
Count of elements                        : 2208
Stream size                              : 21.0 MiB (0%)
Language                                 : Malay
Default                                  : No
Forced                                   : No

Text #7
ID                                       : 10
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 27.5 kb/s
Frame rate                               : 0.374 FPS
Count of elements                        : 2154
Stream size                              : 18.9 MiB (0%)
Language                                 : Portuguese
Default                                  : No
Forced                                   : No

Text #8
ID                                       : 11
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 26.4 kb/s
Frame rate                               : 0.377 FPS
Count of elements                        : 2174
Stream size                              : 18.1 MiB (0%)
Language                                 : Spanish
Default                                  : No
Forced                                   : No

Text #9
ID                                       : 12
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 27.3 kb/s
Frame rate                               : 0.390 FPS
Count of elements                        : 2250
Stream size                              : 18.7 MiB (0%)
Language                                 : Thai
Default                                  : No
Forced                                   : No

Menu
00:00:00.000                             : :Chapter 01
00:05:24.741                             : :Chapter 02
00:09:33.239                             : :Chapter 03
00:12:20.406                             : :Chapter 04
00:18:23.435                             : :Chapter 05
00:23:00.837                             : :Chapter 06
00:30:17.816                             : :Chapter 07
00:35:03.392                             : :Chapter 08
00:39:26.781                             : :Chapter 09
00:45:34.940                             : :Chapter 10
00:50:40.037                             : :Chapter 11
00:55:29.701                             : :Chapter 12
01:01:00.657                             : :Chapter 13
01:06:57.638                             : :Chapter 14
01:14:36.680                             : :Chapter 15
01:21:58.038                             : :Chapter 16



[Luke 42078]

4 minutes ago, Utini said:

I just tried playing a file with TrueHD and got the error "No compatible streams are currently available".

Log attached.

Mediainfo:



General
Unique ID                                : 287226258812269188628064696855041281690 (0xD815C3E87A6F4A66CC37363312A20E9A)
Complete name                            : /mnt/Files/Torrent/Venom.Let There Be Carnage.2021.2160p.UHD.BluRay.Atmos.x265-HQMUX.mkv
Format                                   : Matroska
Format version                           : Version 4
File size                                : 18.2 GiB
Duration                                 : 1 h 37 min
Overall bit rate mode                    : Variable
Overall bit rate                         : 26.7 Mb/s
Movie name                               : Venom: Let There Be Carnage.2021.UHD-HQMUX
Encoded date                             : UTC 2021-12-11 12:02:58
Writing application                      : mkvmerge v63.0.0 ('Everything') 64-bit
Writing library                          : libebml v1.4.2 + libmatroska v1.6.4

Video
ID                                       : 1
Format                                   : HEVC
Format/Info                              : High Efficiency Video Coding
Format profile                           : Main 10@L5.1@High
HDR format                               : SMPTE ST 2086, HDR10 compatible
Codec ID                                 : V_MPEGH/ISO/HEVC
Duration                                 : 1 h 37 min
Bit rate                                 : 21.5 Mb/s
Width                                    : 3 840 pixels
Height                                   : 2 076 pixels
Display aspect ratio                     : 1.85:1
Frame rate mode                          : Variable
Frame rate                               : 23.976 (24000/1001) FPS
Color space                              : YUV
Chroma subsampling                       : 4:2:0 (Type 2)
Bit depth                                : 10 bits
Bits/(Pixel*Frame)                       : 0.112
Stream size                              : 14.6 GiB (80%)
Writing library                          : x265 3.5+12+14-106329cbd:[Windows][GCC 10.3.0][64 bit] 10bit
Encoding settings                        : cpuid=1111039 / frame-threads=6 / numa-pools=48 / wpp / no-pmode / no-pme / no-psnr / no-ssim / log-level=2 / input-csp=1 / input-res=3840x2076 / interlace=0 / total-frames=139968 / level-idc=51 / high-tier=1 / uhd-bd=0 / ref=4 / no-allow-non-conformance / repeat-headers / annexb / aud / no-eob / no-eos / hrd / info / hash=0 / no-temporal-layers / no-open-gop / min-keyint=23 / keyint=250 / gop-lookahead=0 / bframes=10 / b-adapt=2 / b-pyramid / bframe-bias=0 / rc-lookahead=40 / lookahead-slices=4 / scenecut=40 / no-hist-scenecut / radl=0 / no-splice / no-intra-refresh / ctu=64 / min-cu-size=8 / no-rect / no-amp / max-tu-size=32 / tu-inter-depth=4 / tu-intra-depth=4 / limit-tu=4 / rdoq-level=2 / dynamic-rd=0.00 / no-ssim-rd / signhide / no-tskip / nr-intra=0 / nr-inter=0 / no-constrained-intra / no-strong-intra-smoothing / max-merge=3 / limit-refs=3 / limit-modes / me=3 / subme=7 / merange=57 / temporal-mvp / no-frame-dup / no-hme / weightp / no-weightb / no-analyze-src-pics / deblock=-3:-3 / no-sao / no-sao-non-deblock / rd=4 / selective-sao=0 / no-early-skip / rskip / no-fast-intra / no-tskip-fast / no-cu-lossless / no-b-intra / no-splitrd-skip / rdpenalty=0 / psy-rd=2.00 / psy-rdoq=1.90 / no-rd-refine / no-lossless / cbqpoffs=-2 / crqpoffs=-2 / rc=crf / crf=14.0 / qcomp=0.65 / qpstep=4 / stats-write=0 / stats-read=0 / vbv-maxrate=160000 / vbv-bufsize=160000 / vbv-init=0.9 / min-vbv-fullness=50.0 / max-vbv-fullness=80.0 / crf-max=0.0 / crf-min=0.0 / ipratio=1.40 / pbratio=1.30 / aq-mode=1 / aq-strength=0.90 / cutree / zone-count=0 / no-strict-cbr / qg-size=32 / no-rc-grain / qpmax=69 / qpmin=0 / no-const-vbv / sar=0 / overscan=0 / videoformat=5 / range=0 / colorprim=9 / transfer=16 / colormatrix=9 / chromaloc=1 / chromaloc-top=2 / chromaloc-bottom=2 / display-window=0 / master-display=G(8500,39850)B(6550,2300)R(35400,14600)WP(15635,16450)L(10000000,1) / cll=7659,522 / min-luma=1 / max-luma=1000 / log2-max-poc-lsb=8 / vui-timing-info / vui-hrd-info / slices=1 / no-opt-qp-pps / no-opt-ref-list-length-pps / no-multi-pass-opt-rps / scenecut-bias=0.05 / hist-threshold=0.03 / no-opt-cu-delta-qp / no-aq-motion / hdr10 / hdr10-opt / no-dhdr10-opt / no-idr-recovery-sei / analysis-reuse-level=0 / analysis-save-reuse-level=0 / analysis-load-reuse-level=0 / scale-factor=0 / refine-intra=0 / refine-inter=0 / refine-mv=1 / refine-ctu-distortion=0 / no-limit-sao / ctu-info=0 / no-lowpass-dct / refine-analysis-type=0 / copy-pic=1 / max-ausize-factor=1.0 / no-dynamic-refine / no-single-sei / no-hevc-aq / no-svt / no-field / qp-adaptation-range=1.00 / scenecut-aware-qp=0 / conformance-window-right-offset=0 / conformance-window-bottom-offset=0 / decoder-max-rate=0 / no-vbv-live-multi-pass
Language                                 : English
Default                                  : Yes
Forced                                   : No
Color range                              : Limited
Color primaries                          : BT.2020
Transfer characteristics                 : PQ
Matrix coefficients                      : BT.2020 non-constant
Mastering display color primaries        : BT.2020
Mastering display luminance              : min: 0.0001 cd/m2, max: 1000 cd/m2
Maximum Content Light Level              : 7659 cd/m2
Maximum Frame-Average Light Level        : 522 cd/m2

Audio #1
ID                                       : 2
Format                                   : MLP FBA 16-ch
Format/Info                              : Meridian Lossless Packing FBA with 16-channel presentation
Commercial name                          : Dolby TrueHD with Dolby Atmos
Codec ID                                 : A_TRUEHD
Duration                                 : 1 h 37 min
Bit rate mode                            : Variable
Bit rate                                 : 4 291 kb/s
Maximum bit rate                         : 7 512 kb/s
Channel(s)                               : 8 channels
Channel layout                           : L R C LFE Ls Rs Lb Rb
Sampling rate                            : 48.0 kHz
Frame rate                               : 1 200.000 FPS (40 SPF)
Compression mode                         : Lossless
Stream size                              : 2.92 GiB (16%)
Language                                 : English
Default                                  : Yes
Forced                                   : No
Number of dynamic objects                : 11
Bed channel count                        : 1 channel
Bed channel configuration                : LFE

Audio #2
ID                                       : 3
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Commercial name                          : Dolby Digital
Codec ID                                 : A_AC3
Duration                                 : 1 h 37 min
Bit rate mode                            : Constant
Bit rate                                 : 640 kb/s
Channel(s)                               : 6 channels
Channel layout                           : L R C LFE Ls Rs
Sampling rate                            : 48.0 kHz
Frame rate                               : 31.250 FPS (1536 SPF)
Compression mode                         : Lossy
Stream size                              : 445 MiB (2%)
Language                                 : English
Service kind                             : Complete Main
Default                                  : No
Forced                                   : No

Text #1
ID                                       : 4
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 27 min
Bit rate                                 : 31.9 kb/s
Frame rate                               : 0.430 FPS
Count of elements                        : 2252
Stream size                              : 19.9 MiB (0%)
Language                                 : English
Default                                  : No
Forced                                   : No

Text #2
ID                                       : 5
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 43.5 kb/s
Frame rate                               : 0.562 FPS
Count of elements                        : 3258
Stream size                              : 30.1 MiB (0%)
Title                                    : English (SDH)
Language                                 : English
Default                                  : No
Forced                                   : No

Text #3
ID                                       : 6
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 26.6 kb/s
Frame rate                               : 0.366 FPS
Count of elements                        : 2112
Stream size                              : 18.3 MiB (0%)
Language                                 : French
Default                                  : No
Forced                                   : No

Text #4
ID                                       : 7
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 29.5 kb/s
Frame rate                               : 0.382 FPS
Count of elements                        : 2200
Stream size                              : 20.2 MiB (0%)
Language                                 : Indonesian
Default                                  : No
Forced                                   : No

Text #5
ID                                       : 8
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 35 min
Bit rate                                 : 21.6 kb/s
Frame rate                               : 0.391 FPS
Count of elements                        : 2250
Stream size                              : 14.9 MiB (0%)
Language                                 : Korean
Default                                  : No
Forced                                   : No

Text #6
ID                                       : 9
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 30.5 kb/s
Frame rate                               : 0.383 FPS
Count of elements                        : 2208
Stream size                              : 21.0 MiB (0%)
Language                                 : Malay
Default                                  : No
Forced                                   : No

Text #7
ID                                       : 10
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 27.5 kb/s
Frame rate                               : 0.374 FPS
Count of elements                        : 2154
Stream size                              : 18.9 MiB (0%)
Language                                 : Portuguese
Default                                  : No
Forced                                   : No

Text #8
ID                                       : 11
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 26.4 kb/s
Frame rate                               : 0.377 FPS
Count of elements                        : 2174
Stream size                              : 18.1 MiB (0%)
Language                                 : Spanish
Default                                  : No
Forced                                   : No

Text #9
ID                                       : 12
Format                                   : PGS
Codec ID                                 : S_HDMV/PGS
Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
Duration                                 : 1 h 36 min
Bit rate                                 : 27.3 kb/s
Frame rate                               : 0.390 FPS
Count of elements                        : 2250
Stream size                              : 18.7 MiB (0%)
Language                                 : Thai
Default                                  : No
Forced                                   : No

Menu
00:00:00.000                             : :Chapter 01
00:05:24.741                             : :Chapter 02
00:09:33.239                             : :Chapter 03
00:12:20.406                             : :Chapter 04
00:18:23.435                             : :Chapter 05
00:23:00.837                             : :Chapter 06
00:30:17.816                             : :Chapter 07
00:35:03.392                             : :Chapter 08
00:39:26.781                             : :Chapter 09
00:45:34.940                             : :Chapter 10
00:50:40.037                             : :Chapter 11
00:55:29.701                             : :Chapter 12
01:01:00.657                             : :Chapter 13
01:06:57.638                             : :Chapter 14
01:14:36.680                             : :Chapter 15
01:21:58.038                             : :Chapter 16



HI, please attach the emby server and ffmpeg log files (if there was one) from when you tried to do this. Thanks.

[Utini 14]

1 minute ago, Luke said:

HI, please attach the emby server and ffmpeg log files (if there was one) from when you tried to do this. Thanks.

Oh sorry - forgot to press the attach button.

Server log is attached. I can't see a ffmped log?

emby_truehd.txt

[Luke 42078]

Resolved via the same solution as this topic, right?



[Utini 14]

On 8/3/2022 at 6:16 PM, Luke said:

Resolved via the same solution as this topic, right?



Yep, all good now! thanks
