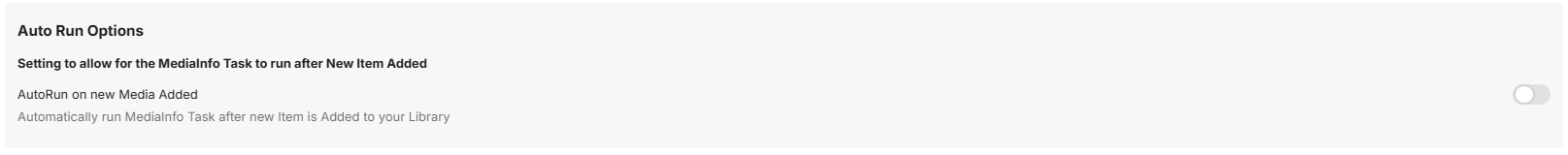

rbjtech 5284 Posted May 17, 2025 Posted May 17, 2025 19 minutes ago, sh0rty said: Is this true? All my 1080p files with DV/HDR are tagged correctly. I'm using MediaInfo 24.05 and mkvtoolnix 70.0.0. Video display settings are all enabled. @NormanosYeah experience the same since the Media Toolbox task is triggered by the library scan, when enabled, butit seems there is no trigger from Toolbox back to Library Scan so it can rescan the file changes. I circumvented this by setting up a scheduled task for a library scan every hour. Agreed - there is something where we excluded 1080p I just can't remember what for lol. I just checked the code and indeed it should cater for any resolution - incl 720p. Anything below this is just tagged as SD. It just 'builds' each media item into the new title - so yes even SD HDR is technically possible haha. 1
rbjtech 5284 Posted May 17, 2025 Posted May 17, 2025 25 minutes ago, sh0rty said: @NormanosYeah experience the same since the Media Toolbox task is triggered by the library scan, when enabled, butit seems there is no trigger from Toolbox back to Library Scan so it can rescan the file changes. I circumvented this by setting up a scheduled task for a library scan every hour. ah right - with you. I don't have that set - because as you say, it will run it on adding a new item BUT if you add more than one, it won't run it again. As part of an import script - after adding all the items - I then kick off the schedule (mediainfo) to process them all at once. Running as a normal schedule works as well, but you obviously won't get the results until the schedule has next run. Some improvment needed on the wording here or functionally how it works - agreed .. I'll add to the list. 1
sh0rty 717 Posted June 8, 2025 Posted June 8, 2025 @rbjtechOut of curiosity, after which criteria the plugin determines to tag a file with "Remux"? It seems just because of the bitrate or file size? I recognize to have a lot of especially 4K false positives where the x265 encoded files are still at very high bitrate and the plugin tags them as Remux, even the filename indicates x265 instead of HEVC Remux.
rbjtech 5284 Posted June 9, 2025 Posted June 9, 2025 On 08/06/2025 at 08:51, sh0rty said: @rbjtechOut of curiosity, after which criteria the plugin determines to tag a file with "Remux"? It seems just because of the bitrate or file size? I recognize to have a lot of especially 4K false positives where the x265 encoded files are still at very high bitrate and the plugin tags them as Remux, even the filename indicates x265 instead of HEVC Remux. It's done on bitrate :- 4K > 37Mbit+ or 1080p > 22Mbit+ or 'Remux' (case insensative) in the original filename if (config.ShowRemux) { switch (typeInfo.Width) { case "3840" when Convert.ToInt32(bitrate) >= 37000000: case "1920" when Convert.ToInt32(bitrate) >= 22000000: Log.Debug("Calculated bitrate as Remux.."); sb.Append(" Remux"); break; default: // RBJ Added var itemFilename = mediaSource.Path; var stringToFind = "Remux"; bool b = itemFilename.Contains(stringToFind); if (b) { Log.Debug("Found Remux in Filename.."); sb.Append(" Remux"); } break; } } 1
sh0rty 717 Posted June 9, 2025 Posted June 9, 2025 (edited) 6 hours ago, rbjtech said: It's done on bitrate :- 4K > 37Mbit+ or 1080p > 22Mbit+ or 'Remux' (case insensative) in the original filename I have multiple files tagged as Remux with a bitrate far more than 37 Mbit or 22Mbit but encoded with x265, e.g. UHD DV8 HDR10 Remux [37,3Mb/s] UHD HDR10 Remux [37,9Mb/s] UHD DV8 HDR10 Remux [40,6Mb/s] UHD DV8 HDR10 Remux [55,7Mb/s] HD 1080p HEVC Remux [25Mb/s] HD 1080p AVC Remux [22,9Mb/s] Wouldn't it be better to solely rely on proper File Tagging with the Remux Tag, since especially 4K files can have an enormous bitrate, even when reencoded with x265? Edited June 9, 2025 by sh0rty
rbjtech 5284 Posted June 9, 2025 Posted June 9, 2025 51 minutes ago, sh0rty said: I have multiple files tagged as Remux with a bitrate far more than 37 Mbit or 22Mbit but encoded with x265, e.g. UHD DV8 HDR10 Remux [37,3Mb/s] UHD HDR10 Remux [37,9Mb/s] UHD DV8 HDR10 Remux [40,6Mb/s] UHD DV8 HDR10 Remux [55,7Mb/s] HD 1080p HEVC Remux [25Mb/s] HD 1080p AVC Remux [22,9Mb/s] Wouldn't it be better to solely rely on proper File Tagging with the Remux Tag, since especially 4K files can have an enormous bitrate, even when reencoded with x265? Ah I see your scenerio - you are re-encoding a 70-100Mbit h265 to ~40Mbit (x265) and it's then seeing that as a Remux, which it of course is not. Unless I put it yet another option to only look at the filename, then the plugin will work for 99% of users - very few are going to re-encode a 4K Remux to 37+ Mbit for normal usage - they will use 20-25Mbit (zero percevable image quality difference) OR use the original Remux imho. 1
sh0rty 717 Posted June 9, 2025 Posted June 9, 2025 2 hours ago, rbjtech said: Ah I see your scenerio - you are re-encoding a 70-100Mbit h265 to ~40Mbit (x265) and it's then seeing that as a Remux, which it of course is not. Unless I put it yet another option to only look at the filename, then the plugin will work for 99% of users - very few are going to re-encode a 4K Remux to 37+ Mbit for normal usage - they will use 20-25Mbit (zero percevable image quality difference) OR use the original Remux imho. An option would be awesome, lot of my files are Fanedits, no Remux but with high bitrates.
hjason7812 34 Posted June 13, 2025 Posted June 13, 2025 On 6/8/2025 at 3:51 AM, sh0rty said: @rbjtechOut of curiosity, after which criteria the plugin determines to tag a file with "Remux"? It seems just because of the bitrate or file size? I recognize to have a lot of especially 4K false positives where the x265 encoded files are still at very high bitrate and the plugin tags them as Remux, even the filename indicates x265 instead of HEVC Remux. x265/h265 is HEVC, it goes by many names for some reason 2
KRULL 10 Posted June 13, 2025 Posted June 13, 2025 13 minutes ago, hjason7812 said: x265/h265 is HEVC, it goes by many names for some reason H.265 is the standard, also known as HEVC (High Efficiency Video Coding) x265 is the open source software to encode to H.265. 1 1
rbjtech 5284 Posted June 13, 2025 Posted June 13, 2025 16 minutes ago, KRULL said: H.265 is the standard, also known as HEVC (High Efficiency Video Coding) x265 is the open source software to encode to H.265. Exactly ..
sh0rty 717 Posted June 15, 2025 Posted June 15, 2025 (edited) On 6/13/2025 at 2:49 PM, hjason7812 said: x265/h265 is HEVC, it goes by many names for some reason Additionally "HEVC Remux" is typically the naming convention for an untouched Rip of the BD video stream, while "x265" is the naming convention for a lower bitrate encode of that HEVC stream to save space using the x265 encoder. Edited June 15, 2025 by sh0rty
sh0rty 717 Posted August 1, 2025 Posted August 1, 2025 (edited) @rbjtechReading the thread, this specific issue seems to be an old one, but DTS-HD HRA 7.1 seems to be not recognized by the Plugin (at least on my side) and therefor no title is written to the audio track (using mkvpropedit 70.0 and MediaInfo 24.05). My separate MediaInfo Tool says "DTS XBR XXCH". Anzahl : 285 Anzahl der Streams dieser Art : 1 Art des Streams : Audio Art des Streams : Audio ID des Stream-Identifiers : 0 StreamOrder : 1 ID : 2 ID : 2 Unique ID : 12787298782536452890 Format : DTS Format : DTS XBR XXCH Format/Info : Digital Theater Systems Format/URL : https://en.wikipedia.org/wiki/DTS_(sound_system) Commercial name : DTS-HD High Resolution Audio Commercial name : DTS-HD High Resolution Audio Mode : 16 Format-Einstellungen für Endianess : Big Format_AdditionalFeatures : XBR XXCH Codec-ID : A_DTS Dauer : 6826239.000000 Dauer : 1 h 53 min Dauer : 1 h 53 min 46s 239 ms Dauer : 1 h 53 min Dauer : 01:53:46.239 Dauer : 01:53:46.239 Bitraten-Modus : CBR Bitraten-Modus : konstant Bitrate : 3018000 Bitrate : 3 018 kb/s Kanäle : 8 Kanäle : 8 Kanäle Kanal-Positionen : Front: L C R, Side: L R, Back: L R, LFE Kanal-Positionen : 3/2/2.1 Channel layout : C L R LFE Lb Rb Lss Rss Samples per frame : 512 Samplingrate : 48000 Samplingrate : 48,0 kHz Samples count : 327659472 Bildwiederholungsrate : 93.750 Bildwiederholungsrate : 93,750 FPS (512 SPF) Anzahl der Frames : 639960 Bit depth : 24 Bit depth : 24 bits Compression mode : Lossy Compression mode : Lossy Edited August 1, 2025 by sh0rty
rbjtech 5284 Posted August 4, 2025 Posted August 4, 2025 On 01/08/2025 at 16:26, sh0rty said: @rbjtechReading the thread, this specific issue seems to be an old one, but DTS-HD HRA 7.1 seems to be not recognized by the Plugin (at least on my side) and therefor no title is written to the audio track (using mkvpropedit 70.0 and MediaInfo 24.05). My separate MediaInfo Tool says "DTS XBR XXCH". Anzahl : 285 Anzahl der Streams dieser Art : 1 Art des Streams : Audio Art des Streams : Audio ID des Stream-Identifiers : 0 StreamOrder : 1 ID : 2 ID : 2 Unique ID : 12787298782536452890 Format : DTS Format : DTS XBR XXCH Format/Info : Digital Theater Systems Format/URL : https://en.wikipedia.org/wiki/DTS_(sound_system) Commercial name : DTS-HD High Resolution Audio Commercial name : DTS-HD High Resolution Audio Mode : 16 Format-Einstellungen für Endianess : Big Format_AdditionalFeatures : XBR XXCH Codec-ID : A_DTS Dauer : 6826239.000000 Dauer : 1 h 53 min Dauer : 1 h 53 min 46s 239 ms Dauer : 1 h 53 min Dauer : 01:53:46.239 Dauer : 01:53:46.239 Bitraten-Modus : CBR Bitraten-Modus : konstant Bitrate : 3018000 Bitrate : 3 018 kb/s Kanäle : 8 Kanäle : 8 Kanäle Kanal-Positionen : Front: L C R, Side: L R, Back: L R, LFE Kanal-Positionen : 3/2/2.1 Channel layout : C L R LFE Lb Rb Lss Rss Samples per frame : 512 Samplingrate : 48000 Samplingrate : 48,0 kHz Samples count : 327659472 Bildwiederholungsrate : 93.750 Bildwiederholungsrate : 93,750 FPS (512 SPF) Anzahl der Frames : 639960 Bit depth : 24 Bit depth : 24 bits Compression mode : Lossy Compression mode : Lossy I don't believe I ever catered for that format of HRA (7.1) - but I can easily add when I next update. Thanks ! 1

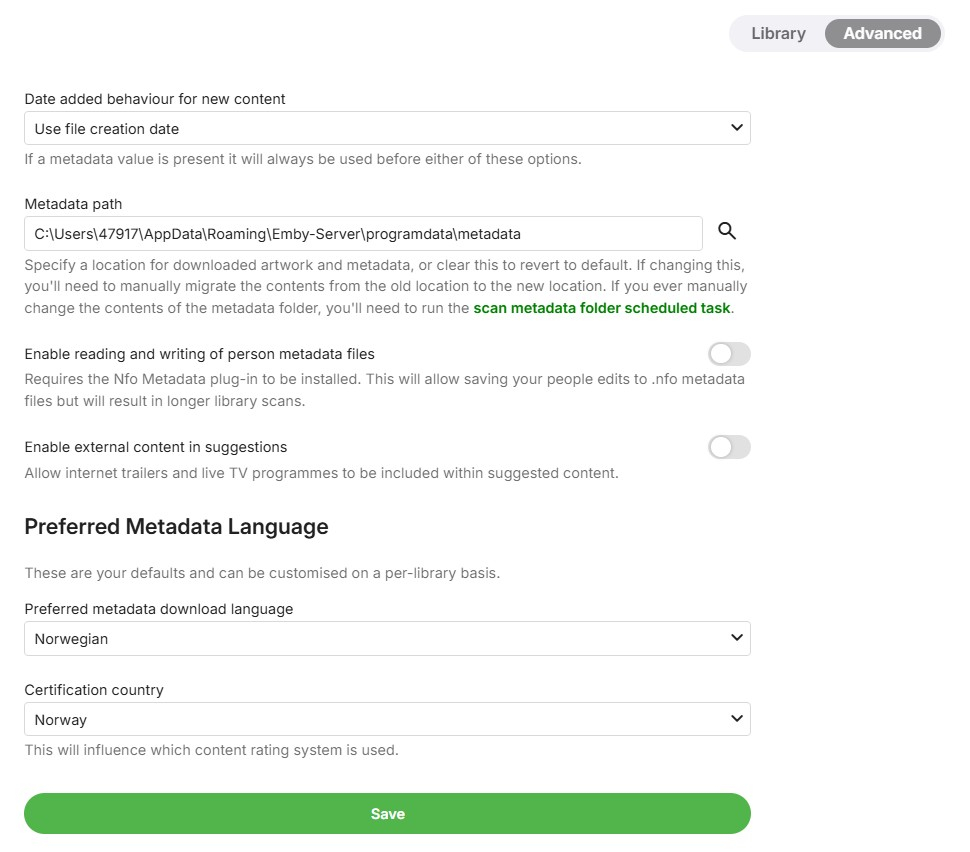

PeteGul 37 Posted September 7, 2025 Posted September 7, 2025 I want to make emby show my audio cedecs etc, like this addon doing. But I have not tried it yet, this bacause I can't find the setting for "Embedded track title display". This is gone in the Beta server.. Is there an way?
lorac 118 Posted September 7, 2025 Posted September 7, 2025 I wouldn't concern yourself with that. Install the plugin and give it a go. Then open your embyserver log in notepad ++ and you should see entries related to mediainfo. 1
rbjtech 5284 Posted September 8, 2025 Posted September 8, 2025 23 hours ago, PeteGul said: I want to make emby show my audio cedecs etc, like this addon doing. But I have not tried it yet, this bacause I can't find the setting for "Embedded track title display". This is gone in the Beta server.. Is there an way? Ah - you are correct - that option is no longer there. I *think* the track title is now used by default on most Emby clients, so it no longer really matters as the MKV track 'title' will now be shown anyway. Worst case, you can actually turn it on via a config file, system.xml in programdata\config <EnableOriginalTrackTitles>true</EnableOriginalTrackTitles>
cwills75 14 Posted October 16, 2025 Posted October 16, 2025 I'm trying to install this on Unraid docker. Everything seems to be going ok until I get to this line: apt install mkvtoolnix=70.0.0-0~ubuntu2204bunkus01 mkvtoolnix-gui=70.0.0-0~ubuntu2204bunkus01 That gives me this error: root@Unraid:/etc/apt/sources.list.d# apt install mkvtoolnix=70.0.0-0~ubuntu2204bunkus01 mkvtoolnix-gui=70.0.0-0~ubuntu2204bunkus01 Reading package lists... Done Building dependency tree... Done Reading state information... Done Some packages could not be installed. This may mean that you have requested an impossible situation or if you are using the unstable distribution that some required packages have not yet been created or been moved out of Incoming. The following information may help to resolve the situation: The following packages have unmet dependencies: mkvtoolnix : Depends: libflac8 (>= 1.3.0) but it is not installable Depends: libfmt8 (>= 8.1.1+ds1) but it is not installable mkvtoolnix-gui : Depends: libflac8 (>= 1.3.0) but it is not installable Depends: libfmt8 (>= 8.1.1+ds1) but it is not installable E: Unable to correct problems, you have held broken packages. root@Unraid:/etc/apt/sources.list.d# Any ideas on how to fix?
rbjtech 5284 Posted October 16, 2025 Posted October 16, 2025 (edited) 1 hour ago, cwills75 said: I'm trying to install this on Unraid docker. Everything seems to be going ok until I get to this line: apt install mkvtoolnix=70.0.0-0~ubuntu2204bunkus01 mkvtoolnix-gui=70.0.0-0~ubuntu2204bunkus01 That gives me this error: root@Unraid:/etc/apt/sources.list.d# apt install mkvtoolnix=70.0.0-0~ubuntu2204bunkus01 mkvtoolnix-gui=70.0.0-0~ubuntu2204bunkus01 Reading package lists... Done Building dependency tree... Done Reading state information... Done Some packages could not be installed. This may mean that you have requested an impossible situation or if you are using the unstable distribution that some required packages have not yet been created or been moved out of Incoming. The following information may help to resolve the situation: The following packages have unmet dependencies: mkvtoolnix : Depends: libflac8 (>= 1.3.0) but it is not installable Depends: libfmt8 (>= 8.1.1+ds1) but it is not installable mkvtoolnix-gui : Depends: libflac8 (>= 1.3.0) but it is not installable Depends: libfmt8 (>= 8.1.1+ds1) but it is not installable E: Unable to correct problems, you have held broken packages. root@Unraid:/etc/apt/sources.list.d# Any ideas on how to fix? Hi - I presume you are following the Docker instructions from the wiki ? Various OS Installation Help · Cheesegeezer/MediaInfoWiki Wiki I don't run unraid - so unfortunately can't provide any direct support here but hopefully others can contribute. @MrLinford? Edited October 16, 2025 by rbjtech
MrLinford 62 Posted October 17, 2025 Posted October 17, 2025 13 hours ago, cwills75 said: I'm trying to install this on Unraid docker. Everything seems to be going ok until I get to this line: apt install mkvtoolnix=70.0.0-0~ubuntu2204bunkus01 mkvtoolnix-gui=70.0.0-0~ubuntu2204bunkus01 That gives me this error: root@Unraid:/etc/apt/sources.list.d# apt install mkvtoolnix=70.0.0-0~ubuntu2204bunkus01 mkvtoolnix-gui=70.0.0-0~ubuntu2204bunkus01 Reading package lists... Done Building dependency tree... Done Reading state information... Done Some packages could not be installed. This may mean that you have requested an impossible situation or if you are using the unstable distribution that some required packages have not yet been created or been moved out of Incoming. The following information may help to resolve the situation: The following packages have unmet dependencies: mkvtoolnix : Depends: libflac8 (>= 1.3.0) but it is not installable Depends: libfmt8 (>= 8.1.1+ds1) but it is not installable mkvtoolnix-gui : Depends: libflac8 (>= 1.3.0) but it is not installable Depends: libfmt8 (>= 8.1.1+ds1) but it is not installable E: Unable to correct problems, you have held broken packages. root@Unraid:/etc/apt/sources.list.d# Any ideas on how to fix? Looks like you're running my script from in unraid and not the container. So this will fail. Follow the instructions in the link above for Docker. You need to connect to the Docker Container and run the script from within it 1
Wellps25 0 Posted October 25, 2025 Posted October 25, 2025 Guys, I managed to set it up here, but I have a little problem, I have HDs of dubbed and subtitled movies, some of the dubbed ones have Dolby Vision 8, and it recognized everything correctly, but the subtitled ones, which are the vast majority of the original audio, are not remuxes, only some are, including the DV7 remuxes it recognized correctly, but the vast majority that are DV 8.1, it is recognizing as HDR 10, 70% of my files are DV 8.1
rbjtech 5284 Posted October 26, 2025 Posted October 26, 2025 18 hours ago, Wellps25 said: Guys, I managed to set it up here, but I have a little problem, I have HDs of dubbed and subtitled movies, some of the dubbed ones have Dolby Vision 8, and it recognized everything correctly, but the subtitled ones, which are the vast majority of the original audio, are not remuxes, only some are, including the DV7 remuxes it recognized correctly, but the vast majority that are DV 8.1, it is recognizing as HDR 10, 70% of my files are DV 8.1 Can you provide the MediaInfo output for the file, as it uses those values to determine the HDR format. ie - from a JSON output from mediainfo for a DV8 file "HDR_Format":"Dolby Vision / SMPTE ST 2094 App 4", "HDR_Format_Version":"1.0 / 1", "HDR_Format_Profile":"dvhe.08 / ", "HDR_Format_Level":"06 / ", "HDR_Format_Settings":"BL+RPU / ", "HDR_Format_Compression":"None / ", "HDR_Format_Compatibility":"HDR10 / HDR10+ Profile B",
sh0rty 717 Posted November 15, 2025 Posted November 15, 2025 (edited) On 1/27/2025 at 8:38 PM, rbjtech said: It would actually make more sense to simply use the tvdbid or moviedbid as the index - and ignore the emby id. That way it's fully portable. Hey rbj, Any news about that? Moved a plethora of TB for TV Shows around because of a failing HDD and MediaInfo Tool again touched all episode files, even if the track titles were already modified in the past. This, followed by the library scan, takes a lot of time and causes a lot of unnecessary write cycles to the HDD. Very annoying when shuffleing lots of data from one place to another. Edited November 15, 2025 by sh0rty
rbjtech 5284 Posted November 15, 2025 Posted November 15, 2025 2 hours ago, sh0rty said: Hey rbj, Any news about that? Moved a plethora of TB for TV Shows around because of a failing HDD and MediaInfo Tool again touched all episode files, even if the track titles were already modified in the past. This, followed by the library scan, takes a lot of time and causes a lot of unnecessary write cycles to the HDD. Very annoying when shuffleing lots of data from one place to another. I haven't touched the Plugin in a good while - tbh, I was hoping Emby/ffmpeg would start to deliver some of this out the box ... wishful thinking I guess... 1
sh0rty 717 Posted November 15, 2025 Posted November 15, 2025 1 hour ago, rbjtech said: wishful thinking I guess... Nah, not gonna happen soon if I should guess.
Luke 42078 Posted November 16, 2025 Posted November 16, 2025 HI, DTS-X and Atmos detection will be coming when we update our ffmpeg build. This will be happening on the server beta channel in the near future, thanks. 2
