studzik5521 3 Posted January 27 Posted January 27 Hey, hardware scaling isn't working for me on my Nvidia card (GTX 1050, and it didn't work on the 750 either). I had to enable the 'Disable Scaling' option in the 'Diagnostic Options' plugin to get hardware support for the rest to work. Does anyone have an idea what could be causing this? ffmpeg-transcode-69229d6c-1895-4b12-8961-df2fcbfbb879_1.txt
Luke 40088 Posted January 28 Posted January 28 Hi there, please attach the corresponding emby server and hardware detection log files. Thanks.
studzik5521 3 Posted January 28 Author Posted January 28 All files that were generated after the restart and error. ffmpeg-transcode-9cdbc25a-9285-4309-ab86-54273dbd848a_1.txt ffmpeg-transcode-d1e11c6b-d8cb-4956-8cf3-334de777e51f_1.txt ffmpeg-transcode-fc8ad8e2-6903-4be2-8ad9-11f18115f662_1.txt hardware_detection-63873666525.txt embyserver (11).txt
visproduction 283 Posted January 28 Posted January 28 ffmpeg-transcode-fc... 3 x subrip conversions to .vtt at the same time Also line 110+ 13:08:55.493 Stream #0:4(pol): Subtitle: subrip (forced) 13:08:55.493 Metadata: 13:08:55.493 title : Polish [Forced] 13:08:55.493 BPS : 0 13:08:55.493 DURATION : 00:49:15.452000000 13:08:55.493 NUMBER_OF_FRAMES: 5 13:08:55.493 NUMBER_OF_BYTES : 101 So only 5 instances of non-Polish subtitles and this forced sub has to be converted to .vtt. So it will be scanning for only 5 lines in 49 minutes. Does this cause an issue with subrip conversion. This forced sub process looks like it will be looking for 10 minutes screen times with no subs at all inside the forced file. How does the encoder react to this and do the other two suprip conversions at the same time? Guessing this can clog the encoder pretty much. Perhaps upgrade to how multiple subrip subs are handled? Do one only and delay or cancel other subrip conversions? I would guess if you turn off these subrip conversions, or remove them and remux the media, the encoding will work. A lot of encoding software is set to ignore subtitles because such multiple conversions often cause encoding to fail. In this case, two audios in ec3 that probably need conversion and 3 subrips, all at the same time.

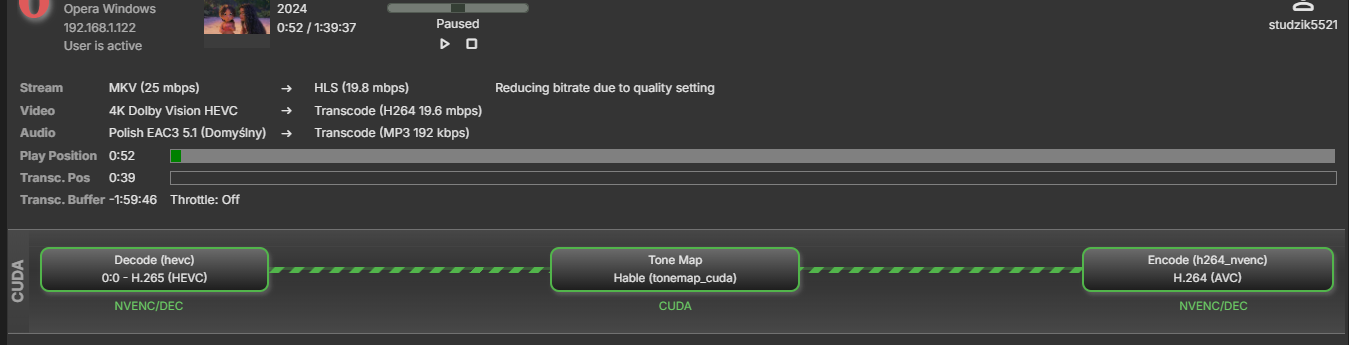

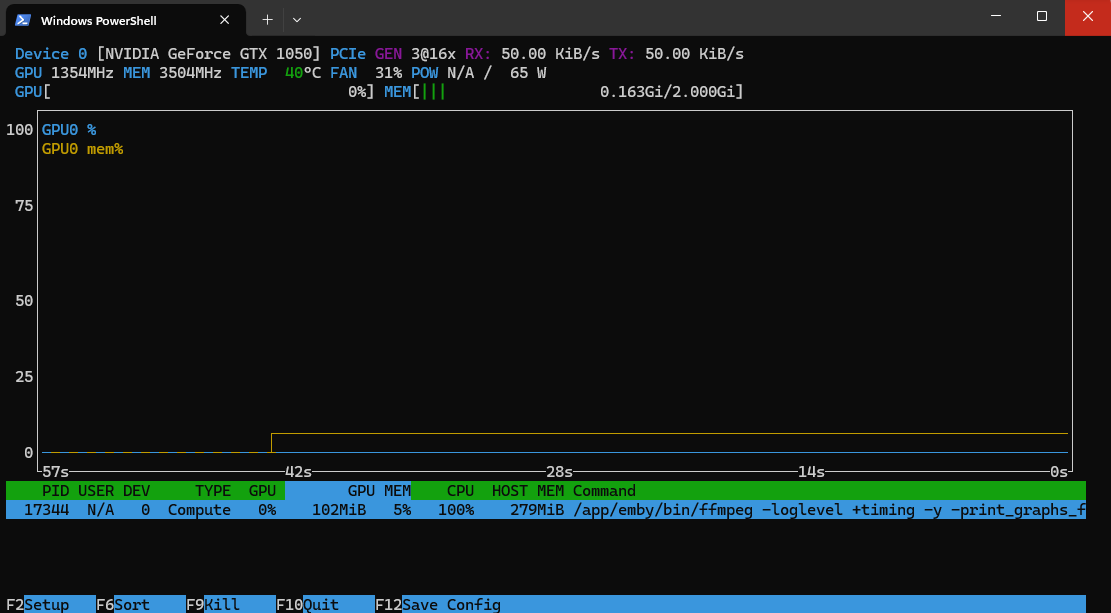

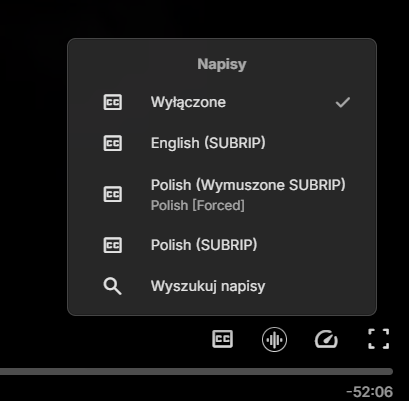

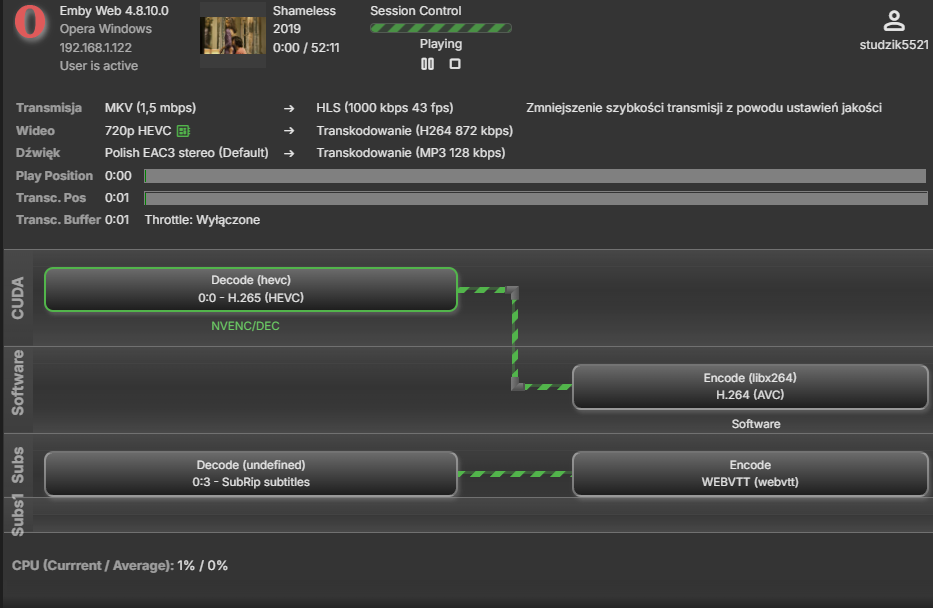

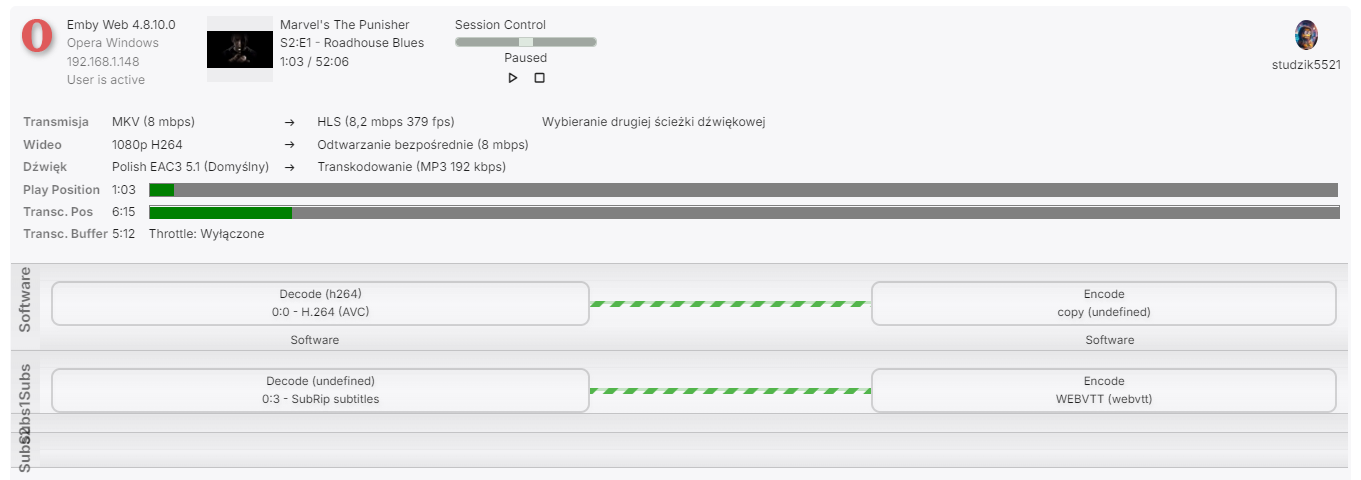

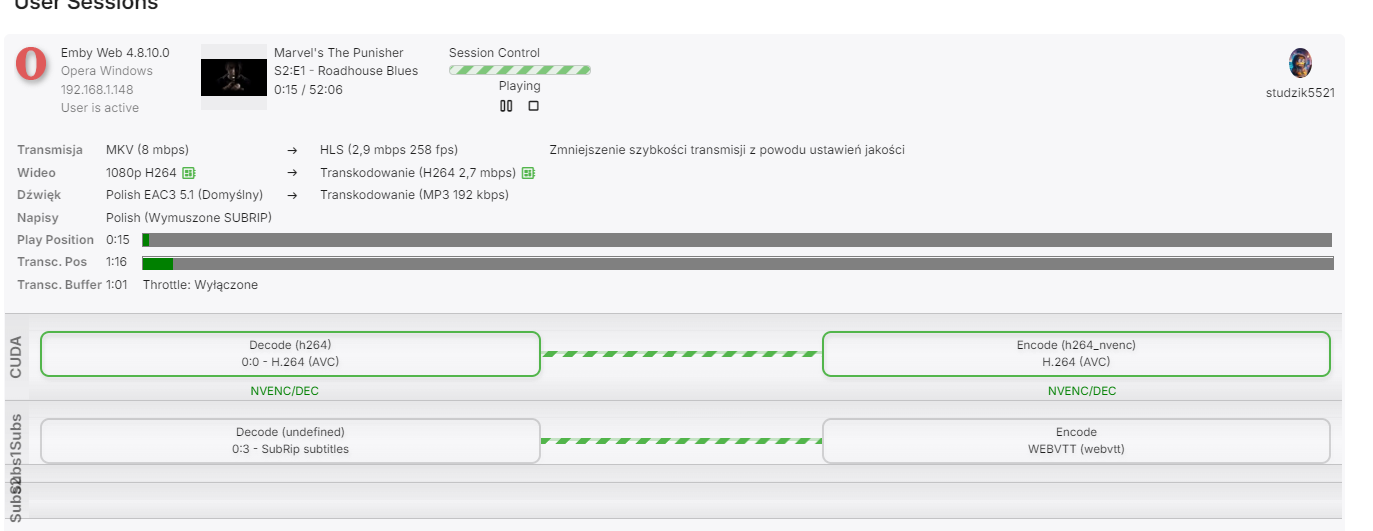

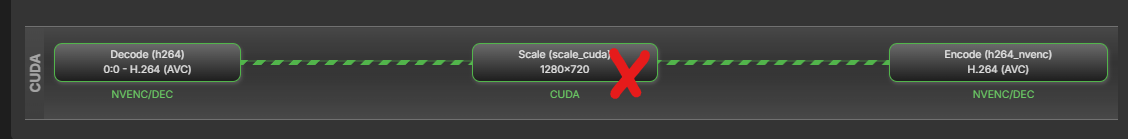

studzik5521 3 Posted January 28 Author Posted January 28 This works when I turn off scaling, even with forced subtitles (ss below) Also works in direct stream. Does not work when scaling from e.g. 1080p to 720p (with scaling enabled) When I try to run a movie, the GPU usage does not increase and the CPU usage is 100% (Subtitles disabled) What could be the cause? Or what to do to diagnose it better?
studzik5521 3 Posted January 31 Author Posted January 31 This occurs in every movie/episode where image scaling occurs. Can anyone help or advise?
visproduction 283 Posted January 31 Posted January 31 Also noticed in Embyserver(111).txt that Subtitles are being scaled to 640 x 360 because they are graphics based Subrip. Since you have three of these subtitles and the main video that also needs scaling at the same time, I would guess you are running into a very intensive workload. Pinning the CPU at 100% while doing all four scaling seems like it could be expected depending on your server setup. Subtitles disabled. OK, what is happening exactly with the software? Are these subrip graphic subtitles turned off? Is there a default subtitle metatag in the media file, that forces one subtitle to be on? Is this subtitle completely ignored when you tell the transcoding to not process? Does ffmpeg still look at the subs? If you really want to test to see if subtitles have an issue, turning them off is not really a test. You need to use a test video with no subtitles and remove the subtitles completely, from your media and try that. If you like metaphores, you may have just turned off the back lights for a trailer you are towing behind your truck, but the truck still doesn't go fast and there are noises coming from behind. Right, try disconnecting the trailer, or find a smaller load that fits in the back of the truck. 1
studzik5521 3 Posted January 31 Author Posted January 31 ok I'll try to "disconnect the trailer" or "lighten the truck" Now I understand that when I "turn off subtitles", I'm actually hiding them, not turning them off. But Iit's strange that 3xsubtitles + movie scaling works on CPU but not on GPU, but I'll check it out. I'll look for movies without subtitles and then I will upload the logs.
studzik5521 3 Posted February 1 Author Posted February 1 same problem, no subtitles hardware_detection-63873965614.txtffmpeg-transcode-e0211315-0ccf-4dff-a16e-2084fc5a9c69_1.txtffmpeg-transcode-b25f4ed6-e825-4a33-b8f0-194b7e12945f_1.txtffmpeg-transcode-07daafaf-7c11-4b48-a559-cf90451b115c_1.txtembyserver (11).txt

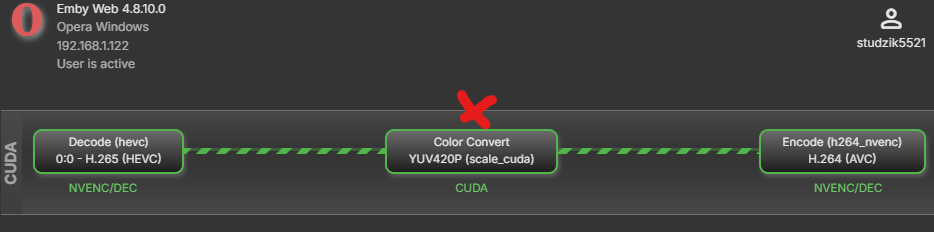

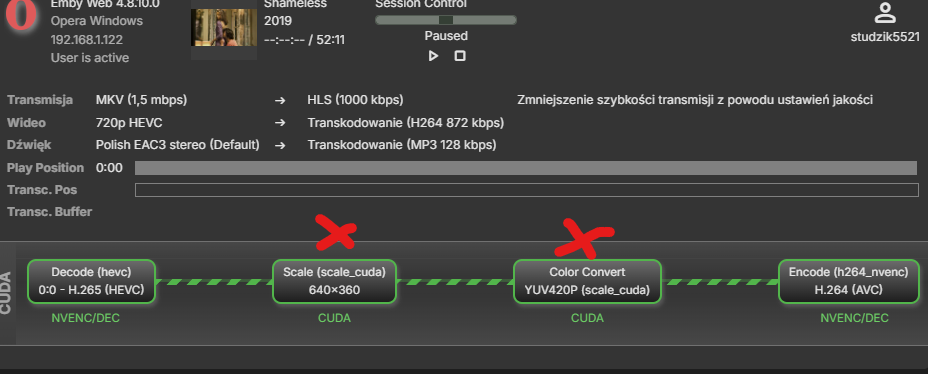

studzik5521 3 Posted February 5 Author Posted February 5 Now I have a problem with "Color Convert YUV420P (scale_cuda)" ffmpeg-transcode-4ad28fa6-3a3a-4de9-8c2c-646e4da28285_1.txtffmpeg-transcode-5c420884-c2ef-4a83-a32e-ec9e0ca61e11_1.txtembyserver (14).txthardware_detection-63874317511.txtffmpeg-transcode-ccd7e403-45c7-43fb-bacb-a25f434d5dfc_1.txt
studzik5521 3 Posted February 5 Author Posted February 5 (edited) I don't know if it changes anything, but I use Emby Docker in an LXC container on Proxmox. LXC: root@docker-portainer:~# ls -la /dev/nvi* crw-rw-rw- 1 root root 195, 0 Jan 29 01:29 /dev/nvidia0 crw-rw-rw- 1 root root 195, 255 Jan 29 01:29 /dev/nvidiactl crw-rw-rw- 1 root root 195, 254 Jan 29 01:29 /dev/nvidia-modeset crw-rw-rw- 1 root root 234, 0 Jan 29 01:31 /dev/nvidia-uvm ---------- 1 root root 0 Jan 29 01:29 /dev/nvidia-uvm-tools /dev/nvidia-caps: total 0 drwxr-xr-x 2 root root 80 Jan 29 01:31 . drwxr-xr-x 11 root root 760 Jan 29 01:31 .. cr-------- 1 root root 237, 1 Jan 29 01:31 nvidia-cap1 cr--r--r-- 1 root root 237, 2 Jan 29 01:31 nvidia-cap2 root@docker-portainer:~# nvidia-smi Wed Feb 5 15:49:19 2025 +-----------------------------------------------------------------------------------------+ | NVIDIA-SMI 550.142 Driver Version: 550.142 CUDA Version: 12.4 | |-----------------------------------------+------------------------+----------------------+ | GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |=========================================+========================+======================| | 0 NVIDIA GeForce GTX 1050 On | 00000000:02:00.0 Off | N/A | | 31% 31C P8 N/A / 65W | 2MiB / 2048MiB | 0% Default | | | | N/A | +-----------------------------------------+------------------------+----------------------+ +-----------------------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=========================================================================================| | No running processes found | +-----------------------------------------------------------------------------------------+ Proxmox: root@eddy:~# ls -la /dev/nvi* crw-rw-rw- 1 root root 195, 0 Feb 5 15:51 /dev/nvidia0 crw-rw-rw- 1 root root 195, 255 Feb 5 15:51 /dev/nvidiactl crw-rw-rw- 1 root root 234, 0 Feb 5 15:51 /dev/nvidia-uvm crw-rw-rw- 1 root root 234, 1 Feb 5 15:51 /dev/nvidia-uvm-tools /dev/nvidia-caps: total 0 drwxr-xr-x 2 root root 80 Feb 5 15:51 . drwxr-xr-x 22 root root 4580 Feb 5 15:51 .. cr-------- 1 root root 237, 1 Feb 5 15:51 nvidia-cap1 cr--r--r-- 1 root root 237, 2 Feb 5 15:51 nvidia-cap2 root@eddy:~# nvidia-smi Wed Feb 5 15:52:55 2025 +-----------------------------------------------------------------------------------------+ | NVIDIA-SMI 550.142 Driver Version: 550.142 CUDA Version: 12.4 | |-----------------------------------------+------------------------+----------------------+ | GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |=========================================+========================+======================| | 0 NVIDIA GeForce GTX 1050 Off | 00000000:02:00.0 Off | N/A | | 31% 31C P8 N/A / 65W | 2MiB / 2048MiB | 0% Default | | | | N/A | +-----------------------------------------+------------------------+----------------------+ +-----------------------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=========================================================================================| | No running processes found | +-----------------------------------------------------------------------------------------+ LXC Config: root@eddy:~# cat /var/lib/lxc/102/config lxc.cgroup.relative = 0 lxc.cgroup.dir.monitor = lxc.monitor/102 lxc.cgroup.dir.container = lxc/102 lxc.cgroup.dir.container.inner = ns lxc.arch = amd64 lxc.include = /usr/share/lxc/config/debian.common.conf lxc.apparmor.profile = generated lxc.apparmor.allow_nesting = 1 lxc.monitor.unshare = 1 lxc.tty.max = 2 lxc.environment = TERM=linux lxc.uts.name = docker-portainer lxc.cgroup2.memory.max = 25769803776 lxc.cgroup2.memory.high = 25635586048 lxc.cgroup2.memory.swap.max = 0 lxc.rootfs.path = /var/lib/lxc/102/rootfs lxc.net.0.type = veth lxc.net.0.veth.pair = veth102i0 lxc.net.0.hwaddr = BC:24:11:D3:36:62 lxc.net.0.name = eth0 lxc.net.0.mtu = 1500 lxc.net.0.script.up = /usr/share/lxc/lxcnetaddbr lxc.cgroup2.devices.allow = a lxc.cap.drop = lxc.cgroup2.devices.allow = c 188:* rwm lxc.cgroup2.devices.allow = c 189:* rwm lxc.mount.entry = /dev/serial/by-id dev/serial/by-id none bind,optional,create=dir lxc.mount.entry = /dev/ttyUSB0 dev/ttyUSB0 none bind,optional,create=file lxc.mount.entry = /dev/ttyUSB1 dev/ttyUSB1 none bind,optional,create=file lxc.mount.entry = /dev/ttyACM0 dev/ttyACM0 none bind,optional,create=file lxc.mount.entry = /dev/ttyACM1 dev/ttyACM1 none bind,optional,create=file lxc.cgroup2.devices.allow = c 195:* rwm lxc.cgroup2.devices.allow = c 234:* rwm lxc.cgroup2.devices.allow = c 237:* rwm lxc.cgroup2.devices.allow = c 255:* rwm lxc.mount.entry = /dev/nvidia0 dev/nvidia0 none bind,optional,create=file lxc.mount.entry = /dev/nvidiactl dev/nvidiactl none bind,optional,create=file lxc.mount.entry = /dev/nvidia-uvm dev/nvidia-uvm none bind,optional,create=file lxc.mount.entry = /dev/nvidia-uvm-tools dev/nvidia-uvm-tools none bind,optional,create=file lxc.mount.entry = /dev/dri dev/dri none bind,optional,create=dir lxc.cgroup.devices.allow = c 10:200 rwm lxc.mount.entry = /dev/net/tun dev/net/tun none bind,create=file lxc.cgroup2.cpuset.cpus = Edited February 5 by studzik5521

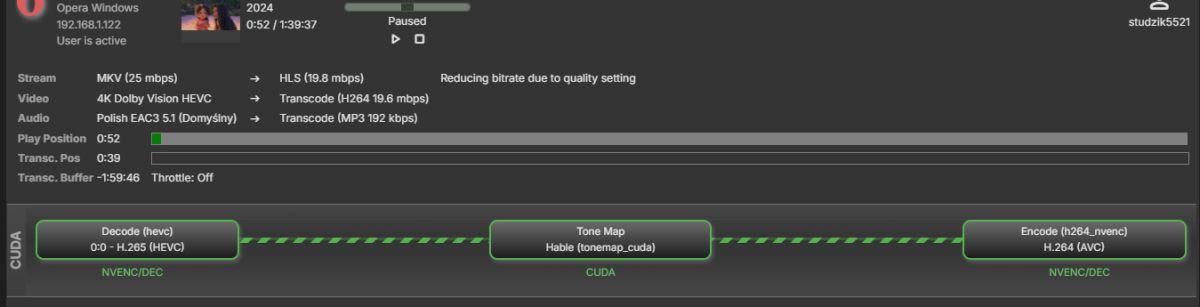

studzik5521 3 Posted February 5 Author Posted February 5 I did the tests on a freshly installed emby on LXC with a different file. Doesn't work: Works: hardware_detection-63874371642.txtffmpeg-transcode-d72f1c98-7f48-4c43-9fda-73912d594d4f_1.txtffmpeg-transcode-a93da27b-35aa-4974-9eb3-317c307a4ea2_1.txtffmpeg-transcode-48437ce0-e997-4824-a619-a441828d4c3a_1.txtffmpeg-transcode-741c95d9-62ca-48d6-bc99-42e33d9148e9_1.txtffmpeg-remux-f65cd5b8-3710-4d6c-a04b-480a0e1be966_1.txtffmpeg-transcode-e78e339a-2591-4201-8cf7-073015757de3_1.txtffmpeg-transcode-688c16ab-5f71-445c-927f-e053aa265cca_1.txtffmpeg-transcode-43c6e6bb-8e4c-49c6-ad01-4be7b7cc7522_1.txtffmpeg-transcode-3b296e8c-6982-4950-abe5-68ac5e47c8cc_1.txt

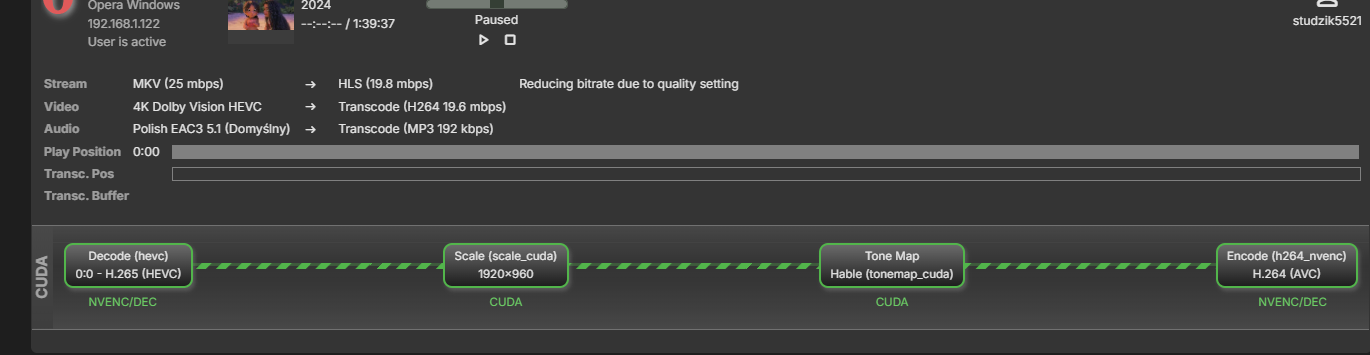

visproduction 283 Posted February 5 Posted February 5 Wow, that is a lot of info to go through. Not sure if I have enough background to really comment on such transcoding. I did notice that you run scale then Tone Map, then encode. I would guess that running Tone Map before scaling might work better. Any tone map process needs to recognize exact colors per pixel to make adjustments. If you already scaled the media, then per pixel colors will no longer be the same.
studzik5521 3 Posted February 5 Author Posted February 5 These are the default settings, I didn't change anything, the application does it that way. Tone map works. Nothing that uses "scale_cuda" works

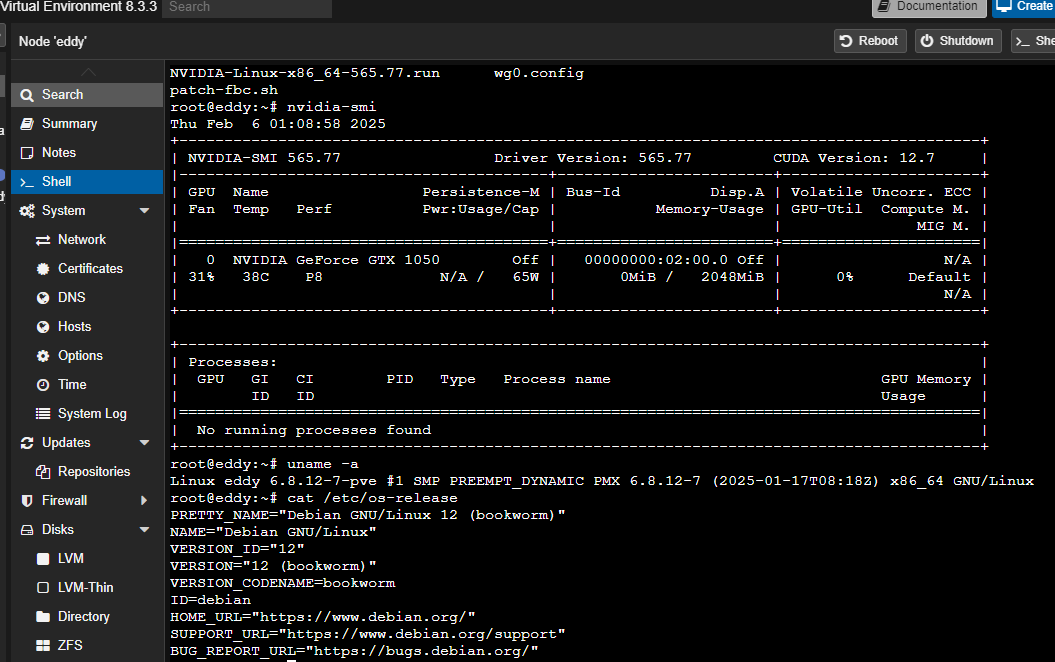

studzik5521 3 Posted February 6 Author Posted February 6 (edited) scale_cuda also does not work directly on proxmox (bare metal, debian) with a different driver version (previously 550.142 now 565.77) hardware_detection-63874400530.txtembyserver (15).txtffmpeg-transcode-f7636e5d-8d3a-4c61-9c9a-a84f3ca5343f_1.txtffmpeg-transcode-b56bc2ed-907b-42d3-ad59-4d956625eafd_1.txtffmpeg-transcode-359699c3-ae4a-4d8d-8091-c0e21804628e_1.txtffmpeg-transcode-30555faf-39a5-44d0-ae2f-33f92ad76844_1.txtffmpeg-transcode-841a1eb6-da12-4d6f-aac7-1a552b100bbe_1.txtffmpeg-transcode-79b849ef-6fea-4373-9cce-019e0af20e59_1.txtffmpeg-transcode-09a573ab-219e-4edf-b45b-b16ee3f8eaef_1.txt Edited February 6 by studzik5521
softworkz 4569 Posted February 7 Posted February 7 On 2/6/2025 at 1:10 AM, studzik5521 said: scale_cuda also does not work directly on proxmox (bare metal, debian) with a different driver version (previously 550.142 now 565.77) There's a crash when ffmpeg tries to access CUDA. How did you install the drivers?
studzik5521 3 Posted February 7 Author Posted February 7 Using the package from nvidia's website "NVIDIA-Linux-x86_64-565.77.run" or earlier "NVIDIA-Linux-x86_64-550.142.run" sudo ./NVIDIA-Linux-x86_64-565.77.run
softworkz 4569 Posted February 7 Posted February 7 Hmm, that sounds all good. Can you please install the Diagnostics Plugin and set ffmpeg logging to Debug. Then reproduce once again (a single ffmpeg log is sufficient. Thanks
studzik5521 3 Posted February 7 Author Posted February 7 Logs from Emby Docker on LXC in Proxmox with debugging:ffmpeg-transcode-d16fe2b1-9faa-41c8-843f-2d7beee672f2_1.txtffmpeg-transcode-318feb42-7480-45b1-9532-b4ccb1142a54_1.txtffmpeg-transcode-2c935575-f98d-434d-8649-5f1948cf900d_1.txtembyserver (17).txthardware_detection-63874567217.txt I only started 1 episode, with scaling right after restarting Emby Thanks for your interest
Luke 40088 Posted February 8 Posted February 8 40 minutes ago, studzik5521 said: Logs from Emby Docker on LXC in Proxmox with debugging:ffmpeg-transcode-d16fe2b1-9faa-41c8-843f-2d7beee672f2_1.txtffmpeg-transcode-318feb42-7480-45b1-9532-b4ccb1142a54_1.txtffmpeg-transcode-2c935575-f98d-434d-8649-5f1948cf900d_1.txtembyserver (17).txthardware_detection-63874567217.txt I only started 1 episode, with scaling right after restarting Emby Thanks for your interest Hi, can you please perform the same test using the native package? Thanks.
softworkz 4569 Posted February 8 Posted February 8 1 hour ago, studzik5521 said: Logs from Emby Docker on LXC in Proxmox with debugging:ffmpeg-transcode-d16fe2b1-9faa-41c8-843f-2d7beee672f2_1.txtffmpeg-transcode-318feb42-7480-45b1-9532-b4ccb1142a54_1.txtffmpeg-transcode-2c935575-f98d-434d-8649-5f1948cf900d_1.txtembyserver (17).txthardware_detection-63874567217.txt I only started 1 episode, with scaling right after restarting Emby Thanks a lot for the logs. Unfortunately this doesn't give any further hint, other than that it confirms that it happens when initializing the CUDA filter. It's not like anything I've seen before. It could be anything from hardware to OS, to drivers, to Proxmox (host). Here are some things you can try to hopefully get a hint in the right direction. I would focus on CUDA functionality: You could try a rather older version of drivers - like from 2022 or 2023 You can download the Nvidia CUDA toolkit. There are a number of demos you can compile and run And there's a tool included named "deviceQuery" which you can try to run You can watch Linux logs (like dmesg - IIRC) Trying a regular ffmpeg (with Nvidia HWA) might also be worth a try, but our HWA support for Nvidia on Linux is very stable and issue reports are rare Finally you can try to contact Nvidia support, but I would try some of the things above before, so that you can provide useful information Please let us know about your progress. Thanks
studzik5521 3 Posted February 9 Author Posted February 9 (edited) I found this in the syslogs Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: device recovery successful Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: Uncorrectable (Non-Fatal) error message received from 0000:00:01.0 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: PCIe Bus Error: severity=Uncorrectable (Non-Fatal), type=Transaction Layer, (Requester ID) Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: device [8086:6f02] error status/mask=00100000/00000000 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: [20] UnsupReq (First) Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: TLP Header: 34000000 01000010 00000000 88468846 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: device recovery successful Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: Uncorrectable (Non-Fatal) error message received from 0000:00:01.0 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: PCIe Bus Error: severity=Uncorrectable (Non-Fatal), type=Transaction Layer, (Requester ID) Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: device [8086:6f02] error status/mask=00100000/00000000 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: [20] UnsupReq (First) Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: TLP Header: 34000000 01000010 00000000 90059005 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: device recovery successful Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: Uncorrectable (Non-Fatal) error message received from 0000:00:01.0 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: PCIe Bus Error: severity=Uncorrectable (Non-Fatal), type=Transaction Layer, (Requester ID) Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: device [8086:6f02] error status/mask=00100000/00000000 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: [20] UnsupReq (First) Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: TLP Header: 34000000 01000010 00000000 88468846 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: device recovery successful Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: Uncorrectable (Non-Fatal) error message received from 0000:00:01.0 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: PCIe Bus Error: severity=Uncorrectable (Non-Fatal), type=Transaction Layer, (Requester ID) Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: device [8086:6f02] error status/mask=00100000/00000000 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: [20] UnsupReq (First) Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: TLP Header: 34000000 01000010 00000000 90059005 Feb 04 12:04:27 eddy kernel: pcieport 0000:00:01.0: AER: device recovery successful I found a solution on this page LINK, adding the option "pcie_aspm=off" to the kernel options helped. Unfortunately, this is a workaround. Although the error does not occur, CUDA still does not work. The oldest driver version I was able to install was 535.98, older versions threw an error when compiling the kernel module. Probably proxmox has too new a kernel for older drivers. All these versions had the same problem: 535.183.01, 535.98, 550.107.02, 550.142, 560.35.03 and 565.77 but then I had a problem with the message in syslog. In the next few days I will check nvidia toolkit, other ffmpeg and I will also check emby logs to see if they have changed. Edited February 9 by studzik5521 1
softworkz 4569 Posted February 9 Posted February 9 Probably the pci error is not related to the Nvidia GPU. On the Nviia site where you download the drivers, there's a link for each driver to a huge document which also has section like "Troubleshooting" and "Common Issues". It's a lot to ingest, but maybe something jumps in your eyes which could apply to your system. Like here for driver version 565.77: https://us.download.nvidia.com/XFree86/Linux-x86_64/565.77/README/index.html
studzik5521 3 Posted February 9 Author Posted February 9 I guess it's a problem with proxmox or kernel. Check it later because I don't have the energy to do it now 1
studzik5521 3 Posted February 10 Author Posted February 10 I don't know if I built the test command correctly, but it seems to work. Please check it and correct me if necessary. Thank you. root§docker-portainer:~/nvidia-patch£ ffmpeg -y -init_hw_device "cuda=cuda:0" -f lavfi -i "testsrc=size=1280x720:rate=25,format=yuv420 p" -f lavfi -i "sine=frequency=1000:sample_rate=44100" -filter_complex "¡0:v¿hwupload_cuda,scale_cuda=640:360:format=yuv420p,setsar=sa r=1¡f2_out0¿" -map "¡f2_out0¿" -map 1:a -c:v h264_nvenc -b:v 464k -g 75 -maxrate 464k -bufsize 928k -keyint_min 75 -r 25 -profile:v hi gh -c:a libmp3lame -b:a 192k -ac 2 -filter:a "volume=3" -metadata:s:a:0 language=eng -max_delay 5000000 -avoid_negative_ts disabled -f segment -segment_format mpegts -segment_list "test.m3u8" -segment_list_type m3u8 -segment_time 3 -segment_start_number 0 "test_%d .ts" ffmpeg version 5.1.6-0+deb12u1 Copyright (c) 2000-2024 the FFmpeg developers built with gcc 12 (Debian 12.2.0-14) configuration: --prefix=/usr --extra-version=0+deb12u1 --toolchain=hardened --libdir=/usr/lib/x86_64-linux-gnu --incdir=/usr/include/x86_64-linux-gnu --arch=amd64 --enable-gpl --disable-stripping --enable-gnutls --enable-ladspa --enable-libaom --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libcdio --enable-libcodec2 --enable-libdav1d --enable-libflite --enable-libfontconfig --enable-libfreetype --enable-libfribidi --enable-libglslang --enable-libgme --enable-libgsm --enable-libjack --enable-libmp3lame --enable-libmysofa --enable-libopenjpeg --enable-libopenmpt --enable-libopus --enable-libpulse --enable-librabbitmq --enable-librist --enable-librubberband --enable-libshine --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libsvtav1 --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvorbis --enable-libvpx --enable-libwebp --enable-libx265 --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-libzvbi --enable-lv2 --enable-omx --enable-openal --enable-opencl --enable-opengl --enable-sdl2 --disable-sndio --enable-libjxl --enable-pocketsphinx --enable-librsvg --enable-libmfx --enable-libdc1394 --enable-libdrm --enable-libiec61883 --enable-chromaprint --enable-frei0r --enable-libx264 --enable-libplacebo --enable-librav1e --enable-shared libavutil 57. 28.100 / 57. 28.100 libavcodec 59. 37.100 / 59. 37.100 libavformat 59. 27.100 / 59. 27.100 libavdevice 59. 7.100 / 59. 7.100 libavfilter 8. 44.100 / 8. 44.100 libswscale 6. 7.100 / 6. 7.100 libswresample 4. 7.100 / 4. 7.100 libpostproc 56. 6.100 / 56. 6.100 Input £0, lavfi, from 'testsrc=size=1280x720:rate=25,format=yuv420p': Duration: N/A, start: 0.000000, bitrate: N/A Stream £0:0: Video: rawvideo (I420 / 0x30323449), yuv420p, 1280x720 ¡SAR 1:1 DAR 16:9¿, 25 tbr, 25 tbn Input £1, lavfi, from 'sine=frequency=1000:sample_rate=44100': Duration: N/A, start: 0.000000, bitrate: 705 kb/s Stream £1:0: Audio: pcm_s16le, 44100 Hz, mono, s16, 705 kb/s Stream mapping: Stream £0:0 (rawvideo) -> hwupload_cuda:default (graph 0) setsar:default (graph 0) -> Stream £0:0 (h264_nvenc) Stream £1:0 -> £0:1 (pcm_s16le (native) -> mp3 (libmp3lame)) Press ¡q¿ to stop, ¡?¿ for help ¡segment § 0x5ecc3f8e8e40¿ Opening 'test_0.ts' for writing Output £0, segment, to 'test_%d.ts': Metadata: encoder : Lavf59.27.100 Stream £0:0: Video: h264 (High), cuda(progressive), 640x360 ¡SAR 1:1 DAR 16:9¿, q=2-31, 464 kb/s, 25 fps, 90k tbn Metadata: encoder : Lavc59.37.100 h264_nvenc Side data: cpb: bitrate max/min/avg: 464000/0/464000 buffer size: 928000 vbv_delay: N/A Stream £0:1(eng): Audio: mp3, 44100 Hz, stereo, fltp, 192 kb/s Metadata: encoder : Lavc59.37.100 libmp3lame ¡segment § 0x5ecc3f8e8e40¿ Opening 'test.m3u8.tmp' for writing/A speed=3.17x ¡segment § 0x5ecc3f8e8e40¿ Opening 'test_1.ts' for writing ¡segment § 0x5ecc3f8e8e40¿ Opening 'test.m3u8.tmp' for writing/A speed=4.27x ¡segment § 0x5ecc3f8e8e40¿ Opening 'test_2.ts' for writing ¡segment § 0x5ecc3f8e8e40¿ Opening 'test.m3u8.tmp' for writing/A speed=4.66x ¡segment § 0x5ecc3f8e8e40¿ Opening 'test_3.ts' for writing ¡segment § 0x5ecc3f8e8e40¿ Opening 'test.m3u8.tmp' for writing/A speed=4.94x ¡segment § 0x5ecc3f8e8e40¿ Opening 'test_4.ts' for writing ¡segment § 0x5ecc3f8e8e40¿ Opening 'test.m3u8.tmp' for writing/A speed=5.08x ¡segment § 0x5ecc3f8e8e40¿ Opening 'test_5.ts' for writing ¡segment § 0x5ecc3f8e8e40¿ Opening 'test.m3u8.tmp' for writing frame= 380 fps=133 q=15.0 Lsize=N/A time=00:00:15.04 bitrate=N/A speed=5.26x video:263kB audio:342kB subtitle:0kB other streams:0kB global headers:0kB muxing overhead: unknown Exiting normally, received signal 2.
